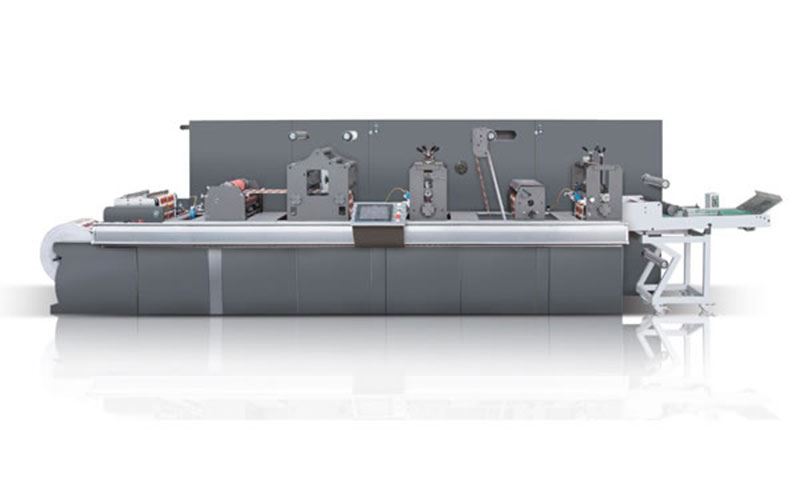

Rotary Semi-Rotary Label Die Cutting Machine, ZM-320
The rotary semi-rotary label die cutting machine employs the control system and servo system from famous company in Germany. The rotary label die cutter is composed of unwinder, deviation correcting unit, film laminator, registering device, die cutter, slitter, and rewinder.
Features
- Based on actual production demand, customer can choose rotary or semi-rotary die cutting mode, at will.
- For semi-rotary die cutting mode, the tension of the unwinder is the same with that of the deviation correcting system. Therefore, deviation can be fully eliminated during label conveying.
- Thanks to the magnetic roller for the rotary semi-rotary label die cutting machine, users only needs to change the flexible die cutter for the processing of different products.
- This label die cutting equipment is characterized by fast operating speed, high accuracy, simple operation, high efficiency, and low cost.
- User can switch the semi-rotary mode to rotary mode through the operation on the touch screen of the automatic label die cutting machine and install the related die cutting roller for rotary cutting, which greatly improves the label cutting quality and the working efficiency.
Specification
| Max. die cutting speed | 120m/min (Rotary) |
| 65m/min (Semi-rotary) | |
| Max. die cutting length | 190.5-539.75mm (Rotary) |
| 100-350mm (Semi-rotary) | |
| Max. die cutting width | 300mm |
| Max. web width | 320mm |
| Max. unwinder diameter | 700mm |
| Max. rewinder diameter | 600mm |
| Die cutting accuracy | ±0.1mm |
| Slitting width | 20-300mm |
| Power supply | 380V, 3-phase |
| Weight | 2400kg |
| Overall Dimension | 3200×1680×1660mm |
-
