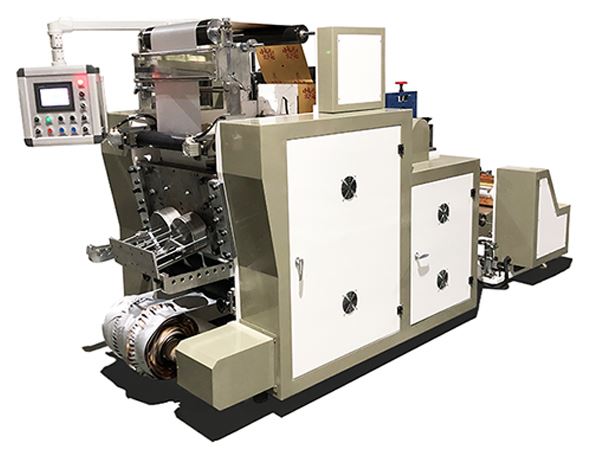

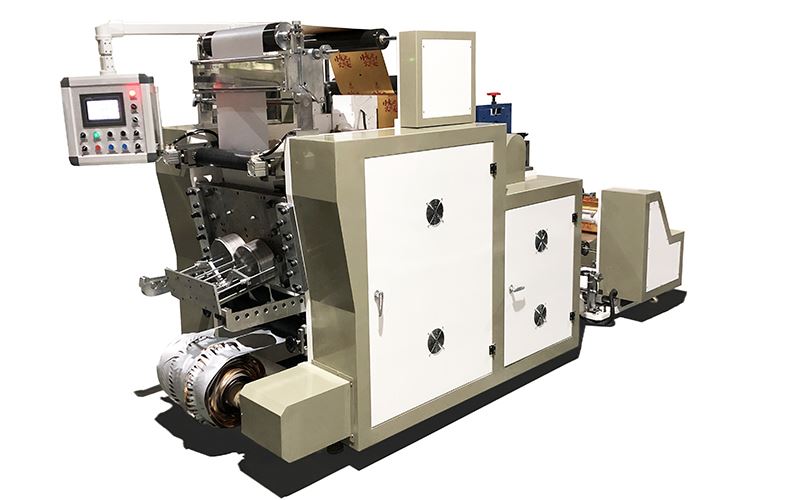

High Precision Aluminum Lids Die Cut Punching Machine (IML Puncher) MQGB-B

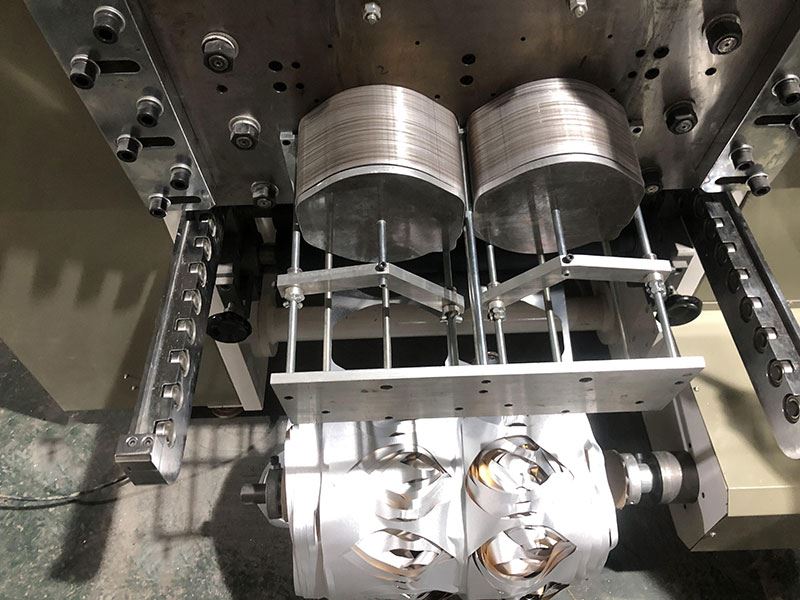

The high precision IML punching machine is designed for punching aluminum foil lids along with PE, PP, and PET laminated aluminum foil. Its punching mold is specially designed to minimize scrap and increase longevity.
Specification
| Model | MQCB-320B |
MQCB-620B |
| Cutting material | Aluminum foil, plastic film, paper (0.035~0.2mm) | |
| Cutting effective size | 350*300mm | 580*320mm |
| Mechanical speed | 180times/min | |
| Max speed | 150times/min | |
| Unwinding diameter | ¢600mm (3 inch air shaft) | |
| Traction motor | 0.75kw frequency convention motor | |
| Mold driven motor | 3.7kw frequency convention motor | |
| Length control motor | 3kw servo motor | |
| Driven style | synchronous belt | |
| Precision | ± 0.5mm | |
| Web-guiding accuracy | ± 0.5mm 120mm | |
| Guiding roller | ¢ 100x350mm hard AL alloy HV700 | ¢ 100x620mm hard AL alloy HV700 |
| Mechanical structure | 40mm thickness steel plate | |
| Working power | 380V/3P/50Hz 5 wires | |
| Total power | About 6kw | About 8kw |
| Machine weight | About 1500kg | About 2000kg |
| Overall dimension | 2000X1400X1700mm | 2400X1700X1700mm |
-
