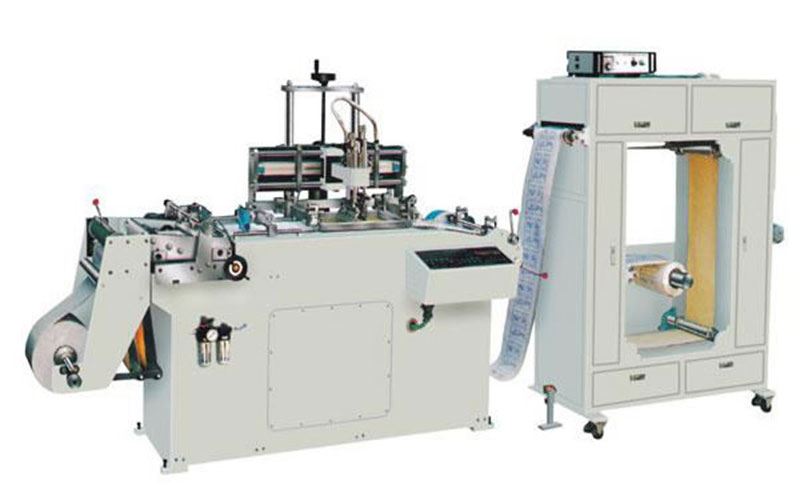

Reel Type Silk Screen Printing Machine, WQ-320
This is a reel type silk screen printing machine, material goes in rolls, and machine with inline dyer.
Features
- Material feeding is controlled by CNC servo motor
- Main drive parts adopt pneumatic device
- The web-guiding is tracked by photoelectric tracking system
- This kind of label printing converting machinery is characterized with high accurate color registering, steady material-feeding, automatic counting and alarming, convenient adjusting etc.
Application
This machine is extensively used for printing, drying and rewinding reel materials, such as PVC, OPP, Dacron, anti-sake label, adhesive tape, etc.
Specification
| Printing speed: | 10-50t/min |
| Max.unwinding diameter: | 450mm |
| Max.web width : | 320mm |
| Max. die-cutting width: | 300mm |
| Max. die-cutting length: | 320mm |
| Positioning accuracy: | ±0.15mm |
| Main motor power : | 1200w |
| Oven power: | 4100w |
| Main machine size: | 2.4(L)x0.95(W)x1.5(H)(m) |
| Oven size: | 1.75(L)x0.6(W)x1.8(H)(m) |
| Machine weight: | about1100kg |
-
