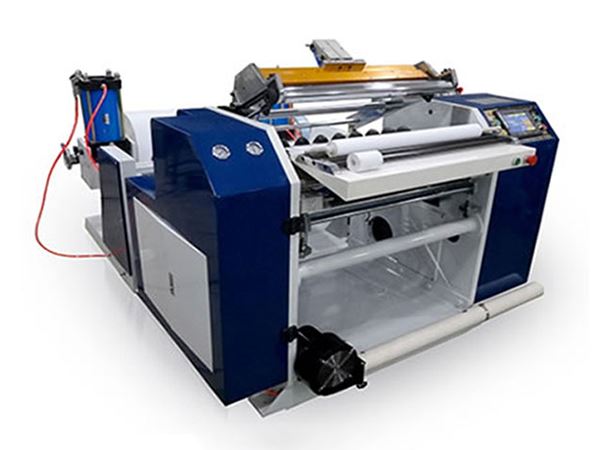

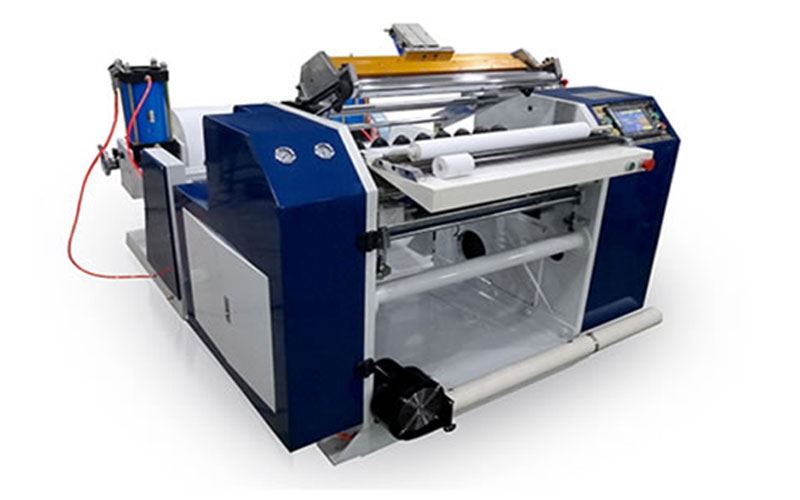

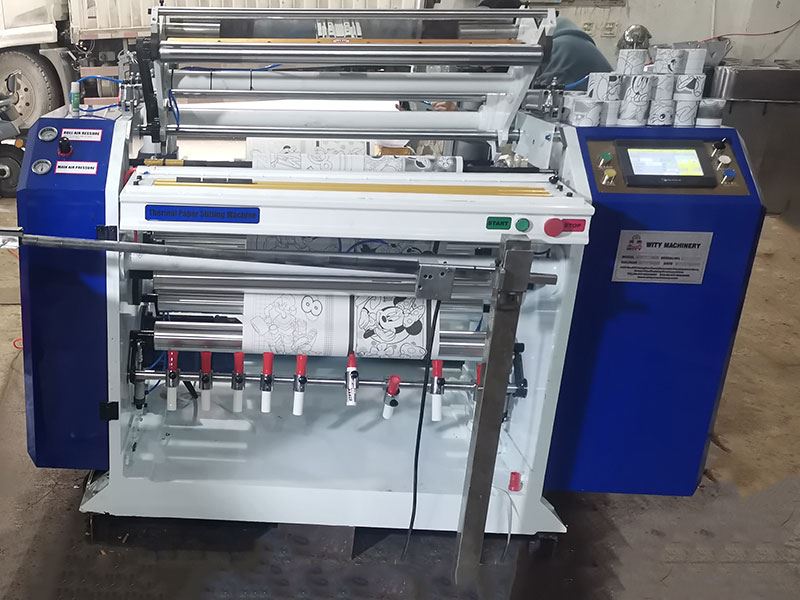

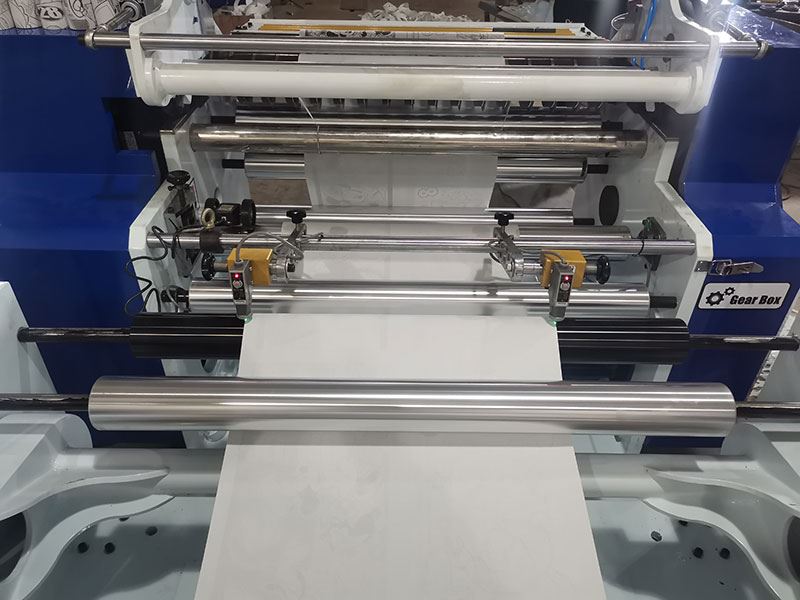

Automatic Thermal Paper Slitting Machine
The automatic heat sensitive paper slitting machine is suitable for slitting fax paper, cash register paper, computer paper, paper medical records, lottery rolls, POS paper, ATM paper roll, film and adhesive tape, etc.
Features
- The paper slitting equipment comes with an automatic paper folding and inserting system.
- A touch screen PLC control system is utilized for control of its electrical components.
- Automatic unwinding and automatic tension control can be achieved through programming.
- This slitting machine is equipped with a printing system, use ink (red, blue) for mark.
Specification
| Model | HJG-1400A |
| Max. unwinding diameter | φ1000mm |
| Paper core diameter | φ76mm (3″) |
| Slitting width | 57 65 75 80…. |
| Max. rewinding diameter | φ160mm |
| Max. Slitting speed | 160m/min |
| Total power | 5.5kw |
| Overall dimensions (L×W×H) | 2500mm×2400mm×1400mm |
| Weight | About 1800 Kw |
| Frequency control | Delta brand |
| Low voltage electrical apparatus | Schneider brand |
| 5.7 inch colorful touch screen PLC control | Delta brand |
| Power switch 30 kw | Delta brand |
| Total 19 knives | |
| Rewinding roller 3 sets | |
| Main machine body use Automobile paint | |
-
