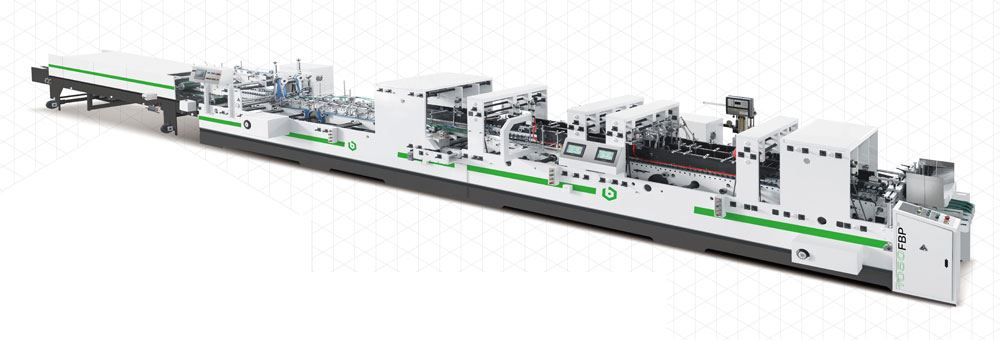

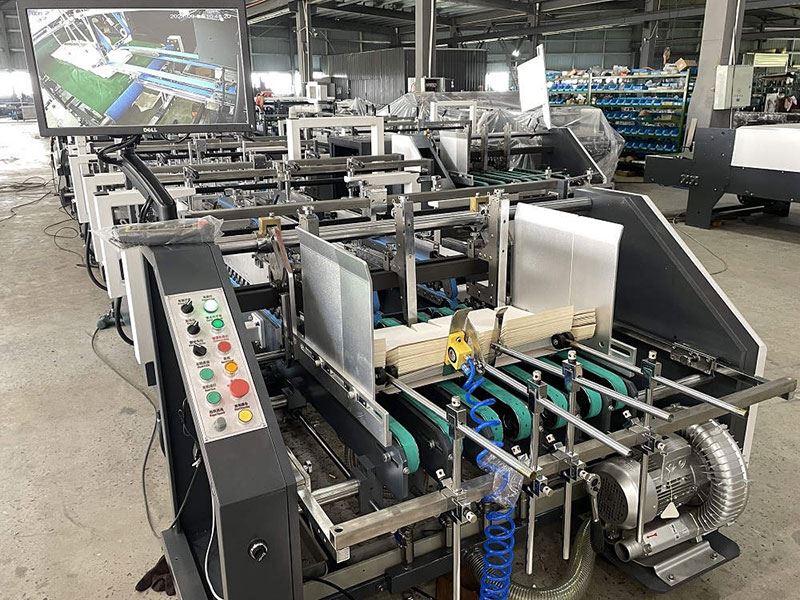

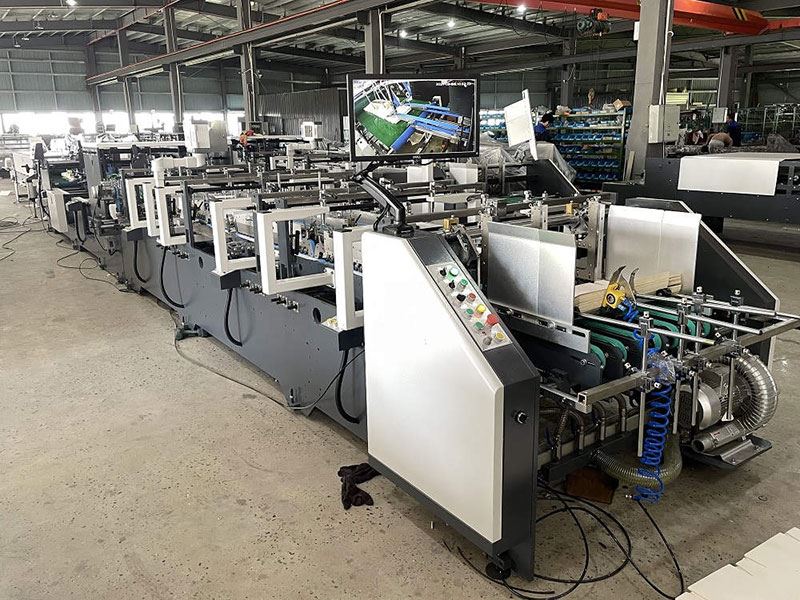

High Speed Carton Box Folding and Gluing Machine (with Glue Spraying System) HZH-FBP

Features of High Speed Carton Box Folding and Gluing Machine:
1. The frame base is made of integrated steel plate for good rigidity
2. Compact in structure and convenient to operate
3. High production efficiency (maximum speed of 200m/min), reliable products
4. Import circle arc tooth synchronous belt to ensure stable transmission, low noise and long service life
5. This kind of packaging machine can be used for cartons of various shapes and sizes

Technical Specification of High Speed Carton Box Folding and Gluing Machine:
Model HZH580FBP HZH780FBP HZH980FB) HZH1100FBP HZH1380FBP
Material Cardboard250~600gsm Cardboard 250~600gsm or E flute corrugated board
Max linear speed 240m/min 200m/min 200m/min 200m/min 200m/min
Cataplasm (glue) Water-based cold glue
Power supply 380V 3P 50Hz 380V 3P 50Hz 380V 3P 50Hz 380V 3P 50Hz 380V 3P 50Hz
Main motor power 7.5KW 7.5KW 11KW 11KW 11KW
Total power 9.6KW 10.6KW 14.1KW 14.1KW 14.1KW
Overall dimension 11×1.3×1.7m 11×1.3×1.7m 14×1.3×1.9m 14×1.3×1.9m 14×1.6×2.1m
Weight 4500kg 5000kg 6500kg 7000kg 7500kg
Carton Specifications:
1) Normal side gluing carton
Position HZH580 HZH780 HZH980 HZH1100 HZH1380
A MAX 580 780 980 1100 1380
MIN 80 160 160 180 180
B MAX 580 780 980 1100 1380
MIN 70 100 100 120 120
C MAX 290 390 490 550 690
MIN 40 80 80 90 90
D MAX 580 780 980 1100 1380
MIN 80 160 160 180 180
E MIN 10 15 20 20 20
F MIN 7 10 10 10 10
2) Crash bottom carton
Position HZH580 HZH780 HZH980 HZH1100 HZH1380
A MAX 520 700 900 1000 1250
MIN 160 200 220 220 220
B MAX 580 780 980 1100 1380
MIN 100 150 200 200 200
C MAX 260 350 450 500 625
MIN 80 100 110 110 110
D MAX 580 780 980 1100 1380
MIN 80 160 160 180 180
E MAX
MIN 22 25 25 25 25
F MAX Refer to E Refer to E Refer to E Refer to E Refer to E
MIN 7 10 10 10 10
G MIN Refer to E Refer to E Refer to E Refer to E Refer to E
3) Double sides gluing carton
Position HZH580 HZH780 HZH980 HZH1100 HZH1380
A MAX 580 780 980 1100 1380
MIN 80 140 160 180 200
B MAX 580 780 980 1100 1380
MIN 120 160 160 160 160
C MAX 380 480 780 780 880
MIN 120 160 160 160 200
4) 6-corner carton specification:
A B C D E
1100 Max 1100(mm) 100(mm) 500(mm) 900(mm) 640mm
Min 420(mm) 40(mm) 100(mm) 180(mm) 100(mm)
980 Max 980(mm) 100(mm) 450(mm) 780(mm) 540(mm)
Min 420(mm) 40(mm) 100(mm) 180(mm) 100(mm)
780 Max 780(mm) 100(mm) 330(mm) 580(mm) 450(mm)
Min 420(mm) 40(mm) 100(mm) 180(mm) 100(mm)
5) 4-corner carton specification
A B C D E
1100 Max 1100(mm) 100(mm) 980(mm) 980(mm) 900(mm)
Min 180(mm) 40(mm) 40(mm) 100(mm) 180(mm)
980 Max 980(mm) 100(mm) 780(mm) 780(mm) 700(mm)
Min 180(mm) 40(mm) 100(mm) 180(mm) 100(mm)
780 Max 780(mm) 100(mm) 580(mm) 580(mm) 500(mm)
Min 180(mm) 40(mm) 100(mm) 180(mm) 100(mm)
