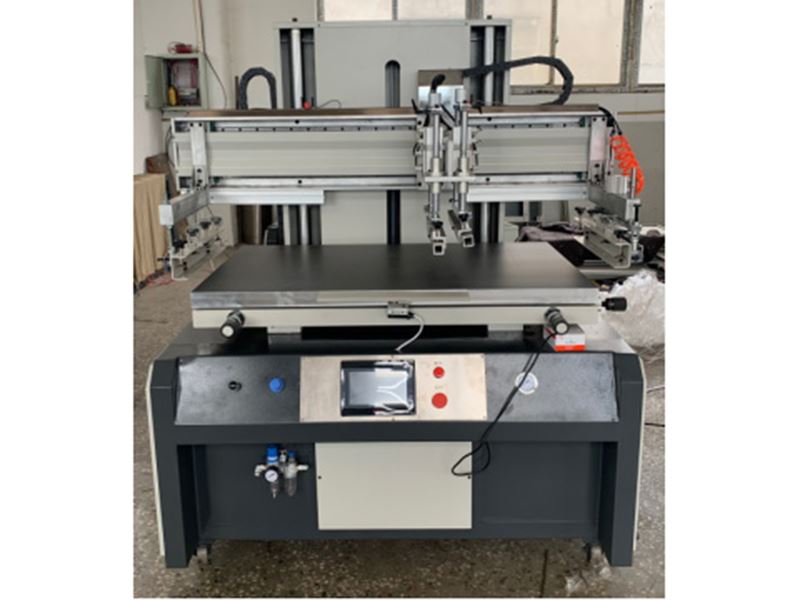

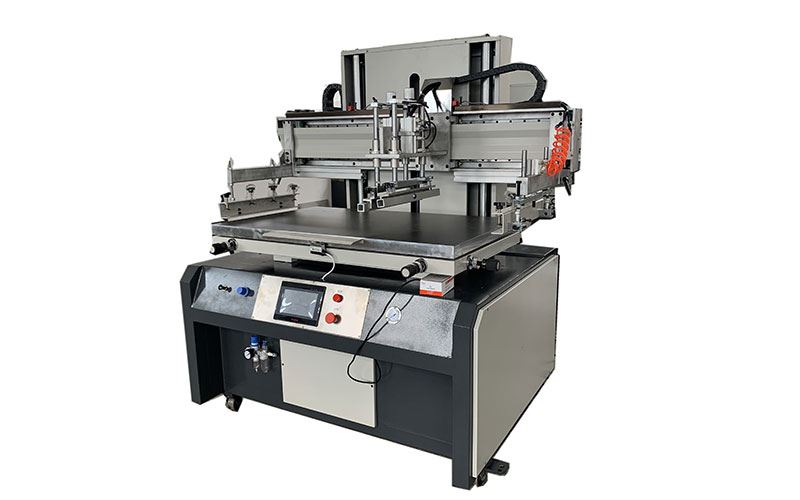

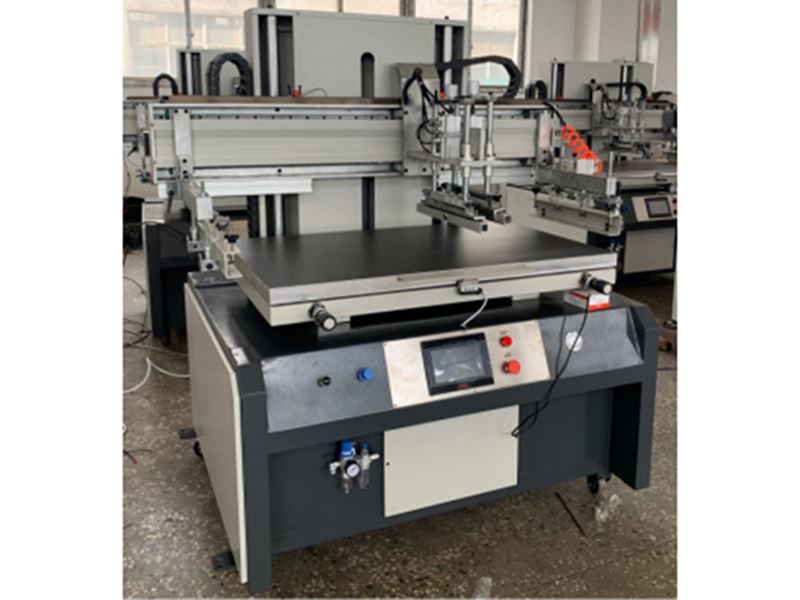

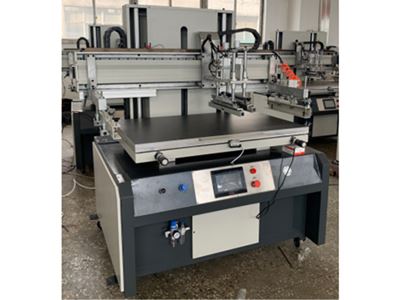

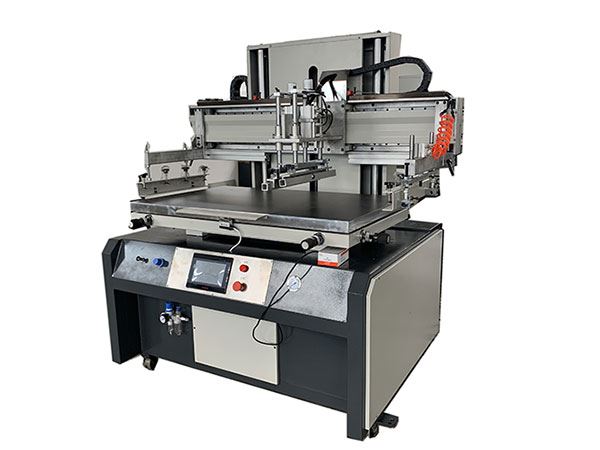

Vertical Screen Printing Machine, WPKH
The WPKH series of vertical screen printing machine has its screen printing plate lifted up and down vertically, with independent mechanical transmission. The printing units of the machine are moved horizontally as right and left. With servo control and stepless speed regulation, our vertical screen printing machine has stable and reliable performance. Also, the vertical screen printing machine boasts honeycombed aluminum-alloy stainless steel working table, vacuum absorption, microadjustment, control by advanced computer and precision linear guide track as the motion guide.
Specification
| Model and Size | WPKH-6040 |
WPKH-9060 |
WPKH-12070 |
WPKH-16080 |
WPKH-180100 |
WPKH-240120 |
| Max printing area(mm) | 600×400 | 900×600 | 1200×7000 | 1600×800 | 1800×1000 | 2400×1200 |
| Max printing speed(p/h) | 1000 | 900 | 750 | 600 | 500 | 240 |
| Table size(mm) | 800×500 | 1100×700 | 1400×800 | 1800×900 | 2000×1100 | 2600×1300 |
| Table adjustment of longitudinal and horizontal | ±5mm | ±5mm | ±10mm | ±10mm | ±10mm | ±10mm |
| Air pressure(Mpa) | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 |
| Power(KW) | 3.5 | 3.5 | 4.0 | 4.0 | 5.0 | 8.0 |
-
