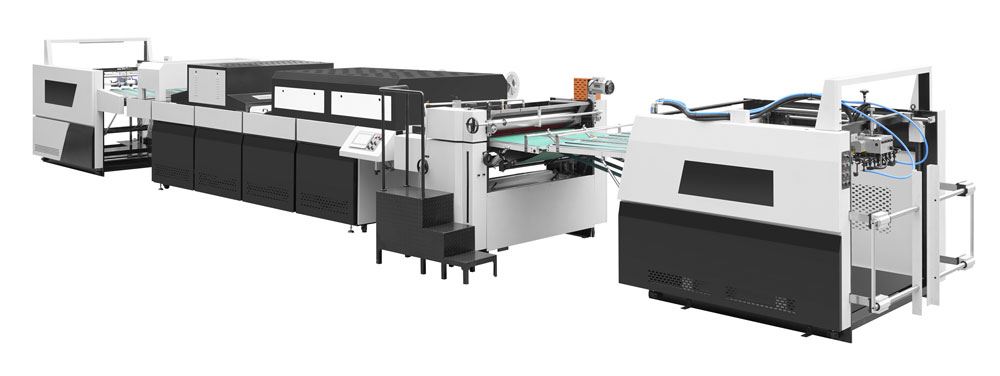

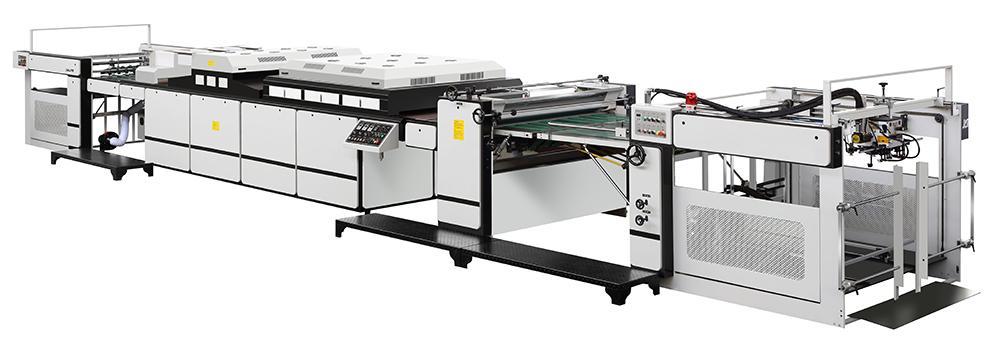

Automatic Paper UV Varnishing Machine, SE-1200 (UV Coating Machine)
The automatic UV varnishing machine is an equipment for paper glazing and UV coating on the surface of paper, which is suitable for glazing and laquer coating on all kinds of thick or thin paper (80-600gsm).
Features
- The machine is an equipment for paper surface UV varnishing, of the range of 80-600g/m2.
- Pneumatic control is adopted on both ascend & descend mechanism and relief mechanism of this machine.
- This machine is also provided with a computerized paper blowing system, a paper-feeder with strong absorption and a scraper's left right moving system.
- The machine has its characters of attractive appearance, dependable performance, easy and simple operation, and highly automatic.
Working process
Paper automatic feeding, Water base/UVoil varnishing, IR/UV drying, automatic collecting.
Standard Equipment
- Pre-staking unit
- Automatic paper feeder

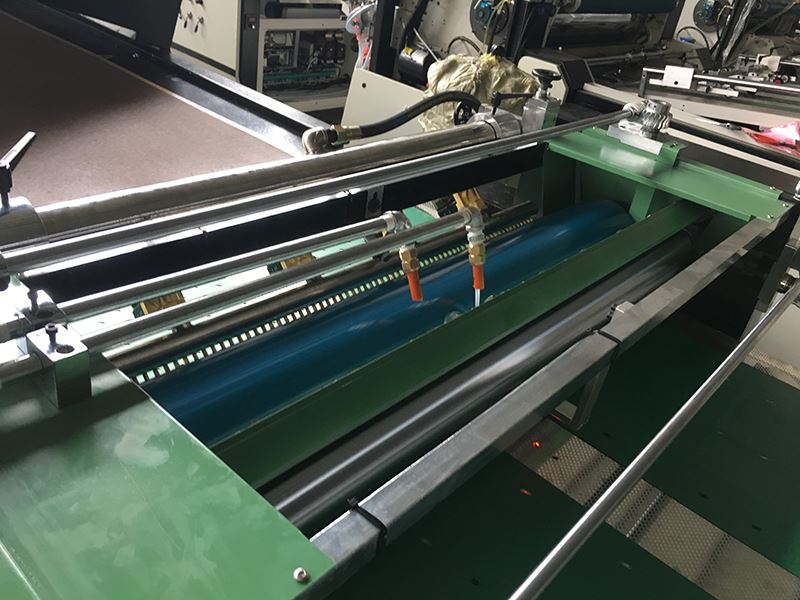

- Coating system

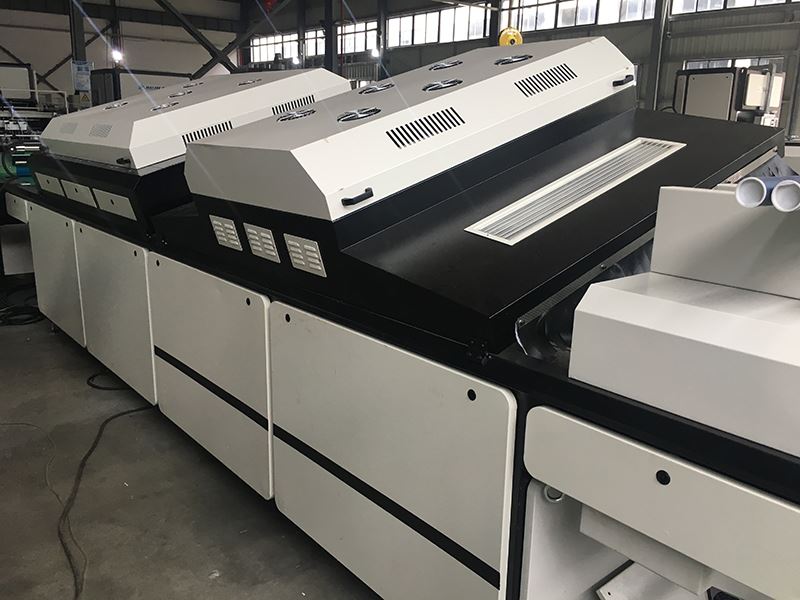

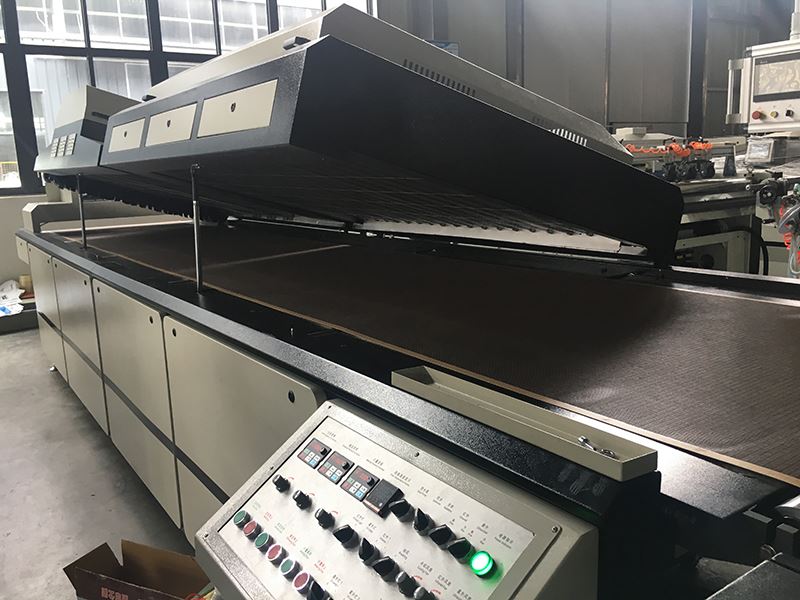

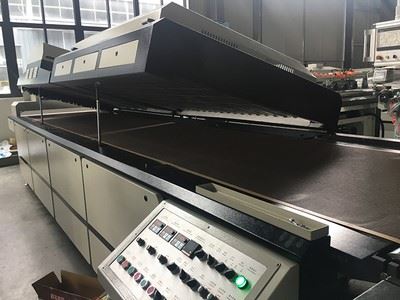

- IR drying and UV drying system
- Cooling fans
- Automatic paper collector
Specification
| Model | SE-1200 |
| Length of roller | 1250mm |
| Suitable paper thickness | 80-500 g/m2 |
| Max paper size | 1150x900mm |
| Power | 380V/3P/50Hz |
| Total power | 70KW |
| Infrared heating power | 22KW |
| Ultraviolet heating power | 3×8Kwor2×8Kw |
| Overall dimension | 11800×2000×1800mm |
| Machine weight | 4500Kg |
-
