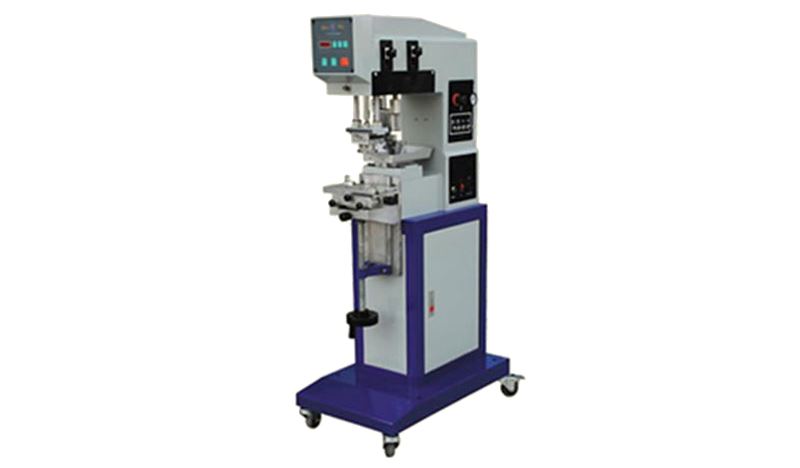

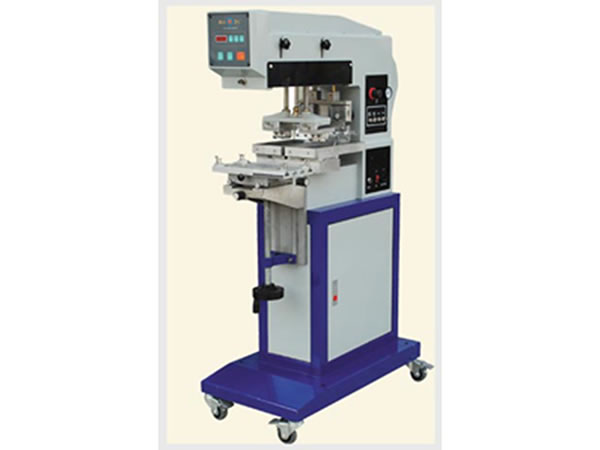

Pneumatic Pad Printing Machine
The pneumatic pad printing machine is suitable for printing on small objects like stationery, gifts, toys, etc.
Features
- With a microcomputer control system, the pneumatic pad printing machine is easy for operation.
- 4-digit auto-counter is available.
- The machine frame is made using high quality aluminium alloy, which ensures light weight and high strength.
- The printing roller can be easily inked and is easy for assembly and disassembly as well as cleaning.
- The pneumatic pad printing machine comes with an independent gluing speed adjustment system.
- Automatic balance of ink scraper.
Specification
| Model | SYD-125-100 |
SYD2-125-100 |
| Color | One color | Two color |
| Air cylinder vertical travel | 80mm | |
| Air cylinder horizontal travel | 125mm | |
| Steel plate size | 100x75mm; 100x100mm | 100x75mm; 100x100mm |
| Workbench area | 115x200mm | |
| Max printing height | 150mm | |
| Max print diameter | 90mm | |
| Max printing speed | 1300pcs/hour | |
| Air consumption | 52L/min | 130L/min |
| Power | 220v/50Hz 50w | 220v/50Hz 50w |
| Overall dimension | 650x400x1220mm | 650x400x1220mm |
-
