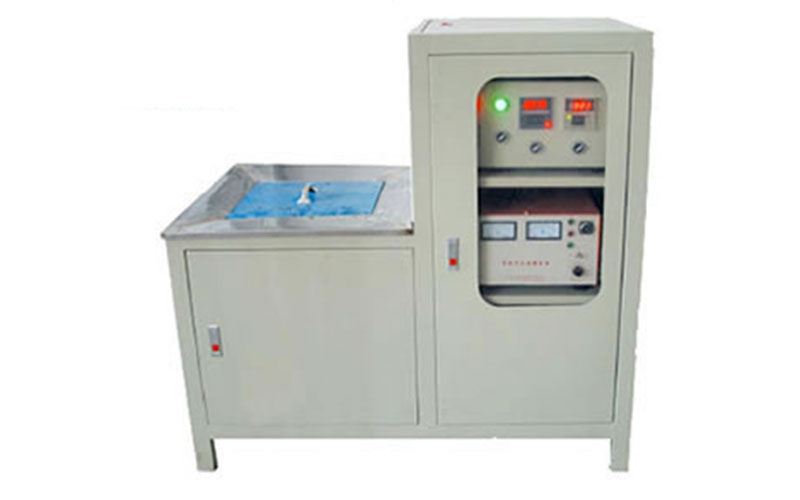

Holographic Nickel Plate Electrotyping Machine, Q/CKLJ-500
This is a plate making machine that makes working plate copies for hologram embossing from original master plate. Mount the original master plate onto the plate rack and put into electrotyping tank with chemicals for copying the working plate. Set up the copying time and current according to the master plate size.
Specification
| Product model | 500mm |
| Input voltage | AC220V |
| Rated power | 3KW |
| Working current | DC200A |
| Working voltage | 15V |
| Cathode area | 300*400mm |
| Plating bath cubage | 80L |
| Plating bath temperature | 38℃~45℃ |
| Amper hour set | 0-999.9amperhour |
| Pool overall size | 700*700*600mm |
| Overall size of control tank | 600*550*900L |
| Weight | 150KG |
-
-
