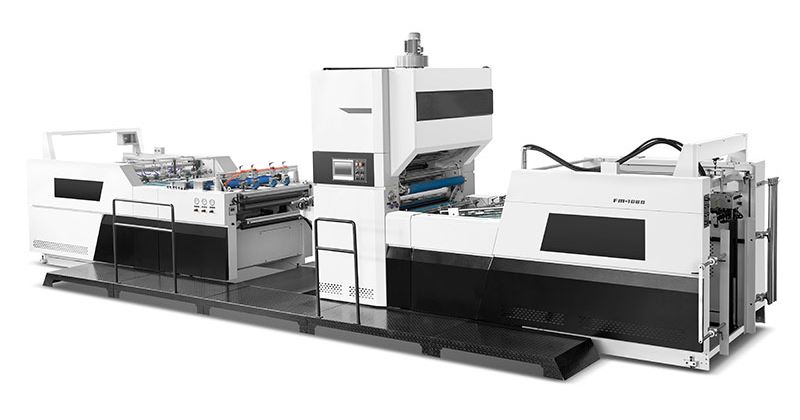

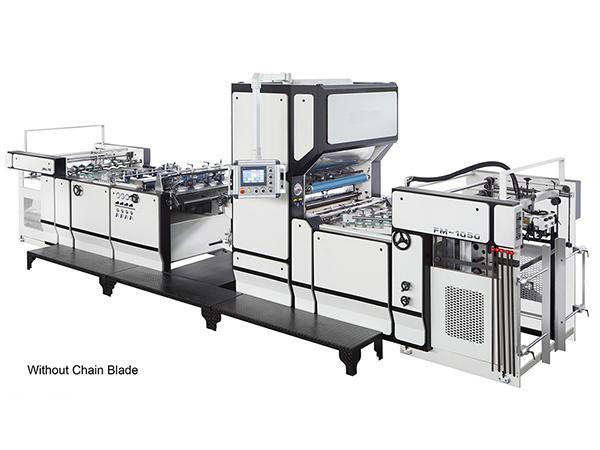

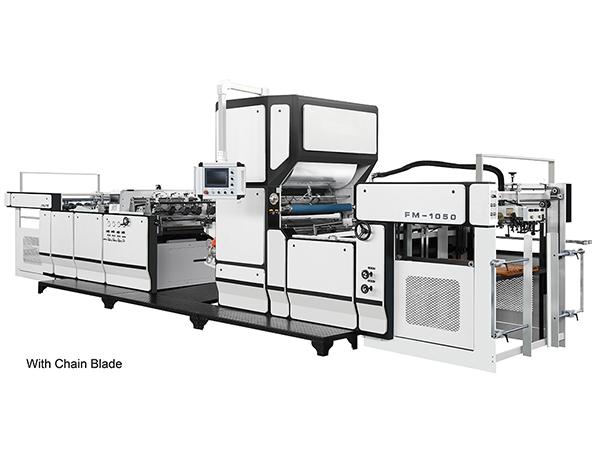

Automatic Thermo Film Laminating Machine, FM1050E
FM-E Series Laminating Machine can do thermal laminating and water based glue laminating. It has the featuresof compact structure, stable running, high precision, convenient operation and maintenance. It is a multi-function machine suitable for water base glue, solvent base glue, thermal film and gluless film lamination. It can be used for postcard, poster, magazine, book, color box, paper bag, etc.
Features

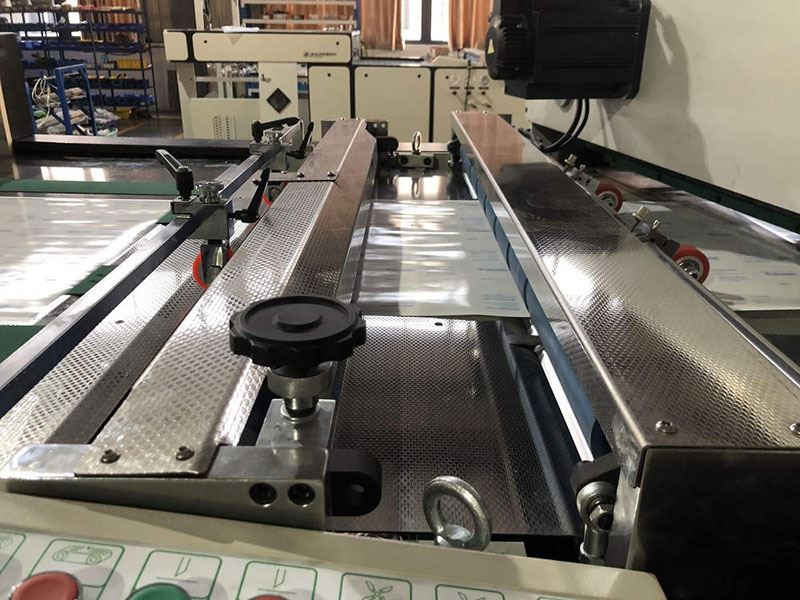

- High speed feeder ensures stable and accurate sheet feeding and easy operation.
- Non-stop feeding and stacking greatly shortens preparation time.
- Overlap unit controlled by servomotor ensures accuracy.

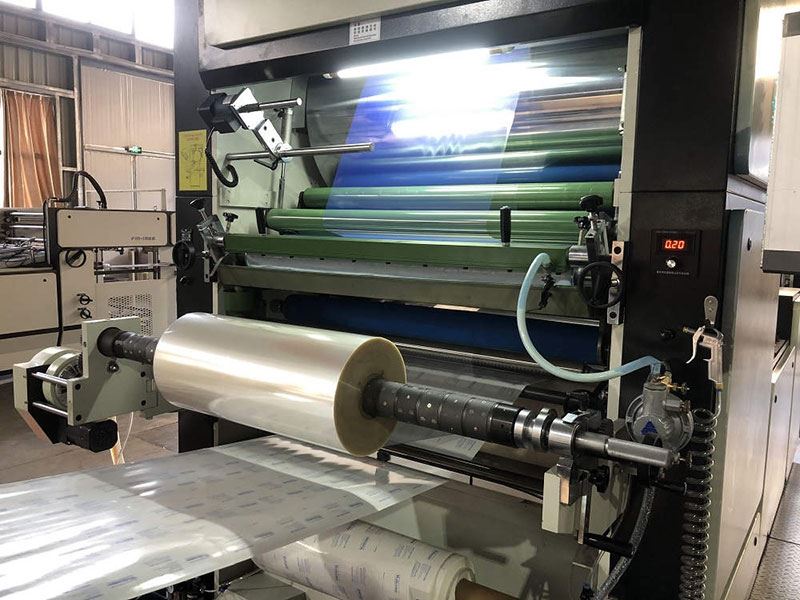

- Chromed high brightness coupling rollers to coat evenly and economically.
- Strong heated air drying system for rapid and efficient drying.
- Anti-curl unit suitable for thin paper laminating treatment.
- Heating steel roller adopt electromagnetic heating system, rapid heating, energy saving and environmental protection.
- Touch screen control makes operation more convenient.
- Elegant and unique appearance designed by professional industrial design company.
Specification
| Model | FM-1050E |
FM-1050E with powder cleaner |
| Max.sheet size | 1050×1050mm | 1050×1050mm |
| Min.sheet size | 390×320mm | 390×320mm |
| Paper weight | 100-500gsm | 100-500gsm |
| Speed | 10-80m/min（according to the material, printing color and printing area） | 10-80m/min（according to the material, printing color and printing area） |
| Total power | 70kw | 75kw |
| Machine dimension | 8400*2200*2600mm | 10200*2200*2600mm |
| Machine weight | 8000kg | 8500kg |
-
Spot UV Varnishing Machine (Offset Type)
- Spot UV Varnishing Machine, SGZJ1200
-
Film Laminating Machine
- Multi-functional Vertical Type Laminating Machine (Film Laminator)
- Hydraulic Thermal Laminator (with Slitting) QLFM-Y
- Automatic Thermo Film Laminating Machine, FM1050E
- Automatic Multi-functional Vertical Laminating Machine with Hot Knife Cutting, FM-H
- Automatic Thermal Film Laminating Machine, FY1050B (Thermal Laminator)
-
Carton Laminating Machine

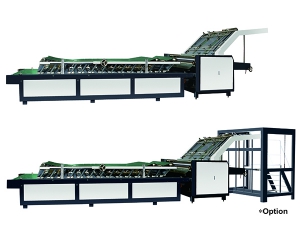

- Semi-automatic Carton Laminating Machine FMT-1300/1450 (Flute Laminator)
