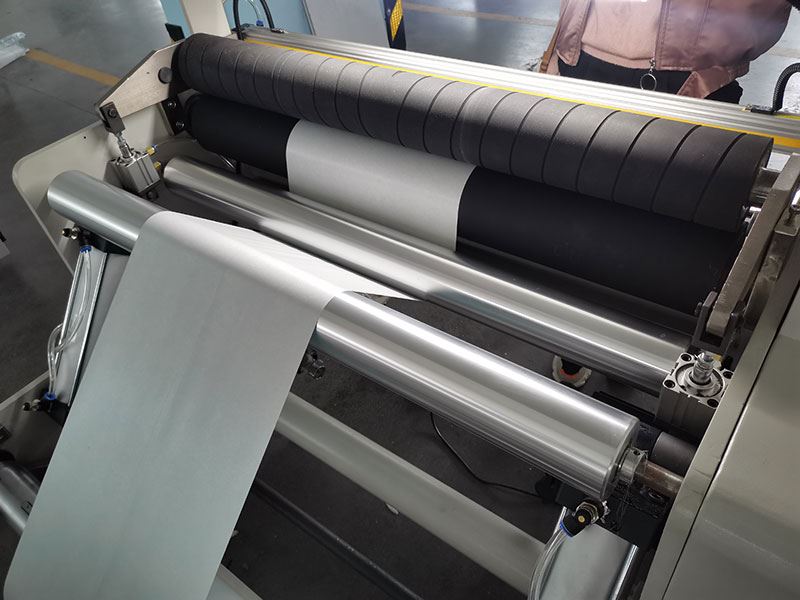

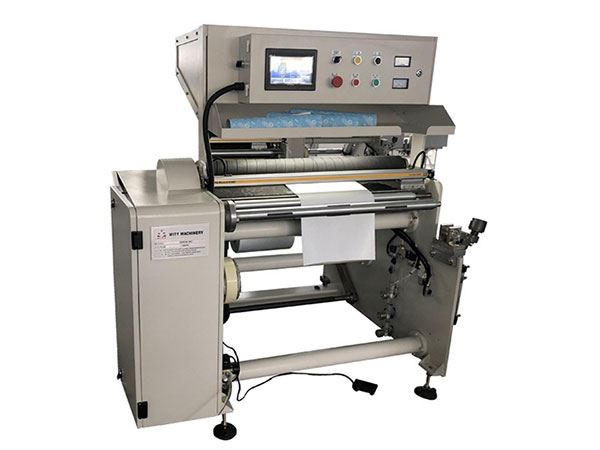

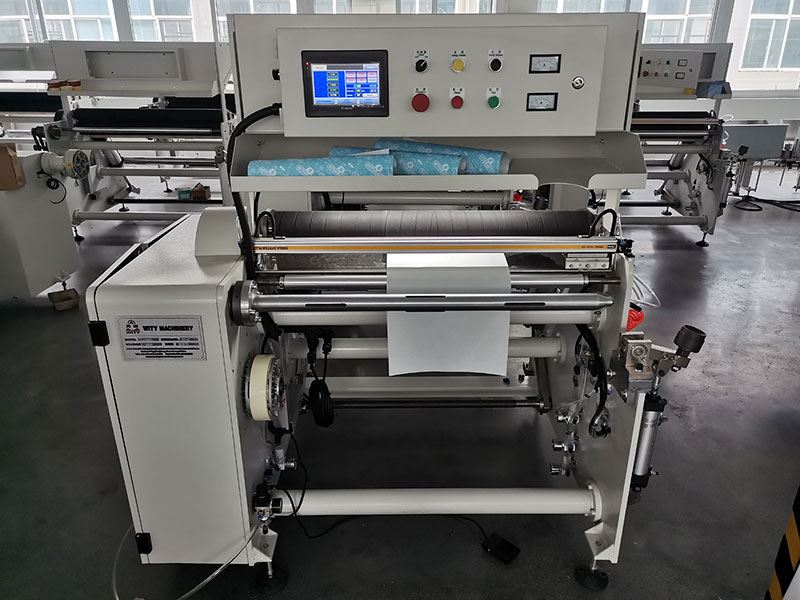

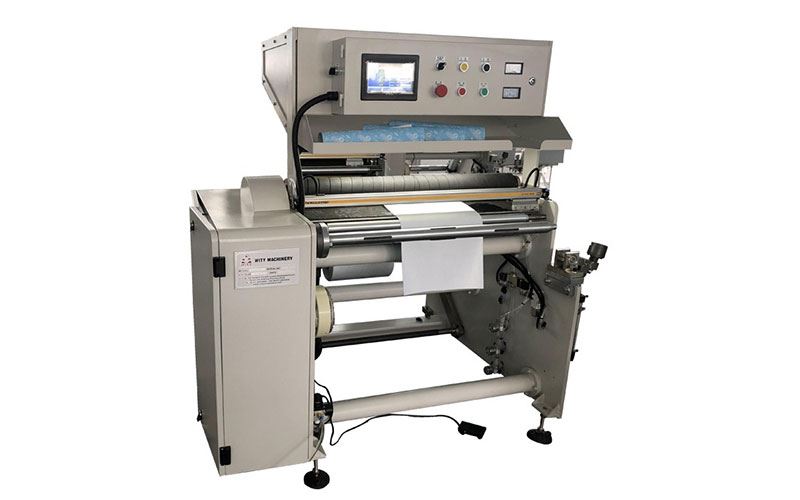

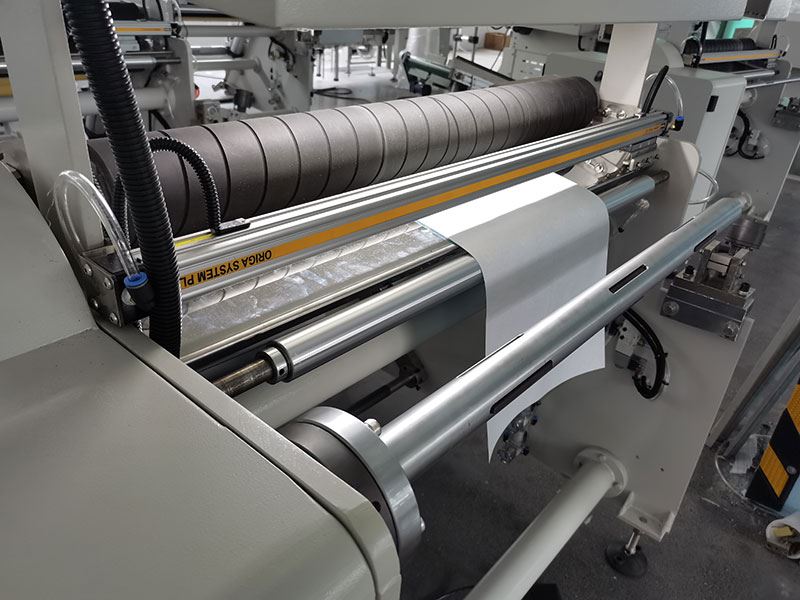

Paper Roll Rewinding Machine, FJ-J
The paper roll rewinding machine is specially offered for cutting and winding paper and film. It is particularly suitable for hard core paper, soft core paper, non-core paper, as well as the small roll paper, such as gift roll paper, advertisement paper, wall paper, and some others.
- FJ800C/1050C/1250C rewinding machine is specialized in rewinding all kinds of paper, OPP film, holographic film, Bopp film, non-woven, aluminum laminated films to small roll. Such as gift paper, self-adhesive, table covers, wallpaper.
- Final roll can be with hard paper core and soft core or coreless.
- PLC controlled, HMI and imported servo motor for length setting, automatic tension control, machine is easy to operate.
- Finished roll wrapping machine is also available.
|Max. Rewinding diameter||150mm|
|Unwinding airshaft diameter||3”|
|Max. Machine Speed||160m/min|
|Rewinding Speed||If final length is 5m with paper core, the max speed is 9 rolls/min (Coreless and soft core ,speed will be faster) , It’s according to the material and worker’s speed). If you produce with coreless and soft paper core，you don’t need change any parts of machine。|
|Supply Power||3 Phase 380v 50HZ 5KW ( Can be customized)|
