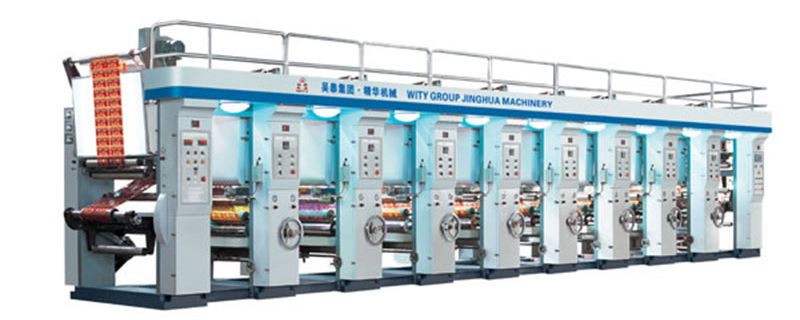

Economical Type Auto Register Rotoravure Printing Press, YAD-H
Economical Type Auto Register Rotoravure Printing Press, YAD-H with stable tension, accurate register and high economy, this printing machine is widely used for multi-color printing of various roll materials, like plastic films and paper sheets.
Features
- Computerized auto register
- Auto tension
- Shaftless imposition
- Swing-arm type double-cylinder embossing
- Double-work station for unwinding and rewinding
- Double-cylinder horizontal movement type printing ink scraper
- Main machine adopts converter for speed adjusting
Note: Two-motor, three-motor tension synchronous control system, obverse and inverse double-side computerized register mechanism and inspection unit etc. are available on request
Specification
| Model | YAD-8800H | YAD-81100H |
| Max. printing width | 800mm | 1100mm |
| Paper core diameter | 76mm | 76mm |
| Unwinding roller diameter | 600mm | 600mm |
| Printing cylinder diameter | 110-300mm | 110-300mm |
| Color register precision | ±0.15mm | ±0.15mm |
| Max. working speed | 60-100m/min | 60-100m/min |
| Overall dimension | 13500×2150×2850mm | 13500×2450×2850mm |
| Total power | 100kW | 115kW |
-
-
Gravure Printing Machine
- Automatic Register Rotogravure Printing Machine (Rotogravure Press), YAD-A5
- Automatic Color Register Rotogravure Printing Machine, YAD-A2
- Auto Color Register Rotogravure Machine (Rotogravure Printer), YAD-A3
- Economical Type Auto Register Rotoravure Printing Press, YAD-H
- Auto Register Rotogravure Printing Machine, YAD-K3
- Electronic Shaft Rotogravure Printing Machine
-
Gravure Printing Machine
-
Dry Type Laminating Machine
- High Speed Dry Type Laminating Machine, GF-B
- High Speed Dry Type Laminator, GF-A

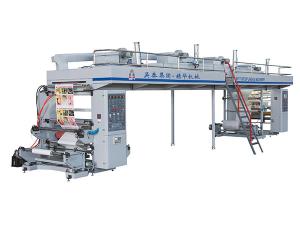

- Dry Type Laminating Machine, GF-Q
