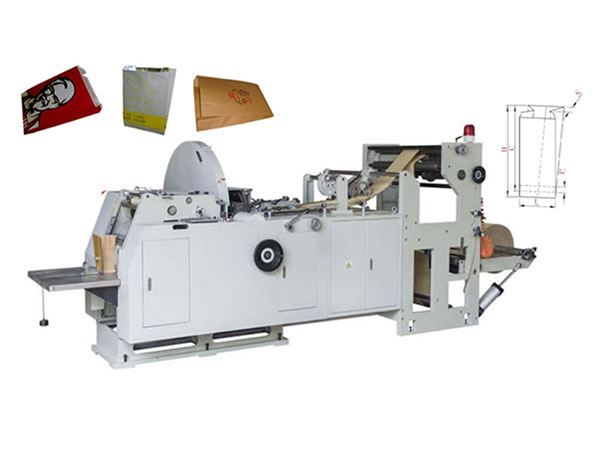

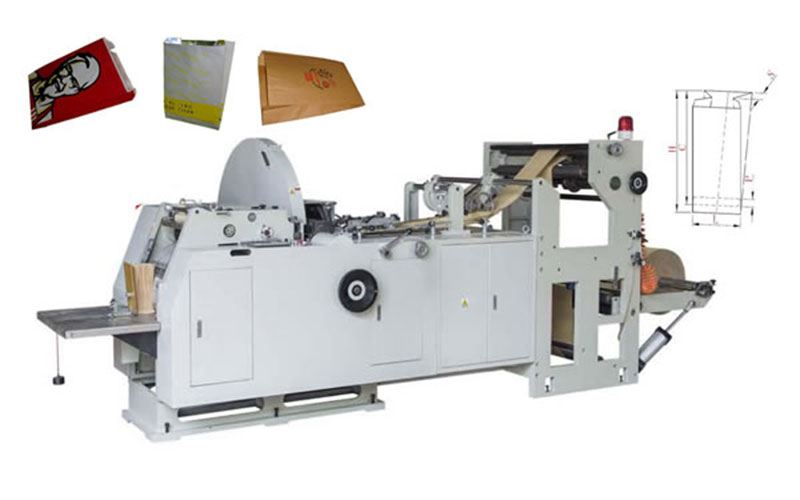

Automatic Food Paper Bag Making Machine
This automatic food paper bag making machine can make paper bags at a stroke, from roll paper folding, through tube forming, cutting, gluing, bottom folding, bottom gluing to final paper bag making. It features easy operation, low power consumption and high working efficiency. It is ideal for producing food bags like bread bags, KFC bags and Mcdonald's bags.
Features
- Suitable for making food bags using 30-80gsm paper.
- With a man-machine touch screen interface, the automatic food paper bag making machine can control bag length easily.
- PLC programmable servo motor control system.
- Equipped with an accurate photocell system for printed mark tracking.
- Color mark error stopping system is available.
- Automatic oil lubrication system is available.
Specification
| Model | LMD-400 |
| Cutting length | 150-400mm |
| Bag length | 140-390mm |
| Bag width | 80-250mm |
| Gusset depth | 10-50mm |
| Standard flap | 12-17mm |
| Speed | 100-300pcs/min |
| Paper thickness | 30-80gsm |
| Power | 6kw |
| Total weight | 3500kg |
| Overall dimensions | 4400×1650×1850mm |
-
Spot UV Varnishing Machine (Offset Type)
- Spot UV Varnishing Machine, SGZJ1200
-
Film Laminating Machine
- Multi-functional Vertical Type Laminating Machine (Film Laminator)
- Hydraulic Thermal Laminator (with Slitting) QLFM-Y
- Automatic Thermo Film Laminating Machine, FM1050E
- Automatic Multi-functional Vertical Laminating Machine with Hot Knife Cutting, FM-H
- Automatic Thermal Film Laminating Machine, FY1050B (Thermal Laminator)
-
Carton Laminating Machine
- Semi-automatic Carton Laminating Machine FMT-1300/1450 (Flute Laminator)
- High Speed Automatic Carton Laminating Machine FMZ-1450/1700 (Flute Laminator)
-
A4 Photocopy Paper Machinery
- A4 Photocopy Paper Wrapping Machine DTDP
- A4 Copy Paper Cross Cutting & Wrapping Machine, DTCP-A4
- DTCP-A4-5 Paper Sheet Cutting & Wrapping Machine
-
Paper Cup Forming Machine
- Automatic Paper Cup Forming Machine, JBZ
- High Speed Paper Cup Forming Machine, JBZ-122D
- Middle Speed Paper Cup Forming Machine, JBZ22D
- Paper Plate Forming Machine (High Speed Automatic Type), ZDJ-300K
- Reel Paper Die-cutting Machine (Paper Cup Punching Machine)
- Paper Cup Sleeve Forming Machine, JBZ-BG
- Plastic Lids Making Machine, HLD-450Z
-
Guillotine Paper Cutting Machine
- Programmable Paper Cutting Machine (Paper Cutter)
- Programmable Paper Cutting Machine (10 Inch Touch Screen)
- Paper Stack Lifter
- Paper Unloader
-
Sheet Cutting Machine
- Rotary Sheet Cutting Machine
- Computerized Sheet Cutting Machine (with Mark Tracking Unit), HQD-1100CS-3
- Peeling Rewinding Machine, DBL-1200
- Double Spiral Knives Sheeter (Twin Rotary Sheeting Machine)
-
Carton Box Folding and Gluing Machine
- Carton Box Erecting Machine (Lunch Box Forming Machine)
- Automatic Pre-fold and Lock Bottom Folder Gluer, SHH800AG
- High Speed Carton Box Folding and Gluing Machine, HZH-FB
- High Speed Carton Box Folding and Gluing Machine (4&6 Corners Boxes Folder Gluer), HZH-FBP
-
Paper Handbag Making Machine
- Paper Bag Making Machine (Sheet Feeding), ZB960C-330
- Paper Bag Making Machine (Sheet Feeding), ZB1200C-430
- Paper Bag Forming Machine (Sheet Feeding), ZB1100A
- Paper Bag Bottom Gluing Machine, ZB50B
- Paper Bag Forming Machine (Sheet Feeding), ZB1300B
- Paper Bag Forming Machine (Sheet Feeding), ZB1300B-1
-
Die Cutting and Creasing Machine
- Manual Fed Creasing and Die Cutting Machine (Die Cutter), ML750/930/1100/1300
- Manual Fed Hot Stamping and Die Cutting Machine
- Heavy-Duty Manual Fed Creasing & Die Cutting Machine (Die Cutter)
- Automatic Foil Stamping Machine
- Automatic Flatbed Die Cutting Machine with Stripping (Die Cutter)
-
Screen Printing Machine
- Manual Screen Printing Machine, WPKB
- Full Automatic Oval Screen Printing Machine, WTKY
- Reel Type Silk Screen Printing Machine, WQ-320
- Pneumatic Pad Printing Machine
- Vertical Screen Printing Machine, WPKH
- UV Curing Machine, WPF-UV700
-
Envelope Making Machine
- Automatic Envelope Making Machine, ZF-280C
- Express Post Envelope Making Machine, ZF380
- Automatic Envelope Making Machine (Pocket) , ZF490B
- Automatic Big Size Envelope (Pocket) Making Machine ZF-780
- Automatic Envelope Flap Gluing Machine TJ280
- Auto Envelope Flap Gluing Machine TJ380
- Automatic Flap Gluing Envelope (Pocket) Making Machine ZF128A
- Automatic Window Patching Machine TY31B
- Envelope Adhesive Paper Sticking Machine TY320
- Automatic Express Mail Envelop Forming Machine, ZT380
- High Speed Envelope Machine, H280
- High Speed Automatic Envelope Making Machine, 328LD
-
Label Printing Converting Machinery
- Label Slitting Machine with Rotary Die-cutting Station
- Label Auto Slitting Machine (Turret Slitter), DK-320
- Flexo Plate Mounting Machine
- Intermittent PS Label Offset Printing Machine, ZX-320
- Label Flexographic Printing Machine, ZBS320 (Flexo Printer)
- Automatic Label Inspecting Machine, ZB-320
- Label Die Cutting Machine, WQM-320
- Rotary Semi-Rotary Label Die Cutting Machine, ZM-320
- Anilox Roller Washing Machine, QXJ-450
- Flexo Plate Making Machine
- Narrow Type Thermal Laminating Machine (Roll to Roll), FM400
-
Slitting Machine
- Automatic Thermal Paper Slitting Machine
- Horizontal Automatic Slitting Machine
- Economic Automatic Slitting Machine, FQL
- High Precision Aluminum Lids Die Cut Punching Machine (IML Puncher) MQGB-B
- Slitting and spooling machine (Tearing Tape Slitter), LSJ60
- Slitting and Traverse Spooling Machine, LFT32
- Automatic Carton Refraction Embossing Machine
- Automatic Food Paper Bag Making Machine
-
Paper Tube Machinery
- Paper Tube Labeling Machine, HD-500/650
- Paper Tube Curling and Sealing Machine, CS400
- Paper Tube Forming Machine (Paper Can Winding Machine)

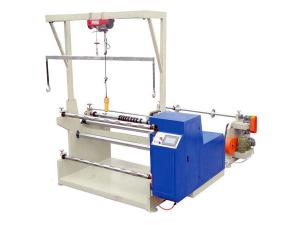

- Jumbo Paper Roll Slitter Rewinder Machine, SD1600
