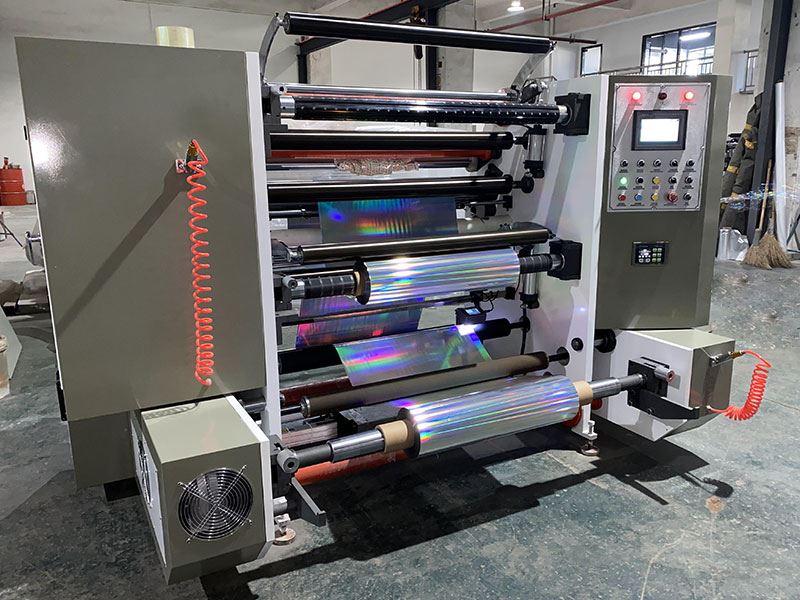

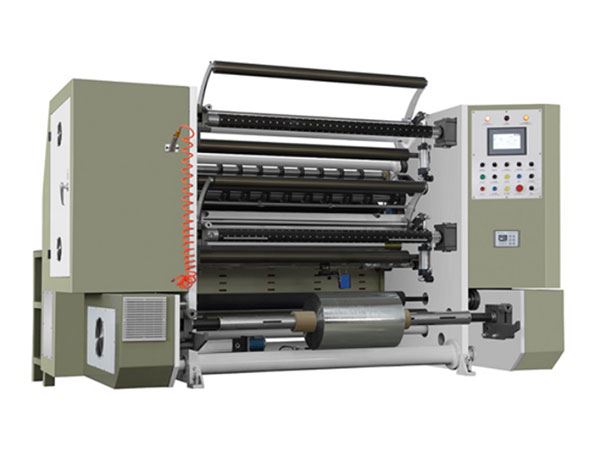

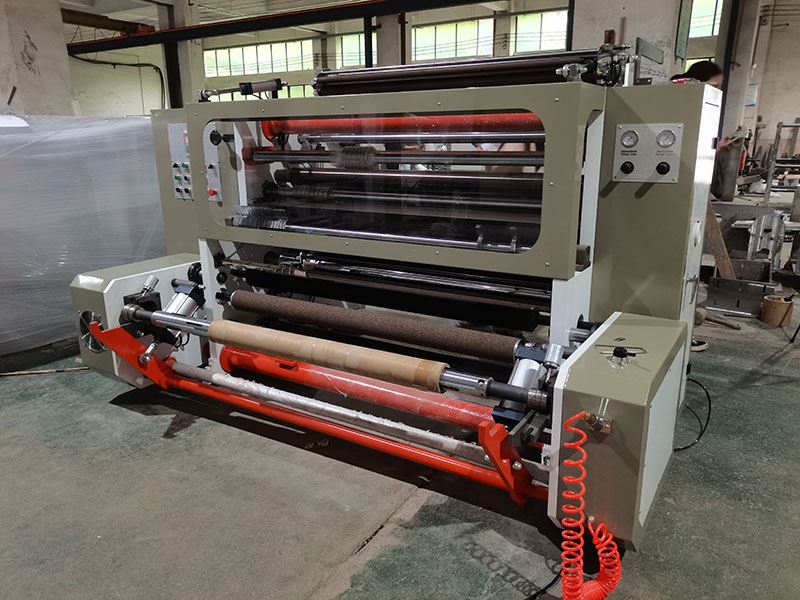

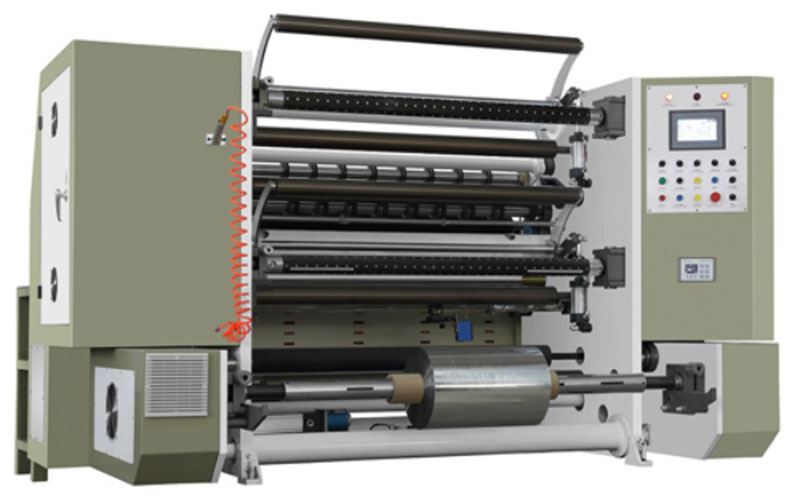

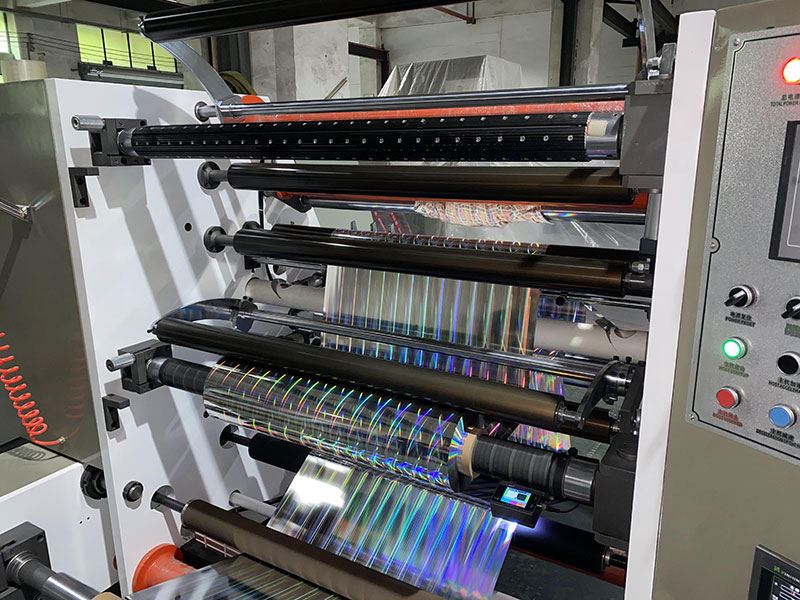

Economic Automatic Slitting Machine, FQL
This automatic slitting machine can be used to slit cellophane, BOPP, PET, CPP, CPE, PVC, self-adhesive paper, paper.
Features
- The unwinding system adopts automatic web-guiding system.
- PLC and touch screen control

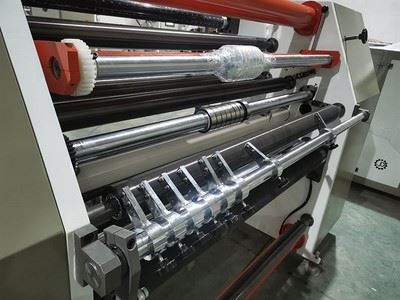

- Round blade and razor blade slitting device
- Rewinding pressing roller self-weight lay-on type
- With cantilever type rewinding structure
Specification
| Model | FQL1300 |
| Slitting material | 15~150um plastic film or paper |
| Slitting width | 50~1300mm |
| Mechanical speed | 220m/min |
| Slitting speed | 200m/min according material |
| Max unwinding diameter | ￠600mm 3 inch air shaft |
| Max rewinding diameter | ￠500mm 3 inch air shaft |
| Main motor | 5.5kw frequency conversion motor |
| Rewinding tension | 2*100NM magnetic clutch |
| Waste blowing fan | 0.75kw 3 phase |
| Driven style | Synchronous belt and triangle belt |
| Guiding roller | ￠80 AL alloy roller HV700 type |
| Machine structure | Caston iron and steel plate |
| Web guiding range | 120mm error±0.5mm |
| Voltage | AC 380V 3P 50Hz (or other request) |
| Machine weight | About 2500kg |
-
