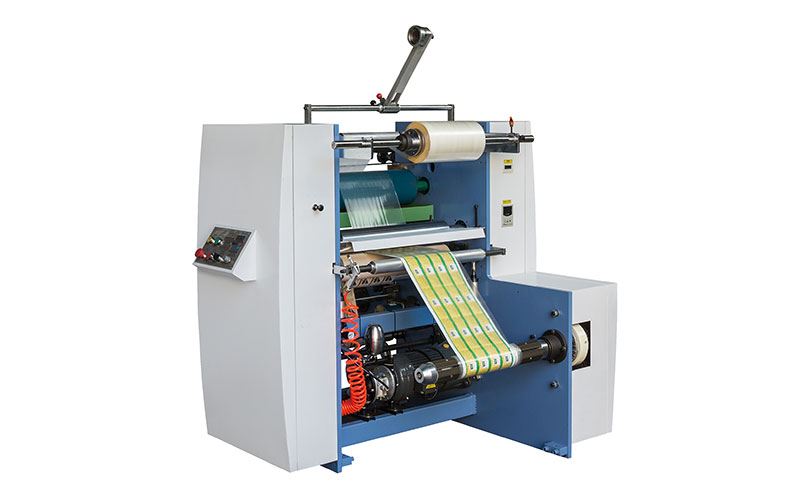

Narrow Type Thermal Laminating Machine (Roll to Roll), FM400
This narrow type thermal laminating machine is used to apply thermal lamination film or glue-less film with roll type self-adhesive label paper.
Features
- 3" air shaft for unwinding and rewinding
- Photocells for web-guiding
- Unwinding magnetic brake for tension control
- Metered counting function
- Main motor frequency converter for speed regulation
- Large diameter heating cylinder assures the perfect contact area of the film with paper
- Disc blade for OPP film slitting
Specification
| Max feeding width | 370mm |
| Max mechanical speed | 70m/min |
| Heating roller diameter | ￠268mm,420mm width |
| Rubber roller diameter | ￠206mm,420mm width |
| Heating temperature | 0～130℃ |
| Max unwinding diameter | ￠550mm |
| Max rewinding diameter | ￠550mm |
| Heating power | 6kw |
| Total power | 9kw |
| Max work pressure | 8Mpa |
| Overall dimension | 1380×1180×1370mm |
| Machine weight | About 700kg |
-
