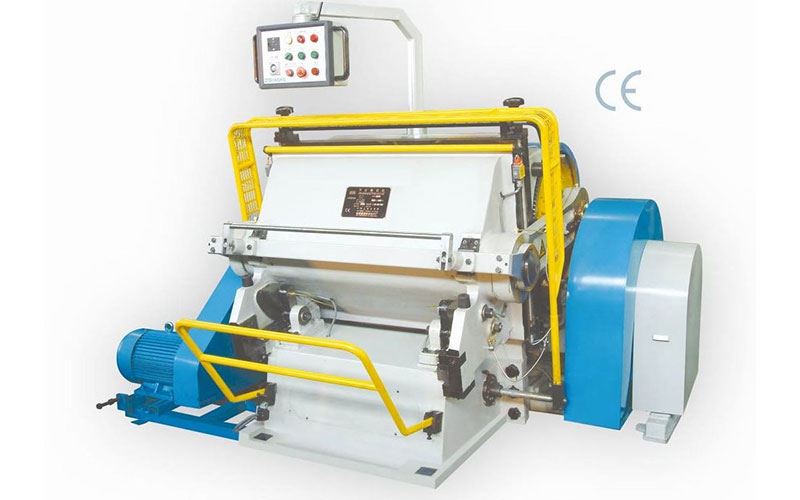

Heavy-Duty Manual Fed Creasing & Die Cutting Machine (Die Cutter)
This manual creasing and die cutting machine is a heavy-duty type die cutter. As compared with ML series, it is more powerful and has less noise.
Features
- Through using high quality material and casting technology, the heavy duty creasing and die cutting machine comes with high strength and hardness.
- It has steel connecting arms.
- Designed with dual flywheel, it is provided with high pressing force and stable operation.
- The two groups of electro-magnetic clutches are designed with power off safety device.
- It has continuous operation and opening delay function.
- Automatic central lubrication system
- Stepless speed regulation function ensures easy operation.
- The movable parts of the die cutting machine come with gig opening angles.
- Reliable protection device is available to ensure high safety standard.
Specification
Model | PYQ- 750 |
PYQ- 960 |
PYQ- 1080 |
PYQ- 1320 |
Max mould size | 750 × 540 mm | 960 × 700 (mm) | 1080 × 760 (mm) | 1320 × 960 (mm) |
Length of dint cutter | < 15m | < 25(m) | < 30(m) | < 35(m) |
Max cutting pressure | 60×104(N) | 100×104(N) | 120×104(N) | 140×104(N) |
Impress-cutting speed | 26r/min | 26r/min | 24(r/min) | 14-25(r/min) stepless speed |
Main power | 380v/2.2kw | 380/4(v/kw) | 380/4(v/kw) | 380/7.5(v/kw) |
Overall dimension | 980×1500×1400 (mm) | 1800×1360×1530 (mm) | 2220×1450×1600 (mm) | 2980×1920×1820 (mm) |
Weight | 2000kg | 3500(kg) | 4800(kg) | 7000(kg) |
