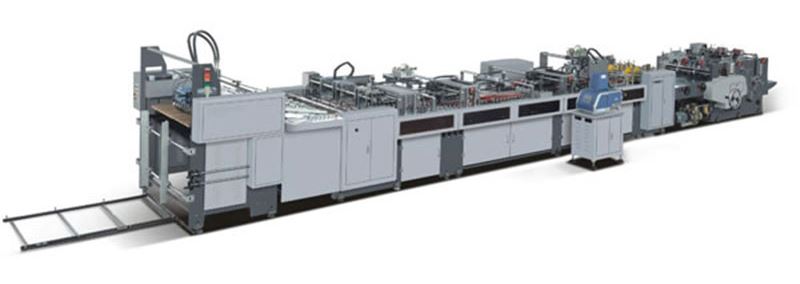

Paper Bag Forming Machine (Sheet Feeding), ZB1300B-1
The paper bag forming machine ZB1300B-1 is applicable for various kinds of special paper, glazed paper, and PE coated paper. It is generally used for batch production of paper bags for middle & high grade product and luxury.
Features
- The automatic feeder for the high speed paper bag making machine is constructed with variable frequency speed controller.
- The front lay and side lay support automatic paper sheet positioning.
- Full automatic, the paper bag forming machine completes gelatinizing, accordion folding, compressing, and paper bag discharging, at one stroke.
- In addition to the patented technologies, our full automatic paper packaging bag forming equipment also employs HMI with touch screen for high accuracy, fast production speed, and convenient control.
- Our paper bag forming machine lays solid foundation for standardized production, through the employment of digital control system.
Specification
| Max. sheet size (L×W) | 1200×650mm |
| Min. sheet size (L×W) | 700×360mm |
| Paper thickness | 100g-300g/m2 |
| Bag width | 250-450mm |
| Bottom width | 80-200mm |
| Bag length | 250-530mm |
| Total power | 14kW |
| Machine size | 14300×2400×1800mm |
| Speed | 60-90pcs/min |
| Total weight | 12 tons |
| Glue type | Water-based glue(hot-melt glue) |
-
