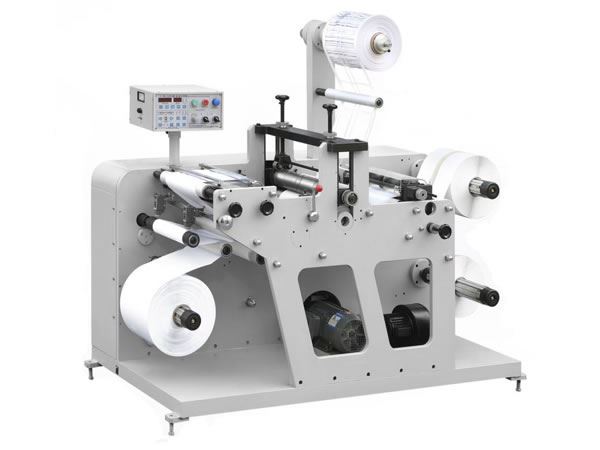

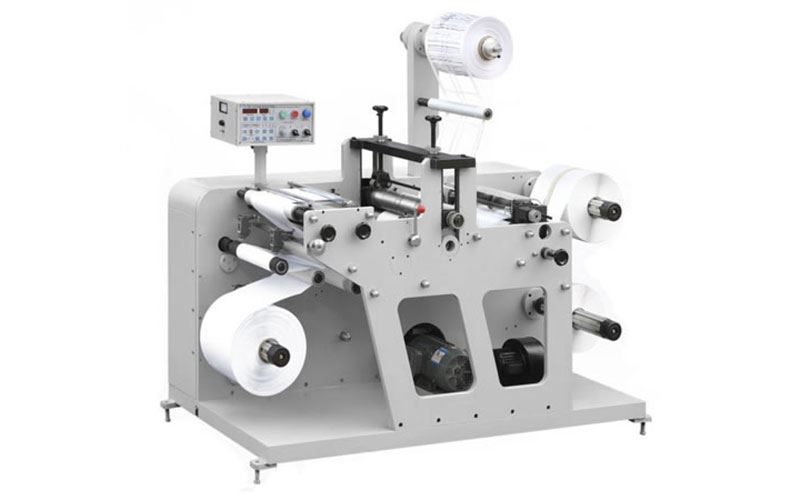

Label Slitting Machine with Rotary Die-cutting Station
- DK-G label slitting machine is equipped with a high accurate rotary die-cutting system.
- It can finish die cutting, laminating (optional), and slitting at a stroke, and is ideal for processing blank adhesive labels.
- It has the function of automatic meter counting, automatic stop, and web guiding by photocell.
- The label slitting machine has the characteristic of compact structure, fast speed, high efficiency, easy operation, accurate slitting and steady operation, etc.
|Die-cutting repeat length||177-476mm||177-476mm|
|Max web width||320mm||450mm|
|Max unwinding diameter||500mm||500mm|
|Max rewinding diameter||480mm||480mm|
|Overall dimension||1.6 ×0.9 ×1.3 m||1.6 ×1.1 ×1.3 m|
|Weight||About 600kg||About 650kg|
