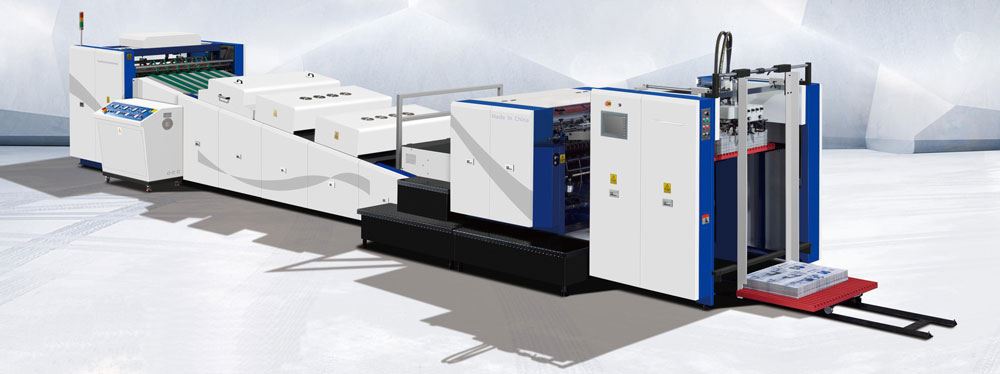

Spot UV Varnishing Machine, SGZJ

Spot UV Varnishing Machine
Inquiry Form
Description of Spot UV Varnishing Machine:
1. This kind of UV varnishing machine is mainly used for both spot or full varnishing on sheet surface with UV oil or glaze oil.
2. Adopting auto feeder, paper lack protection, 3 cylinders contrary transmission coating system, this converting machine is an ideal piece of equipment for part glazing

Technical Specification of Spot UV Varnishing Machine:
Model SGZJ-1000 SGZJ-1200
Max. sheet size 902×635mm 1200×820mm
Min. sheet size 546×393mm 600×440mm
Paper thickness 80-400gsm 80-400gsm
Speed 4000pcs/h 4000pcs/h
IR drying power 22kW 22kW
UV drying power 3×8kW 3×8kW
Overall dimension 12800×2400×1950mm 12800×2700×1950mm
Total weight 4800kg 5500kg
Max. power 30kW 30kW
