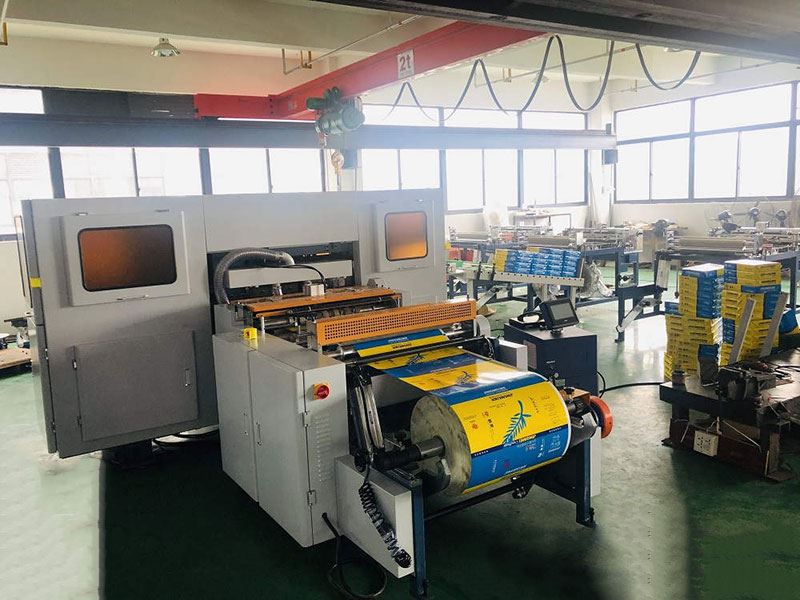

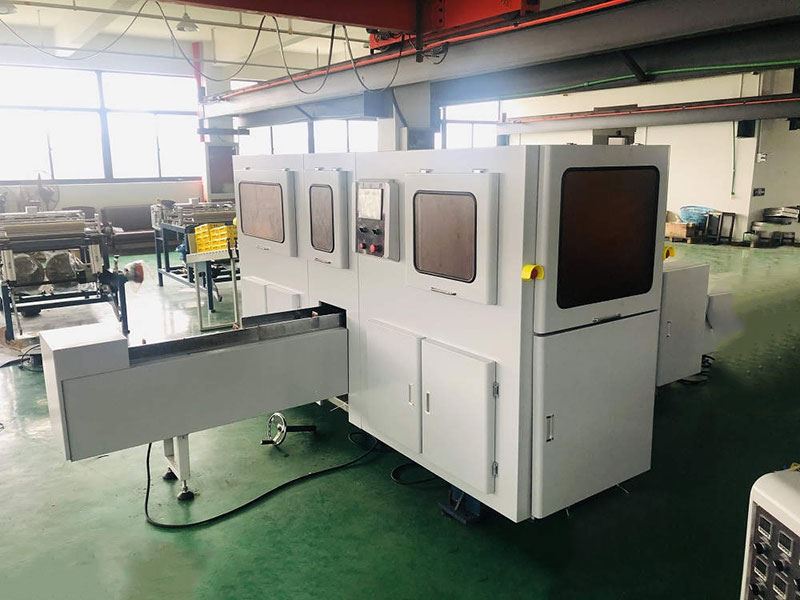

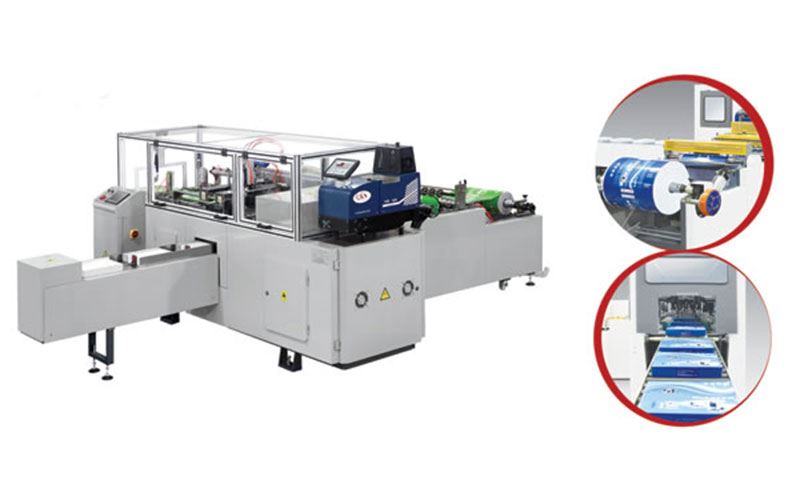

A4 Photocopy Paper Wrapping Machine DTDP
This kind of A4 paper sheet wrapping (packaging) machine adopts foreign technique, shortens packaging time and increases packaging efficiency. Comparing to manual packaging, it is fully automatic type and efficient Each connecting rod, transversely paper feeding function and other sections are driven by a series of cams inside the machine to quickly complete the actions of automatic paper feeding, paper falling, gluing and wrapping etc.
Features
- Adopt multi-functional digit-display infinite speed regulation, PLC control
- Equipped with touch screen to realize man-machine interface
- Automatic transverse cutting and feeding of roll overwrap paper
- Both common color printing paper and top grade color printing paper can be packed
- The most advanced automatic gluing spraying system is equipped
- Reasonable structure, higher efficiency, easier operation and increased sealing capacity
Application
This A4 paper sheet packaging machine is suitable for packing A4 copy sheets (210×297mm), B5 copy sheets (182×257mm) and 16K copy sheets (195×270mm).
Specification
| Model | DTDP-A4-20 |
DTDP-A4-30 |
| Capacity | 16-20 ream/min | 25-30 ream/min |
| Packing Size | 210×297×50mm (500pcs/ream) | |
| Wrapping Paper Size | (550-560mm)×386mm | |
| Voltage | 380V/3ph/4wires/50hz | |
| Motor Power | 6.5kw | 6.5kw |
| Gluing Power | 2.25kw | 2.25kw |
| Compressed Air | 0.6Mpa | 0.8Mpa |
| Overall Dimension | 4530×3050×1450mm | 4530×3050×1450mm |
| Machine Weight | 2T | 2T |
-
