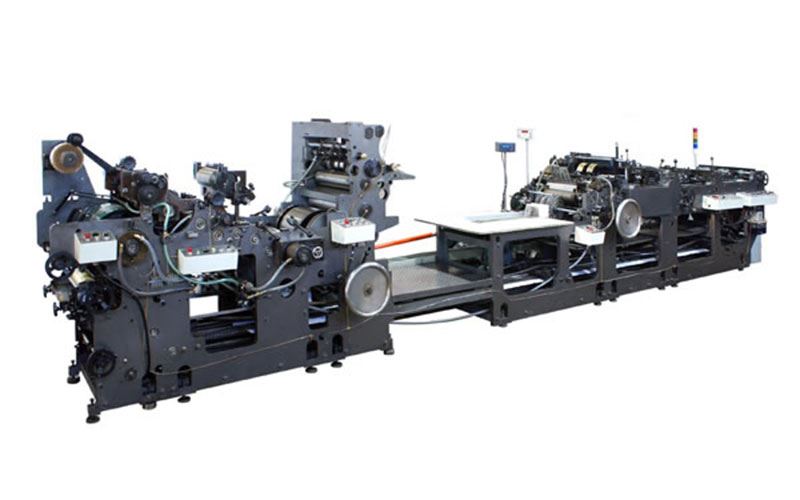

High Speed Automatic Envelope Making Machine, 328LD
Features
- The high speed automatic envelope making machine 328LD is a western style envelope production line integrating the functions such as gelatinizing, drying, folding, counting, and envelope separating.
- Made of first class HT250 gray iron, the parts for the high speed envelope making machine is processed by large-scale machining centre.
- This range of product offers rapid and stable operation.
- Dynamic balance test is carried out on the roller of the automatic envelope forming machine.
- Apart from the advanced conjugate cam, we particularly construct the high speed automatic envelope making machine with electrical apparatus control system from high-end suppliers, such as Siemens, Schneider, etc.
Specification
Max. speed | 25000pcs/h |
Raw paper size | Max. width: 520mm |
Max. length: 390mm | |
Envelope size | Max.: 265×185mm |
Min.: 125×75mm | |
Paper weight | 70-150gsm |
Envelopewindow size | Width: 25mm-120mm |
Length: 35mm-160mm | |
Cutting length of the material for envelope window | Max.: 240mm |
Min.: 36mm | |
Cutting width of the material for window | Max.: 230mm |
Min.: 25mm | |
Motor power | 7kW |
Drying power | 6kW |
Air pump | 15kW |
Total power | 28kW |
Size of high speed automatic envelope making machine (L×W×H) | 8700×1700×1650mm |
Machine weight | 10,000kg |
