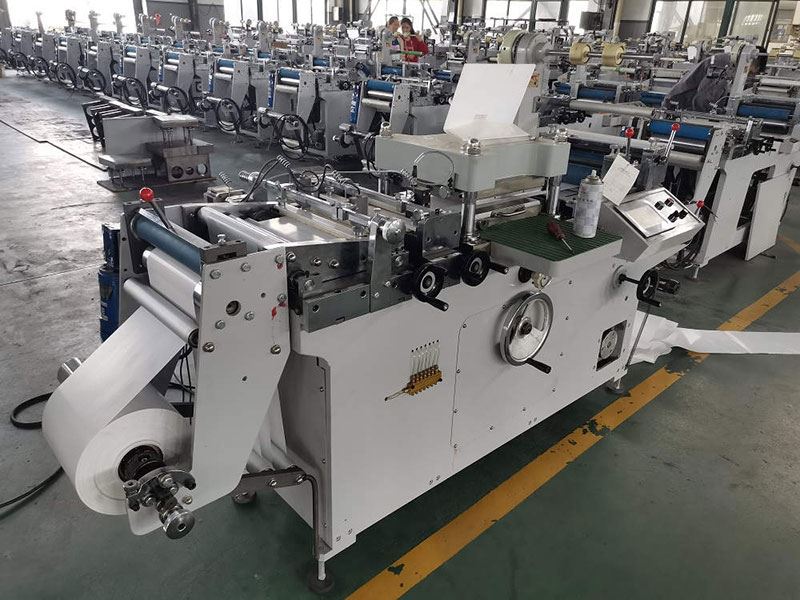

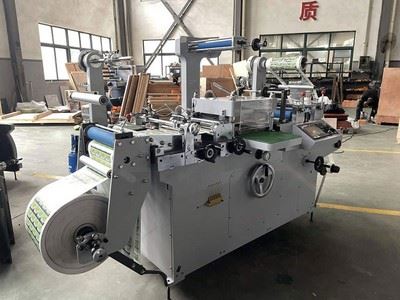

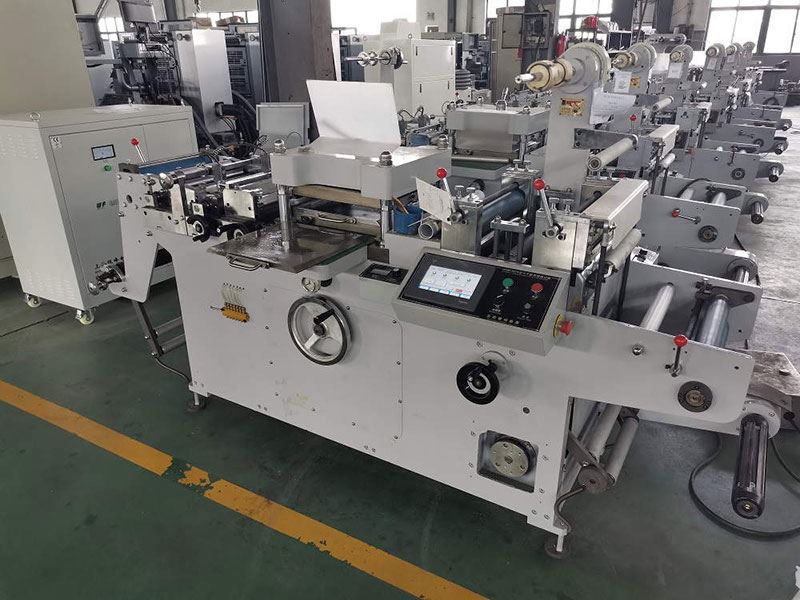

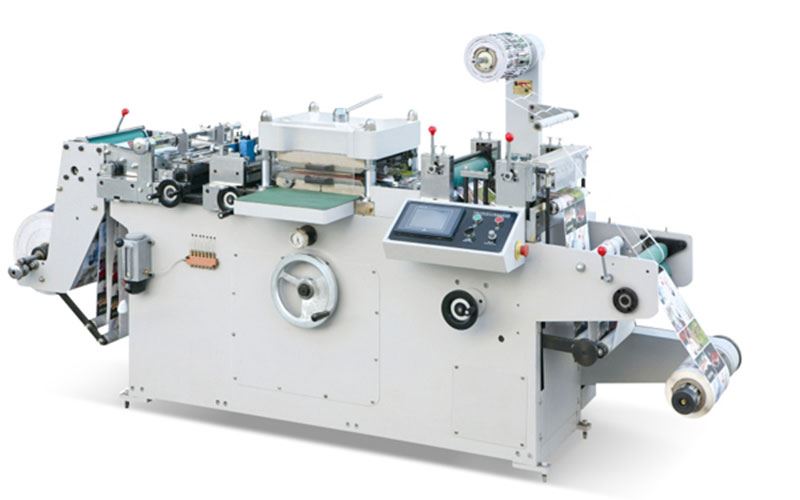

Label Die Cutting Machine, WQM-320
This label die cutting machine is suitable for printed adhesive label die cutting, machine with sheet cutting function.
Features
- Adopt high-precision flatten die-cutting system
- Material towing and slice cutting are controlled by computer
- Three photocell eyes do the web- guiding job.
- Die-cutting, waste-collecting, cutting and rewinding (or sheetering) can be finished at one stroke.
Application
- This type of converting machinery is suitable for die cutting adhesive paper, dacron label and laser hologram mark.
- It is the ideal auxiliary equipment for flexo printing machine, silk screen printing machine, gravure printing machine and hologram mark printing machine.
Options
- Punching system (for middle or side punching)
- Hot-stamping system
- Lamination system, can be installed in different position
Specification
| Model | 320 model |
320G model |
420 model |
| Die cutting speed: | 20-125t/min | 20-170t/min | 20-170t/min |
| Max.unwinding diameter : | 450mm | 500mm | 500mm |
| Max.web width : | 320mm | 320mm | 420mm |
| Max.die cutting width: | 300mm | 300mm | 400mm |
| Max.die cutting length: | 290mm | 300mm | 400mm |
| Orientation accuracy: | ±0.15mm | ±0.1mm | ±0.1mm |
| Total power: | 3kw | 3.5kw | 4.5kw |
| Power supply: | 220v±10% | 220v±10% | 380v |
| Machine weight: | about1500kg | about 1700kg | about2300kg |
| Overall dimensions: | 2.6(L)x0.95(W)x1.4(H)(m) | 2.6(L)x0.99(W)x1.4(H)(m) | 2.7(L)x1.05(W)x1.5(H)(m) |
-
Spot UV Varnishing Machine (Offset Type)
- Spot UV Varnishing Machine, SGZJ1200
-
Film Laminating Machine
- Multi-functional Vertical Type Laminating Machine (Film Laminator)
- Hydraulic Thermal Laminator (with Slitting) QLFM-Y
- Automatic Thermo Film Laminating Machine, FM1050E
- Automatic Multi-functional Vertical Laminating Machine with Hot Knife Cutting, FM-H
- Automatic Thermal Film Laminating Machine, FY1050B (Thermal Laminator)
-
Carton Laminating Machine
- Semi-automatic Carton Laminating Machine FMT-1300/1450 (Flute Laminator)
- High Speed Automatic Carton Laminating Machine FMZ-1450/1700 (Flute Laminator)
-
A4 Photocopy Paper Machinery
- A4 Photocopy Paper Wrapping Machine DTDP
- A4 Copy Paper Cross Cutting & Wrapping Machine, DTCP-A4
- DTCP-A4-5 Paper Sheet Cutting & Wrapping Machine
-
Paper Cup Forming Machine
- Automatic Paper Cup Forming Machine, JBZ
- High Speed Paper Cup Forming Machine, JBZ-122D
- Middle Speed Paper Cup Forming Machine, JBZ22D
- Paper Plate Forming Machine (High Speed Automatic Type), ZDJ-300K
- Reel Paper Die-cutting Machine (Paper Cup Punching Machine)
- Paper Cup Sleeve Forming Machine, JBZ-BG
- Plastic Lids Making Machine, HLD-450Z
-
Guillotine Paper Cutting Machine
- Programmable Paper Cutting Machine (Paper Cutter)
- Programmable Paper Cutting Machine (10 Inch Touch Screen)
- Paper Stack Lifter
- Paper Unloader
-
Sheet Cutting Machine
- Rotary Sheet Cutting Machine
- Computerized Sheet Cutting Machine (with Mark Tracking Unit) HQD-1100CS-3
- Peeling Rewinding Machine, DBL-1200
- Double Spiral Knives Sheeter (Twin Rotary Sheeting Machine)
-
Carton Box Folding and Gluing Machine
- Carton Box Erecting Machine (Lunch Box Forming Machine)
- Automatic Pre-fold and Lock Bottom Folder Gluer, SHH800AG
- High Speed Carton Box Folding and Gluing Machine, HZH-FB
- High Speed Carton Box Folding and Gluing Machine (4&6 Corners Boxes Folder Gluer), HZH-FBP
-
Paper Handbag Making Machine
- Paper Bag Making Machine (Sheet Feeding), ZB960C-330
- Paper Bag Making Machine (Sheet Feeding), ZB1200C-430
- Paper Bag Forming Machine (Sheet Feeding), ZB1100A
- Paper Bag Bottom Gluing Machine, ZB50B
- Paper Bag Forming Machine (Sheet Feeding), ZB1300B
- Paper Bag Forming Machine (Sheet Feeding), ZB1300B-1
-
Die Cutting and Creasing Machine
- Manual Fed Creasing and Die Cutting Machine (Die Cutter), ML750/930/1100/1300
- Manual Fed Hot Stamping and Die Cutting Machine
- Heavy-Duty Manual Fed Creasing & Die Cutting Machine (Die Cutter)
- Automatic Foil Stamping Machine
- Automatic Flatbed Die Cutting Machine with Stripping (Die Cutter)
-
Screen Printing Machine
- Manual Screen Printing Machine, WPKB
- Full Automatic Oval Screen Printing Machine, WTKY
- Reel Type Silk Screen Printing Machine, WQ-320
- Pneumatic Pad Printing Machine
- Vertical Screen Printing Machine, WPKH
- UV Curing Machine, WPF-UV700
-
Envelope Making Machine
- Automatic Envelope Making Machine, ZF-280C
- Express Post Envelope Making Machine, ZF380
- Automatic Envelope Making Machine (Pocket) , ZF490B
- Automatic Big Size Envelope (Pocket) Making Machine ZF-780
- Automatic Envelope Flap Gluing Machine TJ280
- Auto Envelope Flap Gluing Machine TJ380
- Automatic Flap Gluing Envelope (Pocket) Making Machine ZF128A
- Automatic Window Patching Machine TY31B
- Envelope Adhesive Paper Sticking Machine TY320
- Automatic Express Mail Envelop Forming Machine, ZT380
- High Speed Envelope Machine, H280
- High Speed Automatic Envelope Making Machine, 328LD
-
Label Printing Converting Machinery
- Label Slitting Machine with Rotary Die-cutting Station
- Label Auto Slitting Machine (Turret Slitter), DK-320
- Flexo Plate Mounting Machine
- Intermittent PS Label Offset Printing Machine, ZX-320
- Label Flexographic Printing Machine, ZBS320 (Flexo Printer)
- Automatic Label Inspecting Machine, ZB-320
- Label Die Cutting Machine, WQM-320

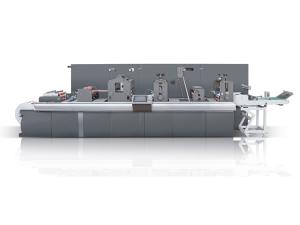

- Rotary Semi-Rotary Label Die Cutting Machine, ZM-320

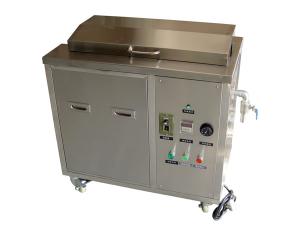

- Anilox Roller Washing Machine, QXJ-450

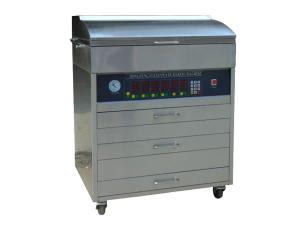

- Flexo Plate Making Machine

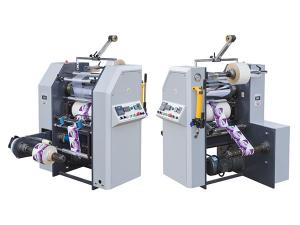

- Narrow Type Thermal Laminating Machine (Roll to Roll), FM400
-
