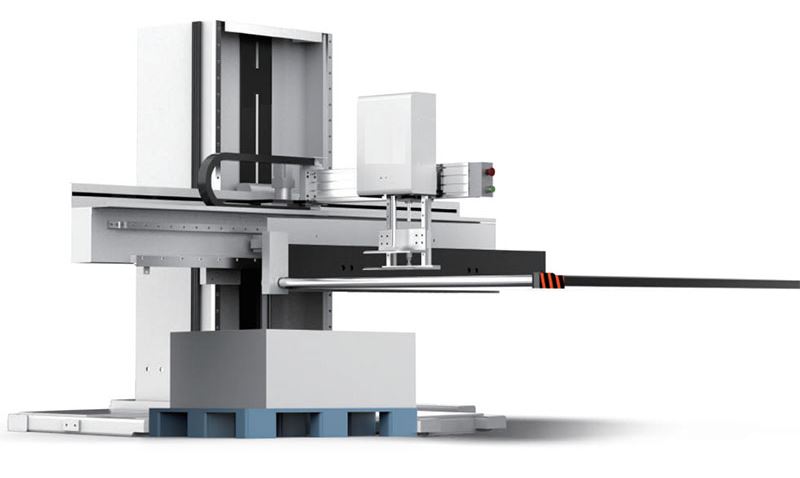

Paper Stack Lifter
Stack loading machine is with features of high production efficiency, reducing labor intensity and cost, shorter production time, and etc. It is an ideal auxiliary equipment for paper cutter.
Features
- It can transfer the paper sheets from paper stack to the work table automatically, in safe and reliable operation. Equipped with edge touching safety guard, to ensure the safety of the surrounding when machine is in running.
- The height of the loading can be adjusted. Using hydraulic structure to make sure movement steady. With pneumatic device, the clamp device force is adjustable according to different material of paper.
Specification
| Model | QZ1450F |
| Loading pattern | Front loading |
| Table size | 1300x1600mm |
| Max loading size | 1100x1280mm |
| Min loading size | 450x560mm |
| Max loading height | 165mm |
| Max stacking height | 1600mm |
| Max.loading weight | 350kg |
| Air demand | 6bar |
| Max.power | 5.5kw |
| Loading time | 25~40second |
| Air consumption | 3L/min |
| Noise index | 60dB |
| Gross Weight | 1650kg |
| Machine Size(L*W*H) | 2550x2350x2100mm |
| Packing Size(L*W*H) | 2650x2400x2380mm |
-
