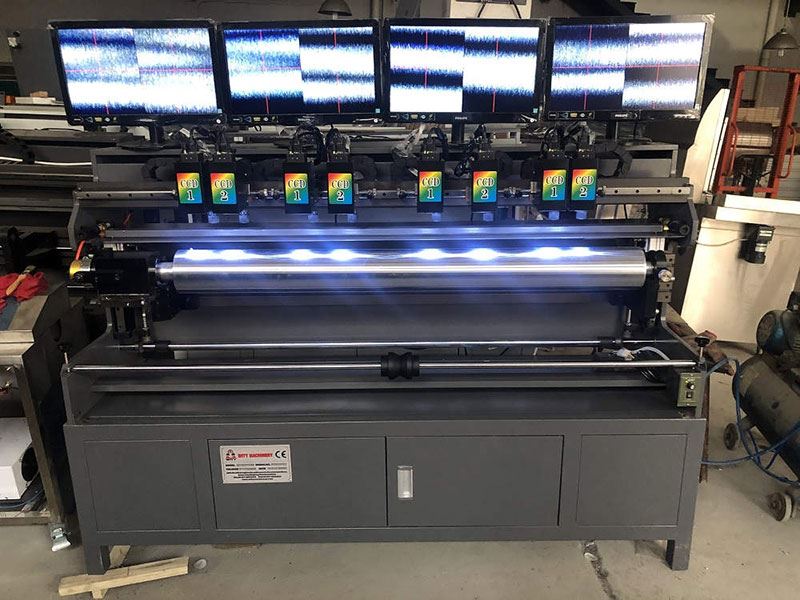

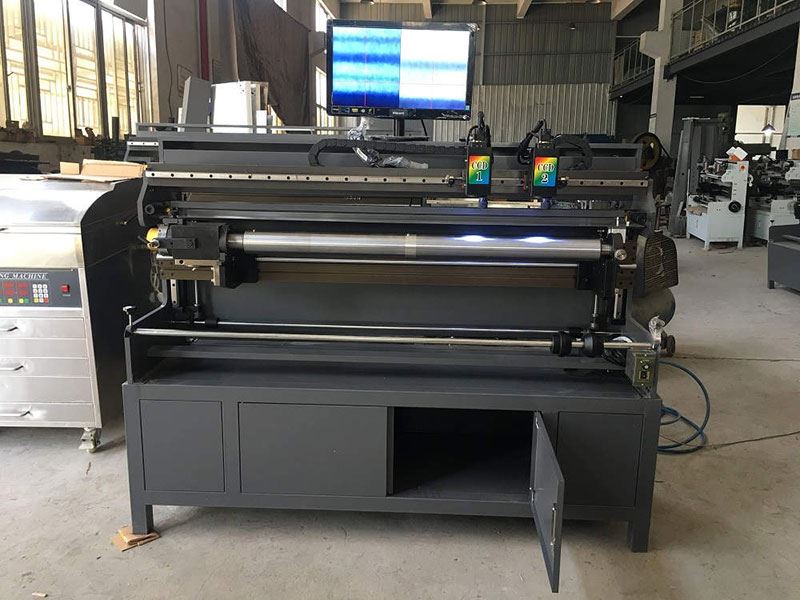

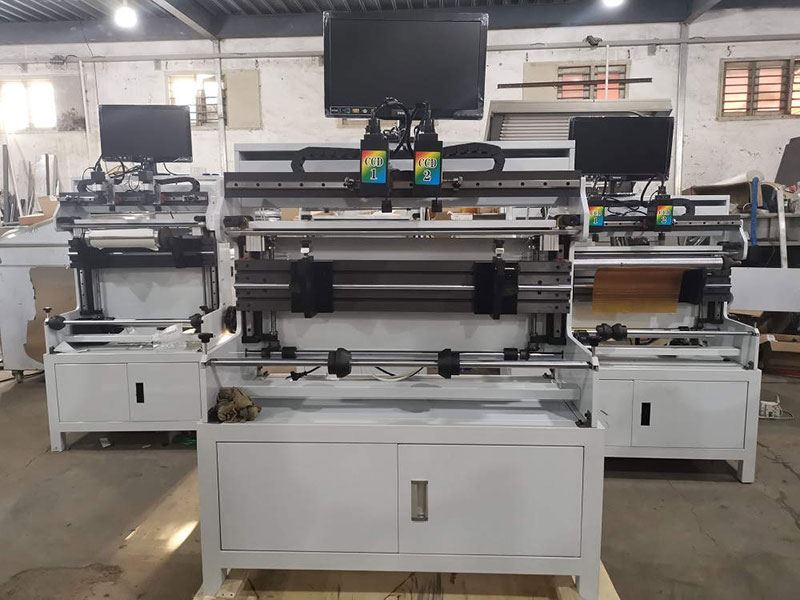

Flexo Plate Mounting Machine
Features
- ThisFlexo Plate Mounting Machine has high precision linear guide rails for horizontal positioning. The camera position is adjustable vertically, by using a precision screw rod system.
- Has magnify zoom lens, high definition CCD camera, and LCD displayer.
- The two cameras can be moved individually, which helps ensure convenient and accurate positioning of the cross line.
- The CCD camera can be adjusted in six directions, and the parallelism is adjustable. This ensures high precision of plate mounting.
- A micro-adjustment system is available to ensure the accurate movement of the flexo plate. After mounting, the Desktop Type Flexo Plate Mounting Machine can check the precision directly and assure the plate mounting accuracy.
- Pneumatic locking system is available, which ensures convenient loosen and tighten, fast plate mounting, and easy operation. Thus, the working efficiency is greatly improved.
- Suitable for flexo plate and resin plate mounting.
Specification

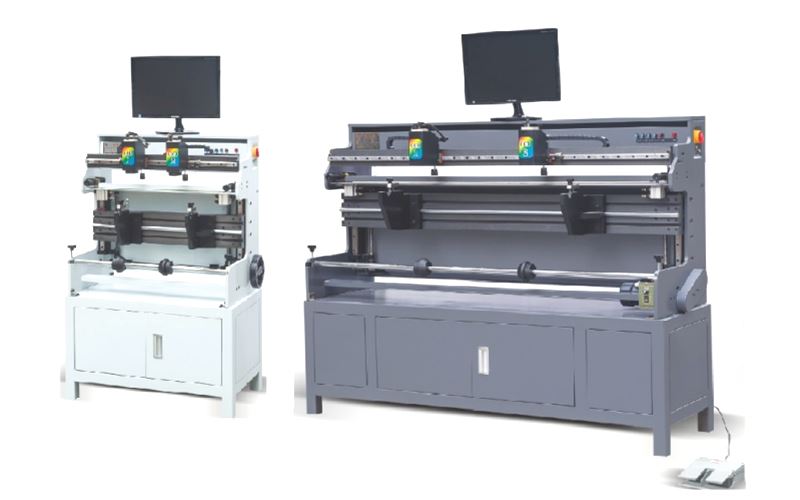

| Model | YG-450 |
YG-650 |
| Plate mounting width | 120~450mm | 120~650mm |
| Plate cylinder diameter | 55~260mm | 55~260mm |
| Power | 0.5kw | 0.5kw |
| Overall dimension | 128x600x1050mm | 128x700x1050mm |
| Weight | 90kg | 100kg |
| Voltage | 95V~245V/1P | 95V~245V/1P |
| Air supply | 3~4mpa | 3~4mpa |
-
Spot UV Varnishing Machine (Offset Type)
- Spot UV Varnishing Machine, SGZJ1200
-
Film Laminating Machine
- Multi-functional Vertical Type Laminating Machine (Film Laminator)
- Hydraulic Thermal Laminator (with Slitting) QLFM-Y
- Automatic Thermo Film Laminating Machine, FM1050E
- Automatic Multi-functional Vertical Laminating Machine with Hot Knife Cutting, FM-H
- Automatic Thermal Film Laminating Machine, FY1050B (Thermal Laminator)
-
Carton Laminating Machine
- Semi-automatic Carton Laminating Machine FMT-1300/1450 (Flute Laminator)
- High Speed Automatic Carton Laminating Machine FMZ-1450/1700 (Flute Laminator)
-
A4 Photocopy Paper Machinery
- A4 Photocopy Paper Wrapping Machine DTDP
- A4 Copy Paper Cross Cutting & Wrapping Machine, DTCP-A4
- DTCP-A4-5 Paper Sheet Cutting & Wrapping Machine
-
Paper Cup Forming Machine
- Automatic Paper Cup Forming Machine, JBZ
- High Speed Paper Cup Forming Machine, JBZ-122D
- Middle Speed Paper Cup Forming Machine, JBZ22D
- Paper Plate Forming Machine (High Speed Automatic Type), ZDJ-300K
- Reel Paper Die-cutting Machine (Paper Cup Punching Machine)
- Paper Cup Sleeve Forming Machine, JBZ-BG
- Plastic Lids Making Machine, HLD-450Z
-
Guillotine Paper Cutting Machine
- Programmable Paper Cutting Machine (Paper Cutter)
- Programmable Paper Cutting Machine (10 Inch Touch Screen)
- Paper Stack Lifter
- Paper Unloader
-
Sheet Cutting Machine
- Rotary Sheet Cutting Machine
- Computerized Sheet Cutting Machine (with Mark Tracking Unit) HQD-1100CS-3
- Peeling Rewinding Machine, DBL-1200
- Double Spiral Knives Sheeter (Twin Rotary Sheeting Machine)
-
Carton Box Folding and Gluing Machine
- Carton Box Erecting Machine (Lunch Box Forming Machine)
- Automatic Pre-fold and Lock Bottom Folder Gluer, SHH800AG
- High Speed Carton Box Folding and Gluing Machine, HZH-FB
- High Speed Carton Box Folding and Gluing Machine (4&6 Corners Boxes Folder Gluer), HZH-FBP
-
Paper Handbag Making Machine
- Paper Bag Making Machine (Sheet Feeding), ZB960C-330
- Paper Bag Making Machine (Sheet Feeding), ZB1200C-430
- Paper Bag Forming Machine (Sheet Feeding), ZB1100A
- Paper Bag Bottom Gluing Machine, ZB50B
- Paper Bag Forming Machine (Sheet Feeding), ZB1300B
- Paper Bag Forming Machine (Sheet Feeding), ZB1300B-1
-
Die Cutting and Creasing Machine
- Manual Fed Creasing and Die Cutting Machine (Die Cutter), ML750/930/1100/1300
- Manual Fed Hot Stamping and Die Cutting Machine
- Heavy-Duty Manual Fed Creasing & Die Cutting Machine (Die Cutter)
- Automatic Foil Stamping Machine
- Automatic Flatbed Die Cutting Machine with Stripping (Die Cutter)
-
Screen Printing Machine
- Manual Screen Printing Machine, WPKB
- Full Automatic Oval Screen Printing Machine, WTKY
- Reel Type Silk Screen Printing Machine, WQ-320
- Pneumatic Pad Printing Machine
- Vertical Screen Printing Machine, WPKH
- UV Curing Machine, WPF-UV700
-
Envelope Making Machine
- Automatic Envelope Making Machine, ZF-280C
- Express Post Envelope Making Machine, ZF380
- Automatic Envelope Making Machine (Pocket) , ZF490B
- Automatic Big Size Envelope (Pocket) Making Machine ZF-780
- Automatic Envelope Flap Gluing Machine TJ280
- Auto Envelope Flap Gluing Machine TJ380
- Automatic Flap Gluing Envelope (Pocket) Making Machine ZF128A
- Automatic Window Patching Machine TY31B
- Envelope Adhesive Paper Sticking Machine TY320
- Automatic Express Mail Envelop Forming Machine, ZT380
- High Speed Envelope Machine, H280
- High Speed Automatic Envelope Making Machine, 328LD
-
Label Printing Converting Machinery
- Label Slitting Machine with Rotary Die-cutting Station
- Label Auto Slitting Machine (Turret Slitter), DK-320
- Flexo Plate Mounting Machine
- Intermittent PS Label Offset Printing Machine, ZX-320

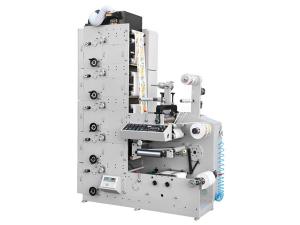

- Label Flexographic Printing Machine, ZBS320 (Flexo Printer)

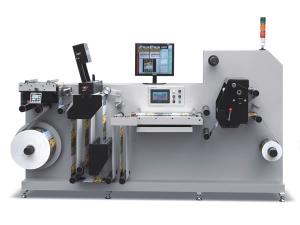

- Automatic Label Inspecting Machine, ZB-320

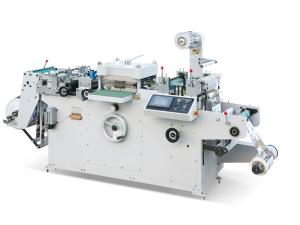

- Label Die Cutting Machine, WQM-320
