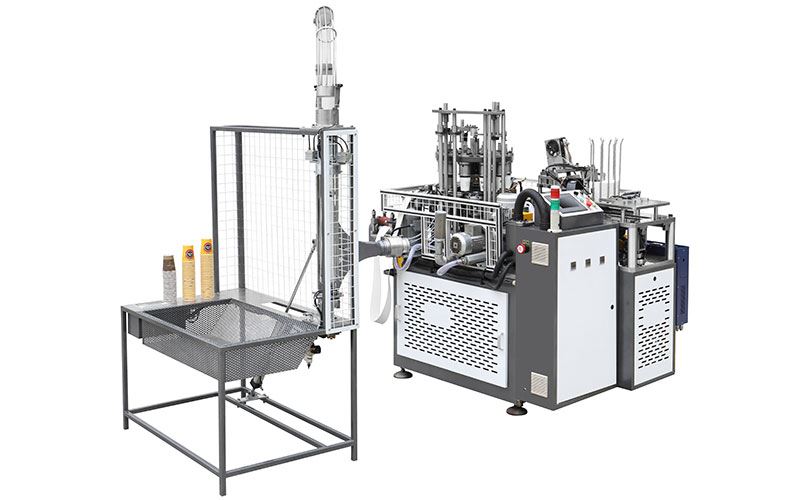

Middle Speed Paper Cup Forming Machine, JBZ22D
This paper cup forming machine is an automatic machine with multi-running positions. It can perform all the processes of paper-feeding, sealing, oiling, bottom-punching, heating, knurling, edge rolling, and discharge. Functions like photo-electric detection, failure alarm and counting are provided by it.
- The whole steel plate fuselage、inter layer paper feeding design and the style of oil poured lubrication system is Ensured the equipment long-term normal and Stable Work;
- Short distance double vertical axis combine advanced and high-precision cylinder open type cam drive make every stations high-speed worked accurate without mistake;
- Single wrap the leaf groove cam structure combine seesaw roof bar design can make the high-speed paper feeding go to the place accurately;
- Exquisite original creation ￠490mm mold turn-plate design make the equipment work load more light and the speed to be more fast;

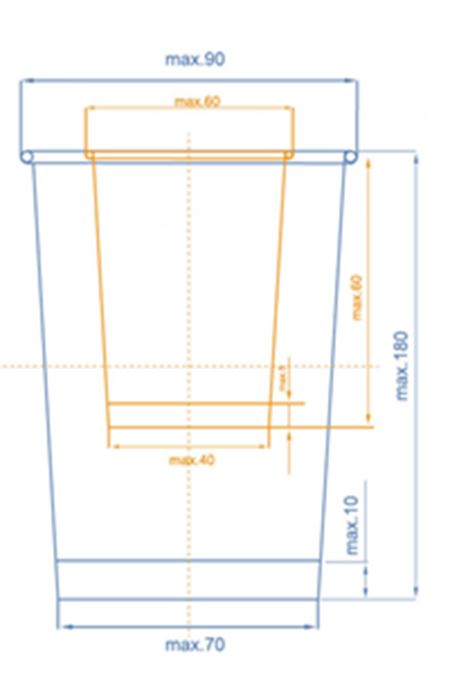

- Scientific and reasonable mechanical is fit Itinerary design can using in premise of exchange mold can make the products producing range 6oz-22oz ;paper thickness 170g-350g .
|Raw material||160-350g/㎡Two side PE coated paper and one side PE coated paper|
|Main motor power||1.5kw|
|Air source||0.4m³/min, 0.5-0.8mpa|
