Three Side Sealing Bag Making Machine, 400A

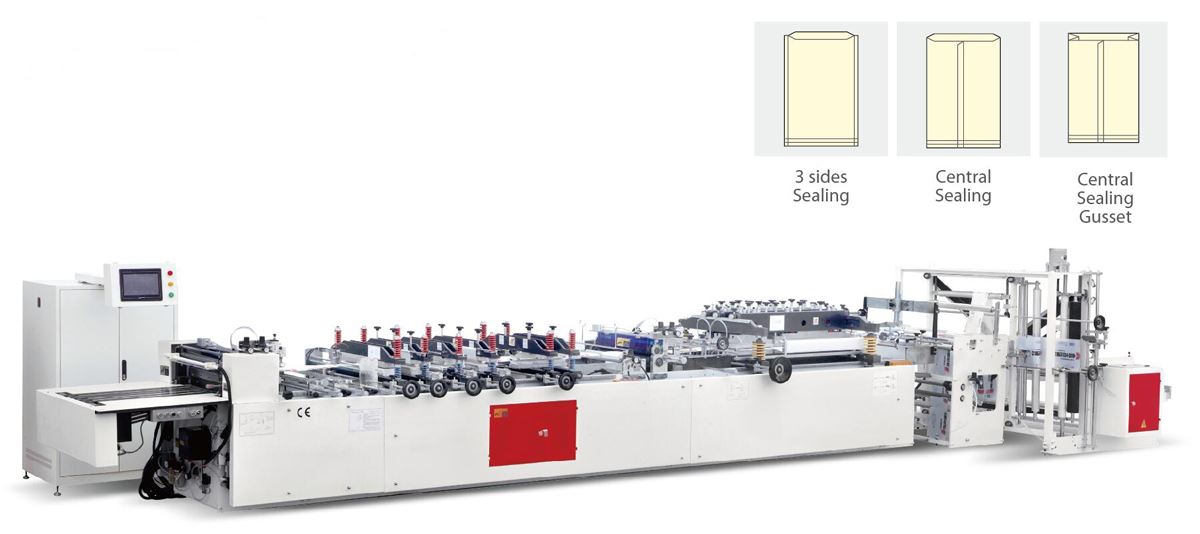

This three side & central sealing bag making machine is for making 3 side sealing, central sealing and central sealing with gusset bag.
Specification
| Model | 400A | 500A | 600A | |
| Unwind Width | 800mm | 1000mm | 1200mm | |
| Pouch Making Height | 70-380mm× N (N=SKIP≤6) | |||
| Pouch Making Width | 3 side seal | 70-380mm | 70-480mm | 70-580mm |
| Central seal | 100-350mm | 100-400mm | 100-450mm | |
| Central seal with gusset | 100-230mm(G=60×2） | 100-280mm(G=60×2） | 100-330mm(G=60×2） | |
| Speed | 100-170pcs/min | 100-170pcs/min | 100-170pcs/min | |
| Line Speed | 35m/min | 35m/min | 35m/min | |
| Total power | 24kw | 26kw | 34kw | |
| Weight | 3500kg | 3850kg | 4300kg | |
| Overall Dimension | 8×1.75×1.8m | 8×1.95×1.8m | 8×2.1×1.8m | |
-
-
