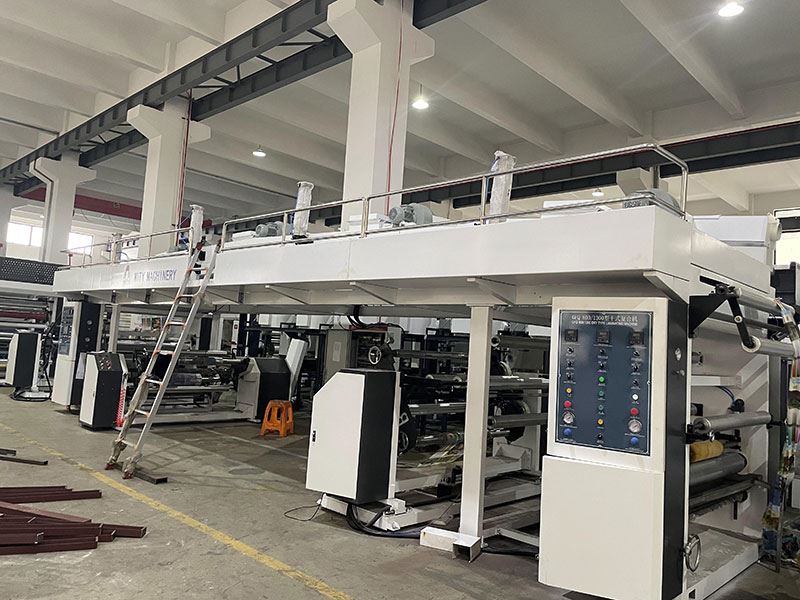

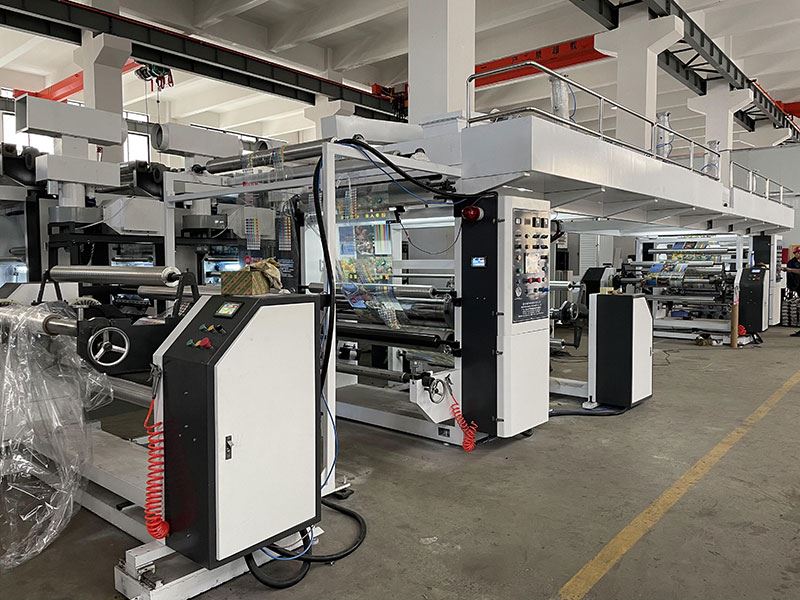

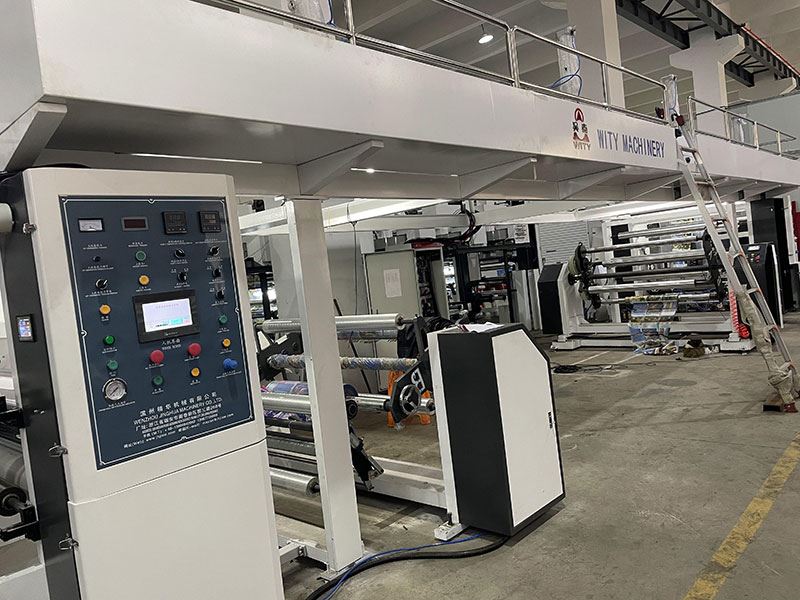

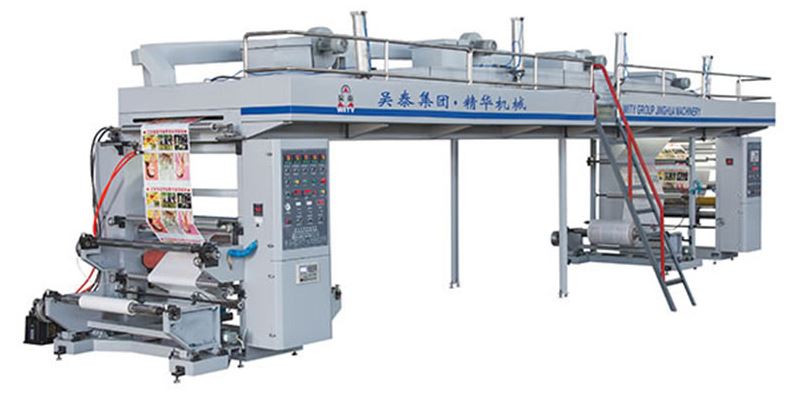

Dry Type Laminating Machine, GF-Q
This dry type laminating machine is highly automated and easy to operate for high quality and high yield laminating applications. The heating oven uses a constant temperature hot air drying system and the heating roll utilizes an internal heated oil system.
Features
- Double inverter speed adjustment.
- Anilox roller supply glue.
- Photocell unwinding rectifier.
- Unwinding tension controlled by magnetic powder brake
- Double layer pneumatic type open heat oven
- Four segment constant temperature hot air drying
- Heated oil laminating roll
Specification
| Technical data | GF-800Q | GF-1100Q |
| Laminating width | 800mm | 1100mm |
| Diameter of unwinding | 600mm | 600mm |
| Diameter of rewinding | 800mm | 800mm |
| Max mechanical speed | 160m/min | 160m/min |
| Total power | 105kw | 115kw |
| Overall dimensions | 10600X2300X3100mm | 10600X2600X3100mm |
| Weight | 7T | 9T |
Materia
| Firs base material | |
| OPP/BOPP | 15~60um |
| PET | 12~60um |
| PA | 15~60um |
| Second material | |
| PE/CPE/DPE | 20~75um |
| Aluminum foil | 7~20um |
| Paper | 70~120gsm |
-
-
Gravure Printing Machine
- Automatic Register Rotogravure Printing Machine (Rotogravure Press), YAD-A5
- Automatic Color Register Rotogravure Printing Machine, YAD-A2
- Auto Color Register Rotogravure Machine (Rotogravure Printer), YAD-A3
- Economical Type Auto Register Rotoravure Printing Press, YAD-H
- Auto Register Rotogravure Printing Machine, YAD-K3
- Electronic Shaft Rotogravure Printing Machine
-
Gravure Printing Machine
-
Dry Type Laminating Machine
- High Speed Dry Type Laminating Machine, GF-B
- High Speed Dry Type Laminator, GF-A
- Dry Type Laminating Machine, GF-Q

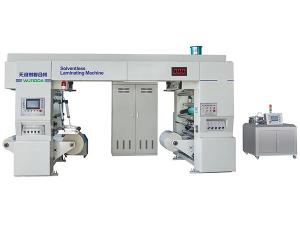

- Solventless Film Lamination Machine
-
Shrink Sleeve Label Making Machinery

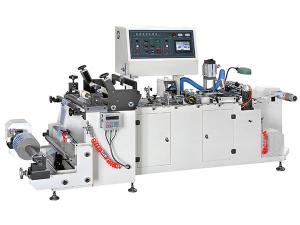

- Shrink Sleeve Label Gluing Machine, GSHZ250 (Mold Adjustable)

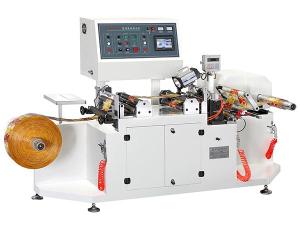

- Sleeve Label Inspection Machine, GSJP250
