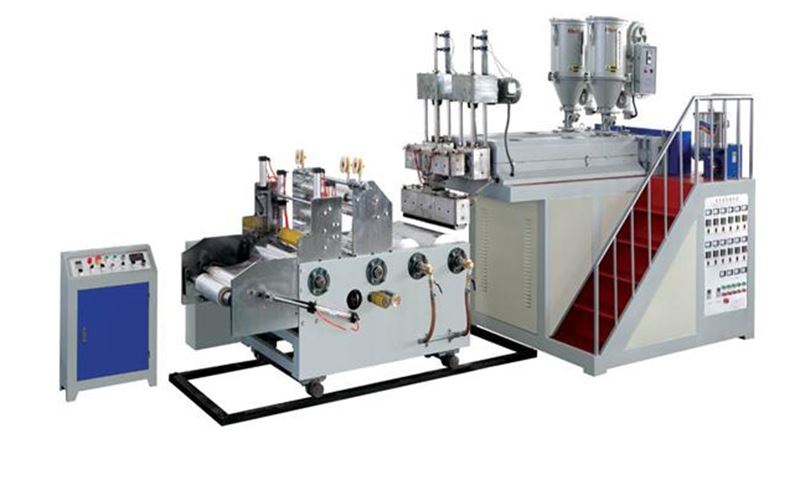

PE Stretch Film Co-Extruding Machine
This machine is designed to produce stretch film (cling film) for industry or food packing, which is composed of – glue feeding part, 1st extruder part, 2nd extruder part, filter part, Die-head part, traction part, winding part auto-cutting and side film trimming part.
Features
- Adopt double-screw rod
- Two feeding hoppers provide different type of materials
- The PE film produced is adhesive in one side
- This plastic machine is suitable for producing LDPE stretch film
- Its products are widely used for packing architecture material and hardware parts, etc.
Specification
| Model (small type) | SJ-50 | SJ-65 |
| Screw diameter(mm) | ￠500mm×2 | 65mm |
| L/D ratio of the screw | 28:1(L/D) | 30:1(L/D) |
| Rev. of screw | 10-120r/min | |
| Screw speed | 10-120rpm | 10-120rpm |
| Film width | 200-550mm | 220-550mm |
| Film thickness | 0.015-0.04mm | 0.015-0.04mm |
| Main motor power | 7.5KWx2 | 15KWx2 |
| Heating power | 30kw | 30kw |
| Dimension(m) | 5.6x2.6x1.8m | 6.0x1.5x2.5m |
| Weight(kg) | 2800kg | 3000kg |
