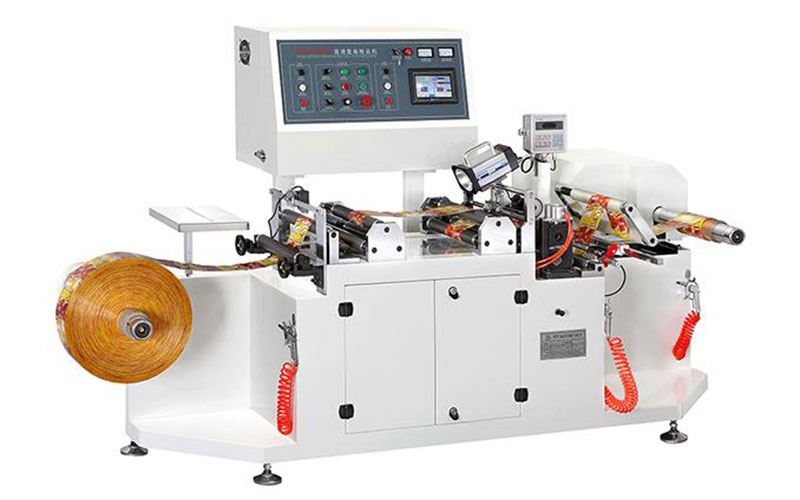

Sleeve Label Inspection Machine, GSJP250

1. Introduction:
This machine is special designed for rewinding and quality control the film reels, especially for PVC/PET colorful shrink label.
During the process of rewinding can inspect the label printing quality and sleeve gluing quality.
Simple construction. Easy to operate and maintain.
2. Feature:
1) Unwinding Section
Cantilevered unwind 3" air shaft for fast roll changeover.
Main drive CDQC brand AC motor + YASKAWA brand double frequency inverter.
Automatic PLC unwind tension control, input material thickness and diameter, tension will be automatic calculate and controlled.
2)Inspection Section

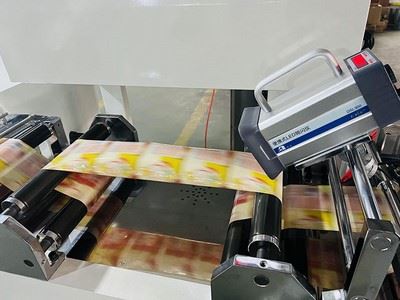

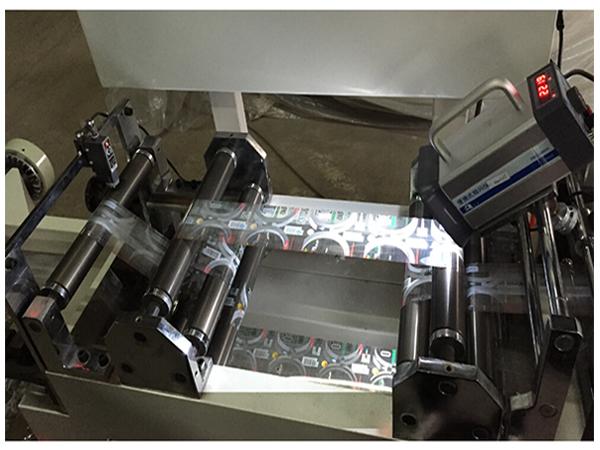

Equipped with stroboscope and photo sensor to help monitoring the printing and sealing quality
3) Rewinding Section
Cantilevered rewind 3" air shaft for fast roll changeover.
Automatic rewinding tension control by PLC assure stable rewinding tension and no need to adjust while speed and diameter varied, and guarantee optimum finished products.
PAUSORCE brand ultrasonic EPC Web guiding system provides the accuracy shrink sleeve seaming position.
4) Micro Computer Control System

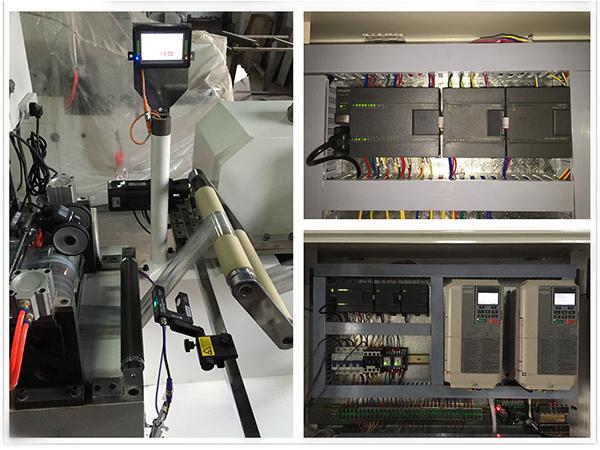

Adopted with SIEMENS PLC system providing the accurate and stable control.
Colorful 5.7 inch WEINVIEW brand touch screen
Unwind tension auto control function.
Rewind tension auto increase function.
5) Optional Accessories
Vertical continuous perforation device.
Rewind oscillation device
3. Specification:
Max inspection width 300mm
Unwinding diameter 700mm
Rewinding diameter 700mm
Mechanical speed 330m/min
Max seaming speed 300m/min
Material Core Inner Diameter 76 / 3"
Total power 3.5kw
Machine weight 870kg
Overall dimension 2700×1100×1650mm

4. Price:
GSJP-250: FOB(Ningbo) USD18,600
Option:
Rewinding oscillation function: USD1,400
220V/3P/60Hz voltage: USD520

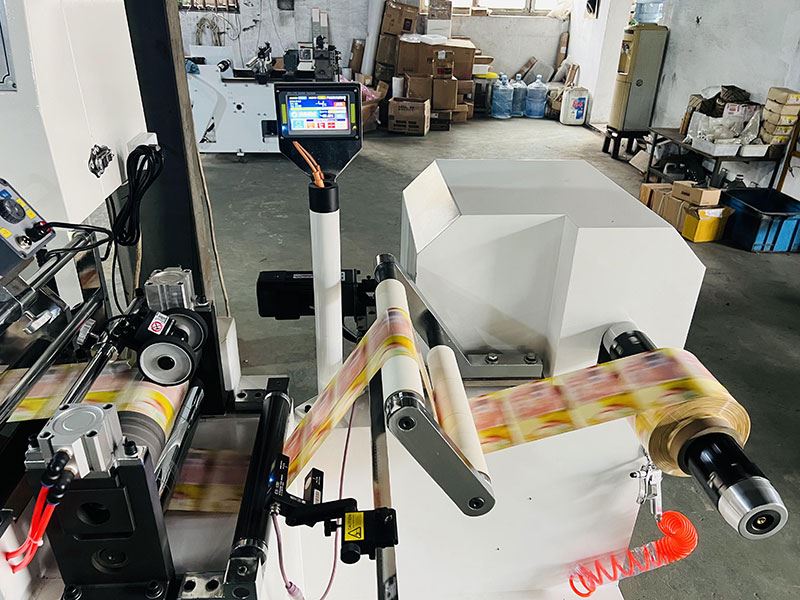

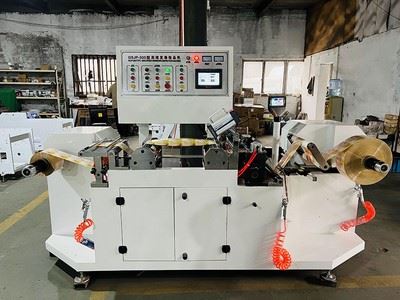

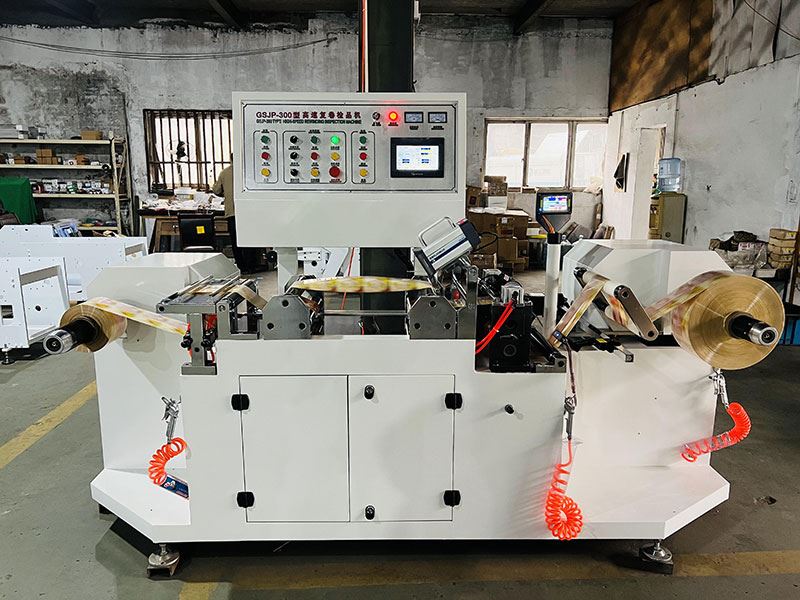

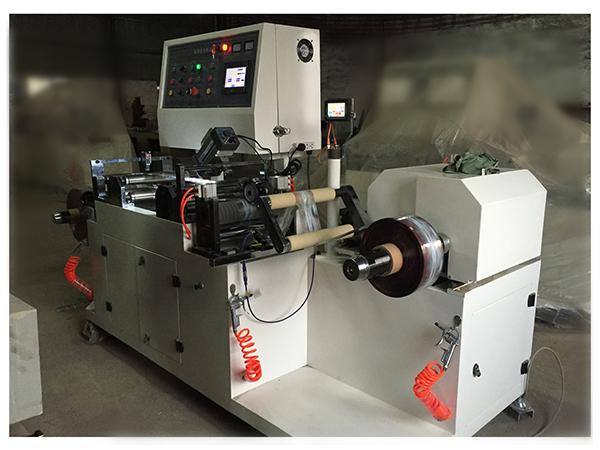

5. Machine photoes:
