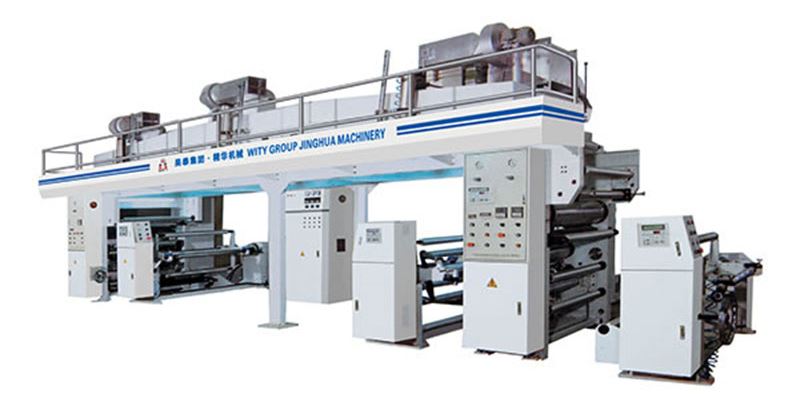

High Speed Dry Type Laminator, GF-A
This dry laminating machine is specially designed for plastic-plastic, aluminum foil-plastic, paper-plastic and other roll type materials lamination. This laminator is commonly used for the production of soft packaging for food, medicine and other products.
Features
- Photocell correction function for unwinding and rewinding.
- Double work station rotary shelf type rewinding structure.
- Coating roll press is adjusted freely.
- Options: four motor, eight motor tension closed loop system
Specification
| Type | GF-800A | GF-1100A |
| Laminating width | 820mm | 1120mm |
| Diameter of unwinding | 600mm | 600mm |
| Diameter of rewinding | 800mm | 800mm |
| Total length of oven | 8000mm(three grade) | 8000mm(three grade) |
| Machinery speed | 180m/min | 180m/min |
| Total power | 105kw | 135kw |
| Overall dimensions | 11500x3200x3500mm | 11500x3500x3500mm |
| Weight | about 10000kg | about 12000kg |
-
