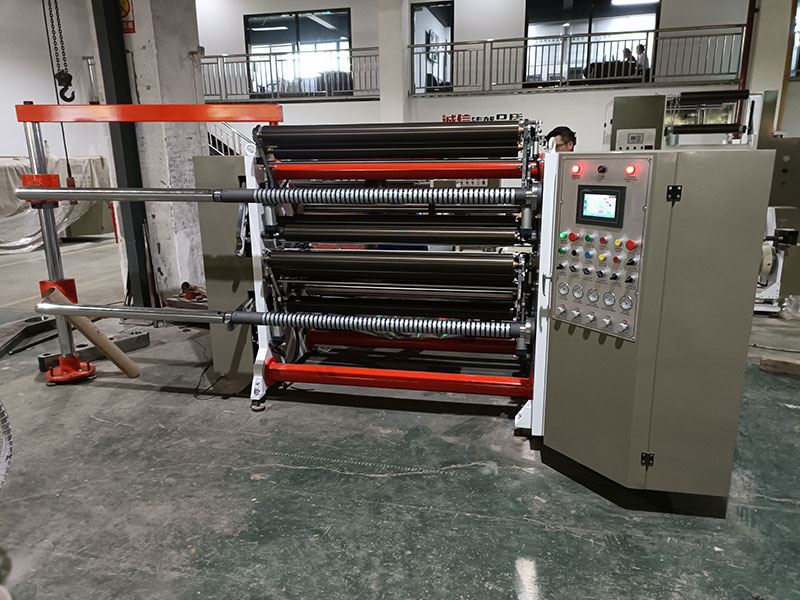

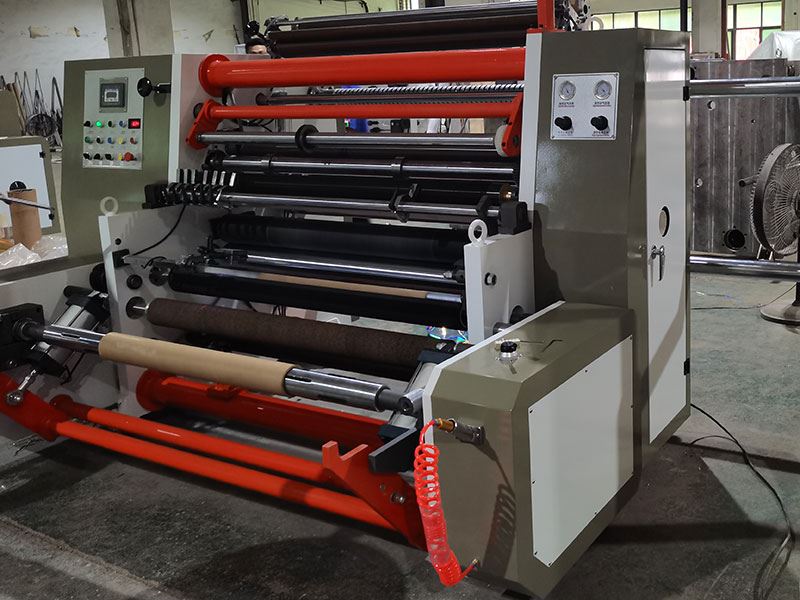

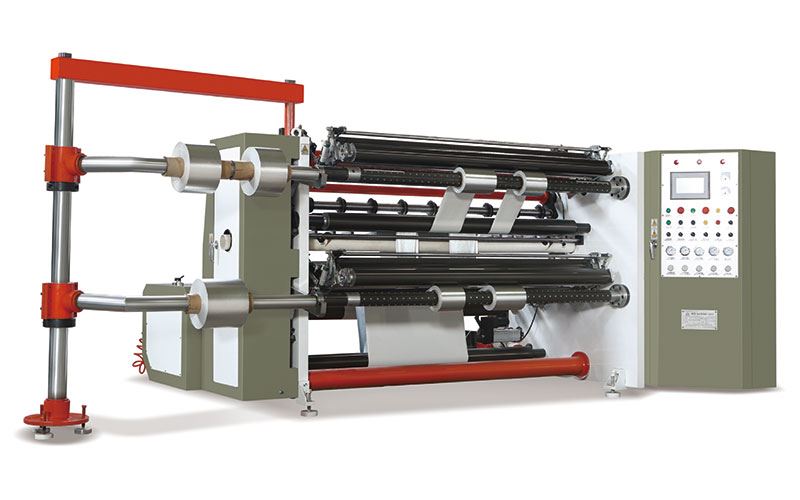

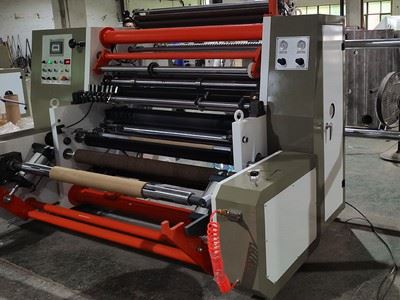

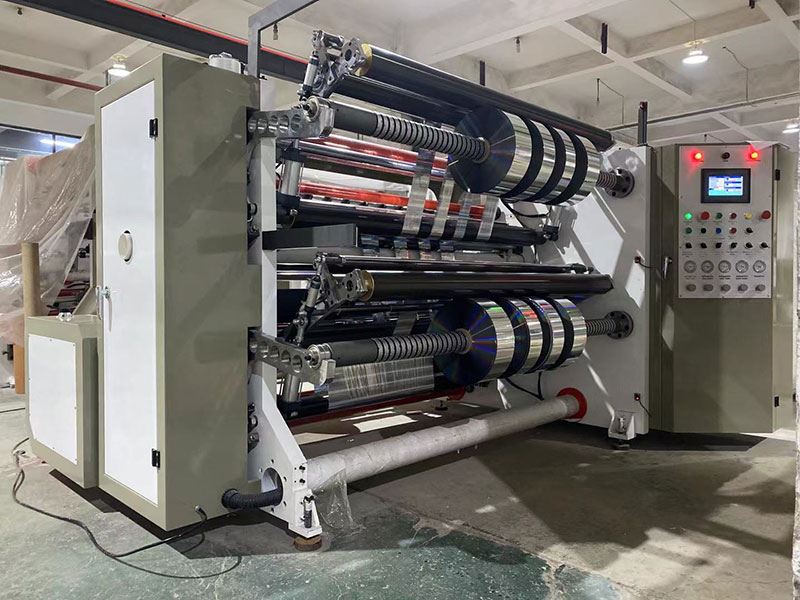

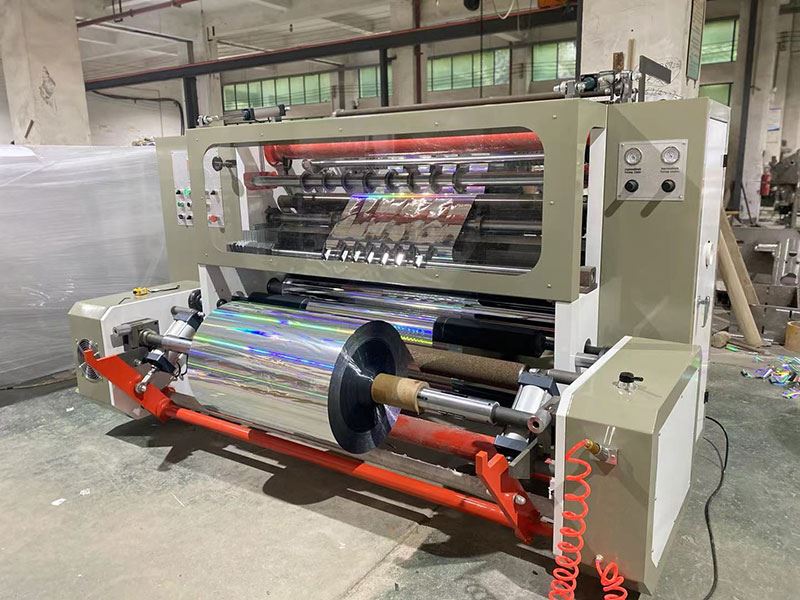

High Speed Slitting Machine (Pneumatic Loading), DFQ-A

This High Speed Slitting Rewinding Machine suits to the slitting of various ultra-large type coiled materials, such as paper, glass paper, aluminum-foil paper, aluminum foil, adhesive sticker, film (PVC, OPP, PET, CPP) for flexible packaging industry. It can slit and rewind different width of roll materials, which is equipped with PLC control, LPC or EPC web-guiding system. It has round knife and razor knife, respectively for paper slitting and film slitting.

Request a Quote

Features

The unwinding system can with LPC or EPC full automatic web-guiding system.

PLC and touch screen control

Round blade and razor blade slitting device

Guiding roller with imported and China best brand bearing

Rewinding pressing roller with constant pressing structure to ensure the stable rewinding.

User can choose unloading shelf system according need(option)

With cantilever type rewinding structure

Unwinder manual loading structure

Rewinding by Differential slip shaft(option)

YASKAWA Brand Frequency Converter for motor speed regulation(option)

Specification

Model	DFQ-A1	DFQ-A2	DFQ-A3
Max.unwinding diameter	￠600mm	￠600mm	￠600mm
Max.rewinding diameter	￠500mm	￠500mm	￠500mm
Max. width	1100mm or 1300mm
Min. slitting width	50mm	50mm	50mm
Web guiding control	Photocell	Photocell	Photocell
Precision	≤±0.5mm	≤±0.5mm	≤±0.5mm
Main driven system	Single motor	Double motor	Three motor
Control style	PLC+touch screen	PLC+touch screen	PLC+touch screen
Tension control style	Taper automatic regulation
Mechanical speed	0-250m/min	0-350m/min	0-350m/min
Unwinding shaft	Air shaft	Air shaft	Air shaft
Rewinding shaft	Air shaft	Differential slip shaft	Air shaft(standard) or Differential slip shaft (option)
Weight	About 2500kg	About 3000kg	About 3000kg
