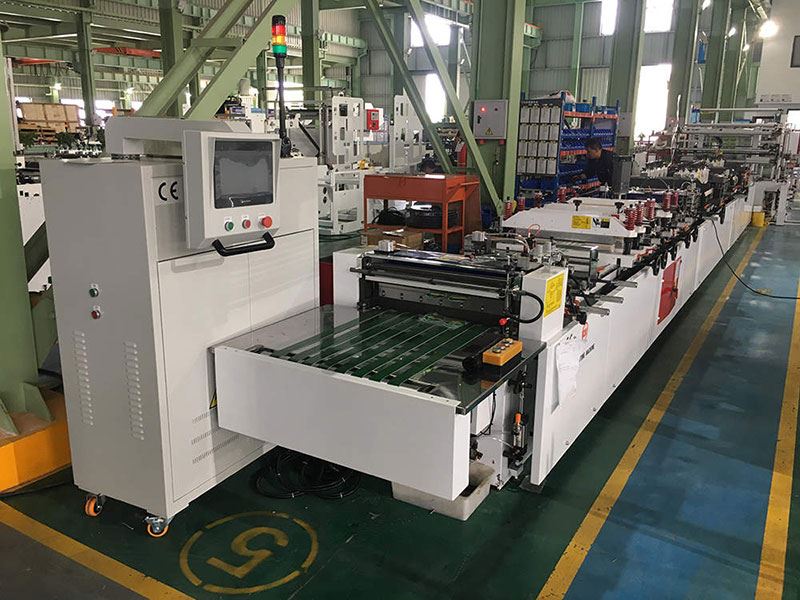

Heavy Duty Multifunctional Laminated Pouch Bag Making Machine, 600C+CS

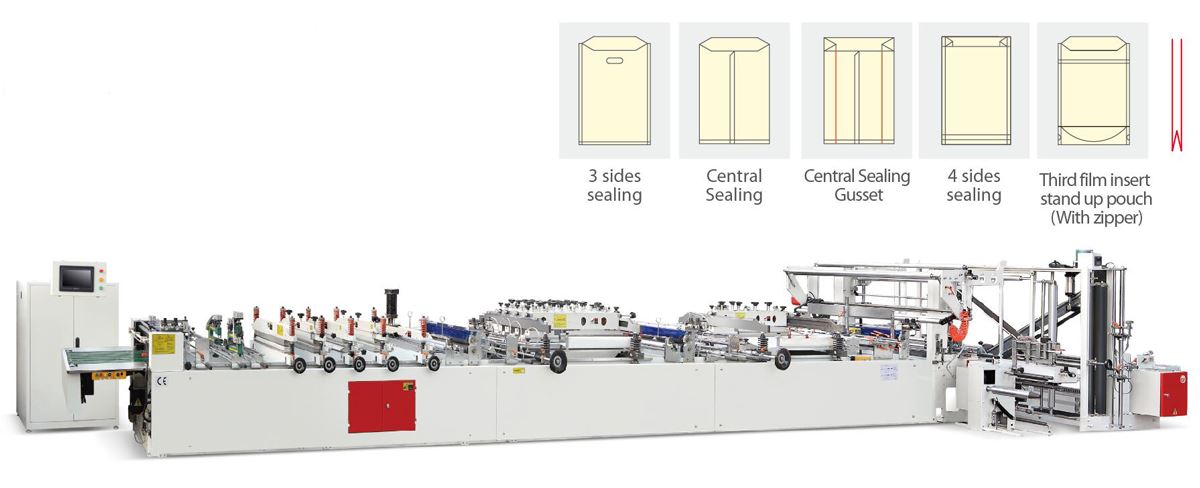

This multifunctional laminated film pouch bag making machine is for making 3 side sealing, zipper bag , 4 side sealing bag, stand up pouch bag (doypack bag) and center sealing bag.
Features
- Main electric scheme: 4 servo motor for traction, with PLC used Panasonic from Japan., Touch Screen from Taiwan; main driving is alternating current with YASKAWA from JAPAN Transducer, automatic constant tension for unwinding.
- Thermal-sealing knife’s quantity of heat:

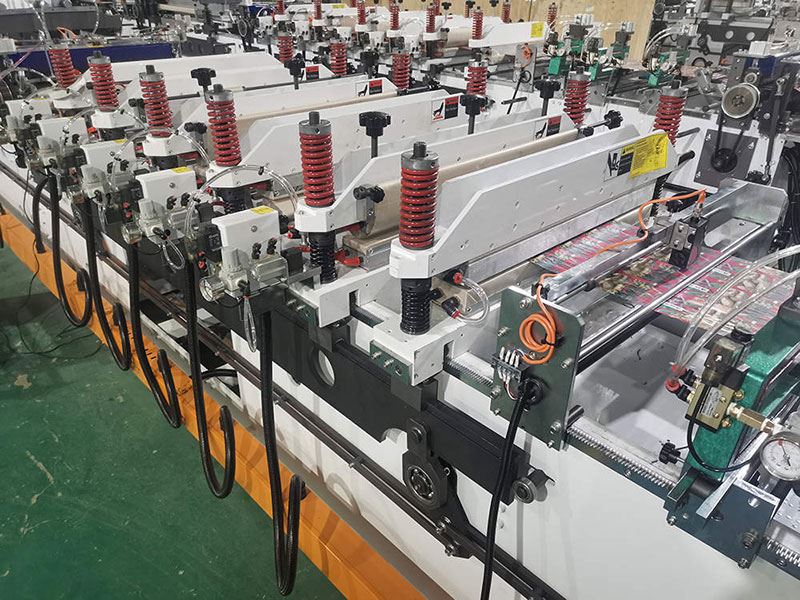

- Vertical-sealing adopts 5 groups for heating, cooling fluctuation from up and down;
- Vertical sealing adopt 1group for center sealing heating and zipper;
- Bottom sealing adopt 3 groups heating, 1 group for cooling .
- The type of control system: SSF-Ⅱ High speed laminating film bag making machine control system
Specification
| Speed of bag making | 40-140pcs/min |
| Line speed | ≤30 m/min (decided according the material) |
| Max width of bag | 580mm |
| Max height of bag | 380mm x Skip (the skip ≤6, which mean the max width size of bag is 380x6=2280mm ) |
| Dimension of roll material | ф600*1200mm (diameter* web-width) |
| Accuracy of orientation | ≤± 0.5mm |
| Quantity of temperature heating | 20 |
| Bound of temperature | 0-300 ℃ |
| Total power | 52kw |
| Overall dimension | (L*W*H) 12500×2450×1920mm |
| Weight of machine | 5900 kg |
| Color | white color of machines, red color for cover and door |
| Air compressor | 6HP |
-
-
