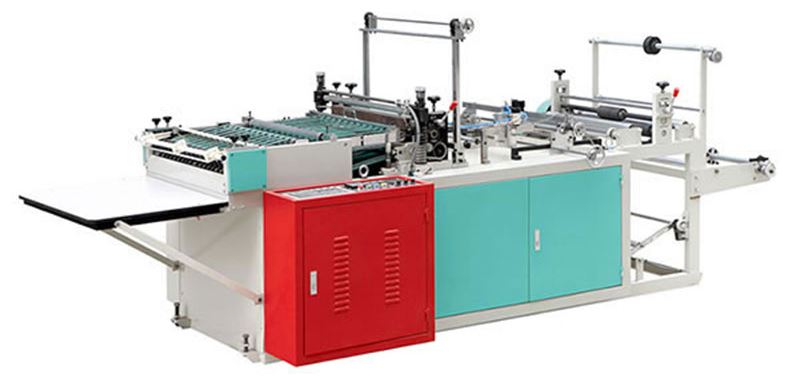

Side Sealing & Cutting Bag Making Machine, DRQ (OPP Bag Machine)
This side sealing bag making machine is suitable for heat cutting and side sealing printed or without printed plastic film (OPP, PP, PE, PET), it is a kind of ideal equipment for making garment bag, towel bag, bread bag and cosmetic bag, etc.
Features
- The whole machine adopts microcomputer control and material pulling by step motor (option: Servo motor control system)
- With the functions: length positioning, photocell tracking, automatic stop when lose tracking mark.
- Add double side adhesive tape in same process, automatic pneumatic punching (ф6~8mm).
- Heat dot sealing, automatic constant control temperature, with firm and smooth sealing.
Specification
| Model | DRQ500 | DRQ600 | DRQ700 | DRQ800 | DRQ1000 |
| Bag length | 50~700mm | 50~700mm | 50~700mm | 50~700mm | 50~700mm |
| Max width | 500mm | 600mm | 700mm | 800mm | 1000mm |
| Speed | 60~200pcs/min depend on bag making size and material | ||||
| Total power | 3.5kw | 4kw | 5kw | 5.5kw | 6kw |
| Dimension | 3.7x1.2x1.2m | 3.7x1.3x1.2m | 3.7x1.4x1.2m | 3.7x1.5x1.2m | 3.7x1.7x1.2m |
| Weight | 800kg | 850kg | 900kg | 950kg | 1000kg |
-
-
Gravure Printing Machine
- Automatic Register Rotogravure Printing Machine (Rotogravure Press), YAD-A5
- Automatic Color Register Rotogravure Printing Machine, YAD-A2
- Auto Color Register Rotogravure Machine (Rotogravure Printer), YAD-A3
- Economical Type Auto Register Rotoravure Printing Press, YAD-H
- Auto Register Rotogravure Printing Machine, YAD-K3
- Electronic Shaft Rotogravure Printing Machine
-
Gravure Printing Machine
-
Dry Type Laminating Machine
- High Speed Dry Type Laminating Machine, GF-B
- High Speed Dry Type Laminator, GF-A
- Dry Type Laminating Machine, GF-Q
- Solventless Film Lamination Machine
-
Shrink Sleeve Label Making Machinery
- Shrink Sleeve Label Gluing Machine, GSHZ250 (Mold Adjustable)
- Sleeve Label Inspection Machine, GSJP250
- High Speed Sleeve Label Cutting Machine, QD-350
- Shrink Sleeve Label Seaming Machine (Mold-less Type), GSHZ300C
-
Automatic Slitting Machine
- Automatic Slitting Machine, WFQ
- PLC Control High Speed Automatic Slitting Machine, FQL
- High Speed Slitting Machine (Pneumatic Loading), DFQ-A
- High Speed Aluminum Foil Embossing Machine, DYW
- Aluminum Foil Lid Punching Machine, MQCB
-
Three Side Sealing Bag Making Machine
- Three Side Sealing Bag Making Machine, 400A
- Heavy Duty Multifunctional Laminated Pouch Bag Making Machine, 600C+CS
- Pouch Bag Making Machine, 600C+FD
- Heavy Duty Type Three Side Sealing Machine, 600ZF+SZ
-
Plastic Bag Making Machine
- Plastic Roll Bag Making Machine (Microcomputer Controlled High Speed), GJHD
- High Speed Heat Cutting Side Sealing Bag Making Machine, DRQ-C700
- Flower Sleeve Bag Making Machine, DRQ-F
- Double Lane Side Sealing & Cutting Bag Making Machine, DRQ-D800/1000
- High Speed Plastic Shopping Bag Making Machine (T-shirt Bag), YFG-600/800
- Multifunctional Computer Control Heat Cutting Side Sealing Machine, DRQ-G
- Side Sealing & Cutting Bag Making Machine, DRQ (OPP Bag Machine)
- Film Folding Rewinding Machine, SZS
- High Speed Double Lane Plastic T-shirt Bag Making Machine, QF-450*2
-
Computer Non-woven Bag Making Machine

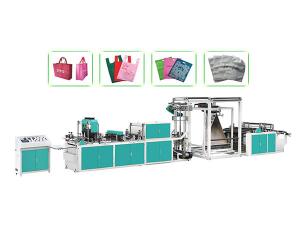

- Multifunctional Non Woven Bag Making Machine
