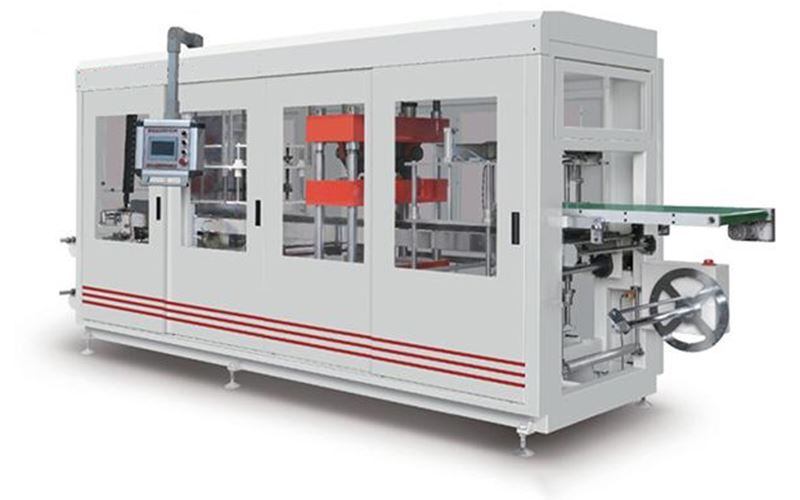

Plastic Thermoforming Machine, RMC-600/400

Plastic Thermoforming Machine, RMC-600/400
Inquiry Form
Features:
RMC-600/400 plastic thermoforming machine is a newly developed product that based on the current market demands. It is a combination of mechanical, electrical and pneumatic components and the whole was controlled by micro PLC. The machine has man-interface operation. Combines heating, forming, cutting & stacking into one process.
Application Area:
It is suitable for forming HIPS, PS, PVC, PET, PP sheet that can produce electronic component tray, medicine injection tray, oral liquid tray, mobile phone holder tray, cakes tray cookies & other blister tray.
Main Technical Parameters:
Model RMC-600/400 (3 Stations)
Max. Forming Area 620*420mm
Max. Forming Depth 90mm
Sheet Thickness Range 0.15-1mm
Max. Sheet Width 660mm
Air Pressure 0.6~0.8Mpa
Speed 360-900 cycles/h
Heater Power 14kw (Upper Heater)
Cutting Pressure 40tons
Upper Mold Table Stroke 110mm
Lower Mold Table Stroke 120mm
Max. Mold Depth 90mm
Power 3 Phases 380V/50HZ
Max. Cutting Length 6000mm
Machine Total Power 20kw
Overall Dimensions 5050*1500*2200mm
Weight 3500kg
