High Speed Vacuum Forming Machine, DXS Series

High Speed Vacuum Forming Machine, DXS Series
Inquiry Form
1. Description :

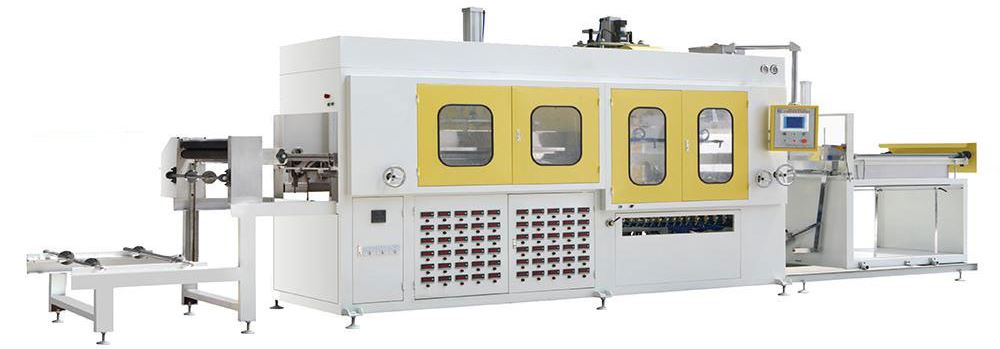

DXS Series Automatic Computerized High-Speed Vacuum Forming Machine (Thermoforming machine). It is designed by the principle of mechanical-electrical-
pneumatic integration. Adopts PLC control system, panel and AC voltage meter adjustment. It is full-automatic forming equipment for thermoforming plastic sheet includes feeding, heating; forming, cooling, mold ejecting, cutting at one blow. These machines have luxury configuration and gets reliable performance and handy operation.
Application Area:

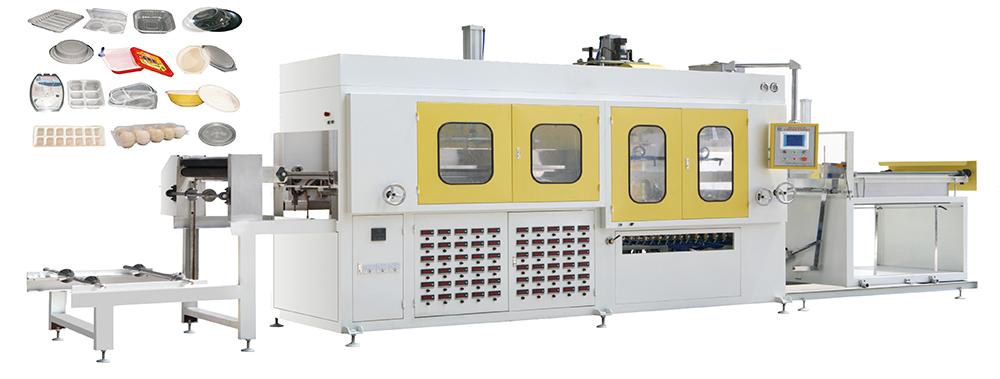

It is suitable for thermoforming PS, HIPS, PVC, PET, PP, flocking sheet that can produce varieties of blister package and blister tray. For example: egg tray, curatorial injection tray, oral liquid tray, mobile telephone tray, cookies tray, egg tray, one-off tableware etc.
2. Main Technical Specification :
Model DXS-700/1200A-1 DXS-700/1200A-2
Length of forming 760-1200mm 760-1200mm
Width of forming 500-700mm 500-700mm
Height of forming ≤165 mm ≤165 mm
Production speed 60-720 Cycles/h 60-720 Cycles/h
Power consumption of oven 24Kw Upper oven 24Kw Lower oven 18Kw
Power consumption of vacuum pump motor 3Kw 3 KW
Pump speed of vacuum 100m3/h 100m3/h
power consumption of air compressor 15KW 15KW
Capacity of air compressor 1.5m3/min 1.5m3/min
Voltage 380/220V 50HZ 380/220V 50HZ
Overall dimensions 7950x1450x2550mm 7950x1450x2550mm
Weight 3000kg 3500Kg
