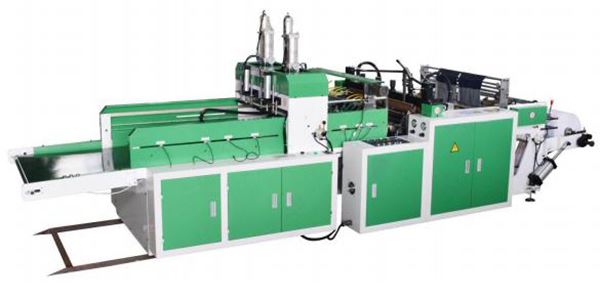

Computer Controlled Automatic Bag Making Machine

Computer Controlled Automatic Bag Making Machine
Inquiry Form

Description of Computer Controlled Automatic Bag Making Machine:

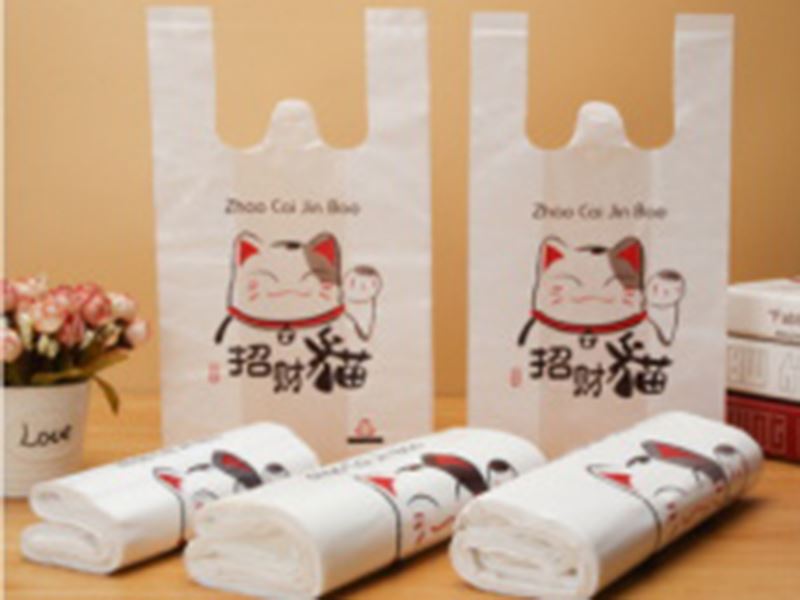

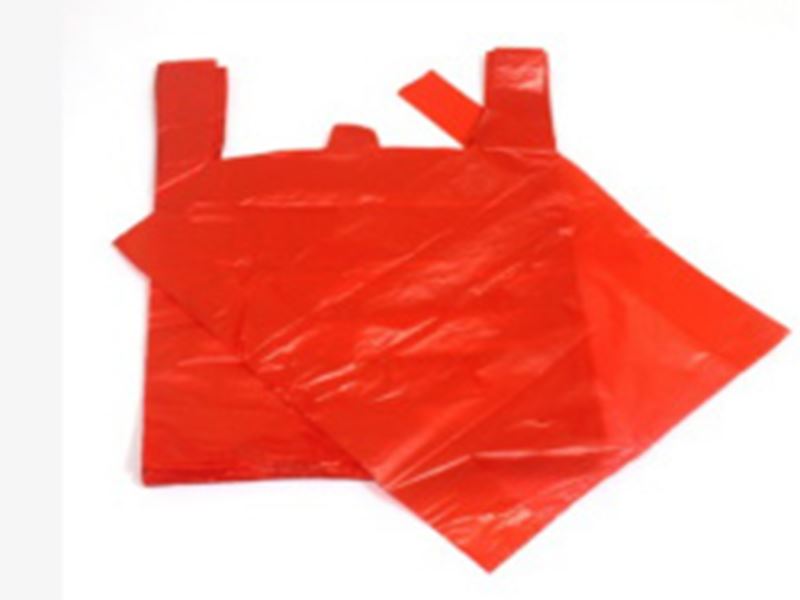

1. This plastic bag forming machine is ideal for making vest bags by using rolled films of LDPE and HDPE etc.
2. PLC control, stepper (servo) motor to fix the length
3. Photoelectric tracking
4. Automatic finished product conveying

Technical Specification of Computer Controlled Automatic Bag Making Machine:
Model HDHQ -500 HDHQ -700
Max. Bag Width 450mm 650mm
Max. Bag Length 900mm 900mm
Bag-Making Speed 30-140pcs/min 30-140pcs/min
Main Motor Power 1.1kw 1.1kw
Machine Weight 1400kg 1500kg
Overall Dimensions (L*W*H) 4400*1100*1850mm 4400*1300*1850mm
