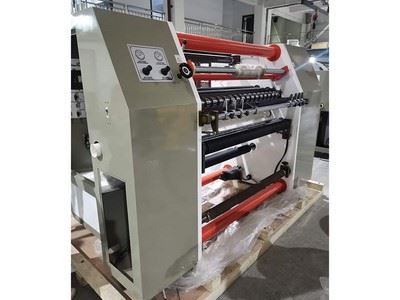

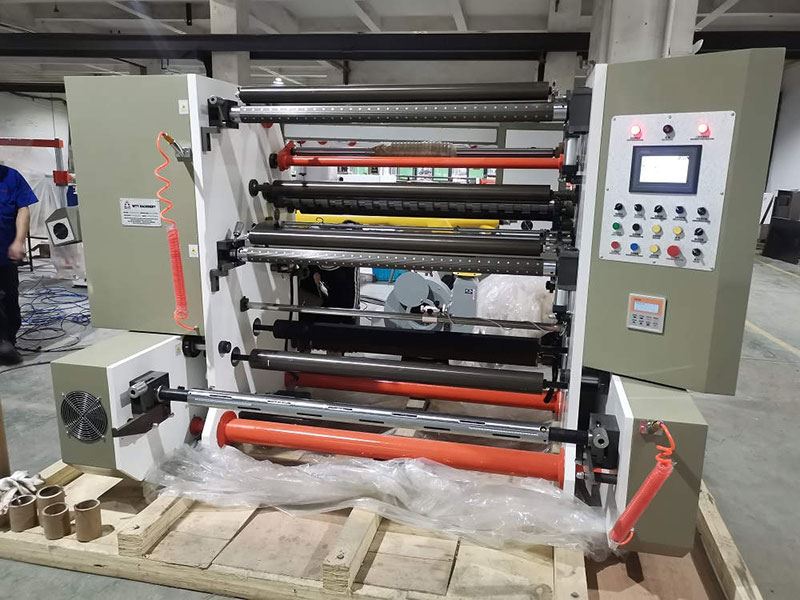

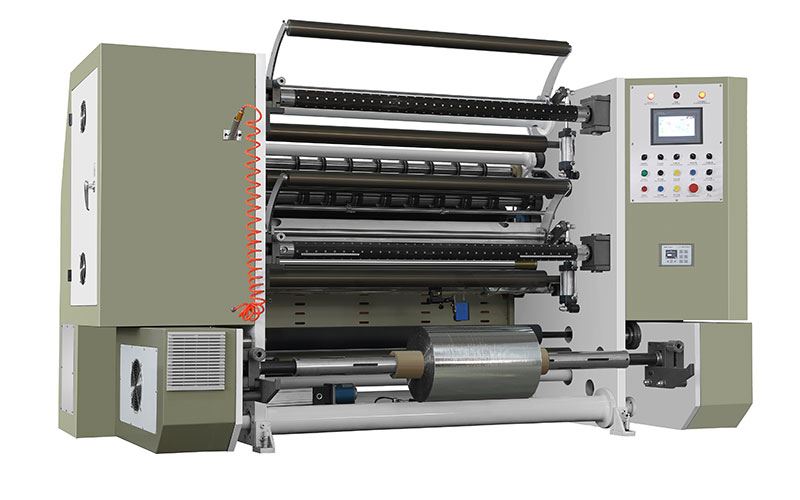

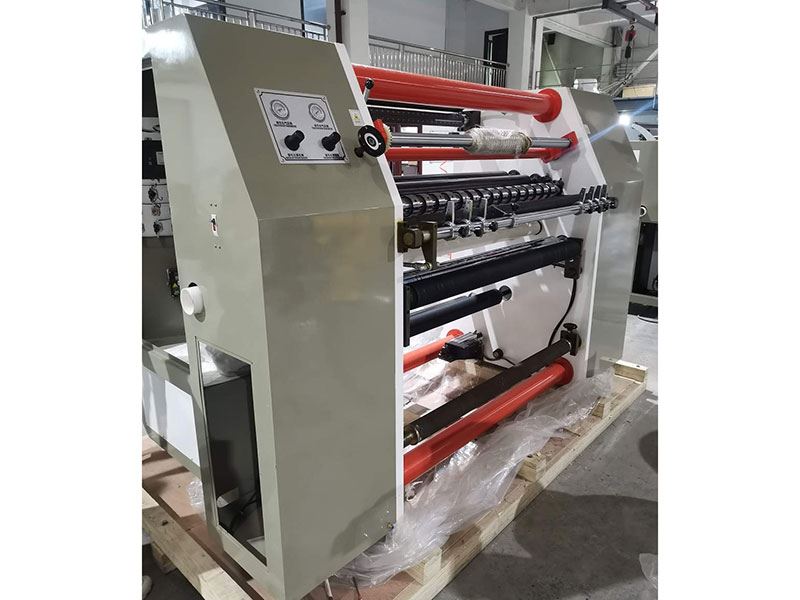

FQL-1000/1300 Micro-computer Control High Speed Automatic Slitting Machine

Description:
The FQL micro-computer control high speed automatic slitting machine is designed and produced for slitting and rewinding various types of plastic film, glassine, paper and laminated films.

Main characteristics:
1. High speed, high precision slitting
2. Main motor frequency inverter for speed regulation
3. Metered counting function
4. Air shaft for rewinding
5. Photocell automatic web-guiding for unwinding
6. Unwinding automatic tension control
7. Touch screen showing and set working parameter

Specifications:
Model FQL1000 FQL1300
Max unwinding diameter ∮600mm, Paper cone: ∮76mm ∮600mm, Paper cone: ∮76mm
Max unwinding width 1050mm 1350mm
Max rewinding diameter ∮450mm, paper core: ∮3" ∮450mm, paper core: ∮3"
Rewinding width 40~1000mm 40~1300mm
Max slitting speed 270m/min 270m/min
Slitting thickness 10~75um (razor blade); 100~350um (disc blade)
Slitting precision ±0.15mm ±0.15mm
Automatic tension control range 3~30kg 3~30kg
Total power 4.5kw 4.5kw
Machine weight 2800kg 3000kg
Overall dimension 1500x2300x1500mm 1500x2600x1500mm
