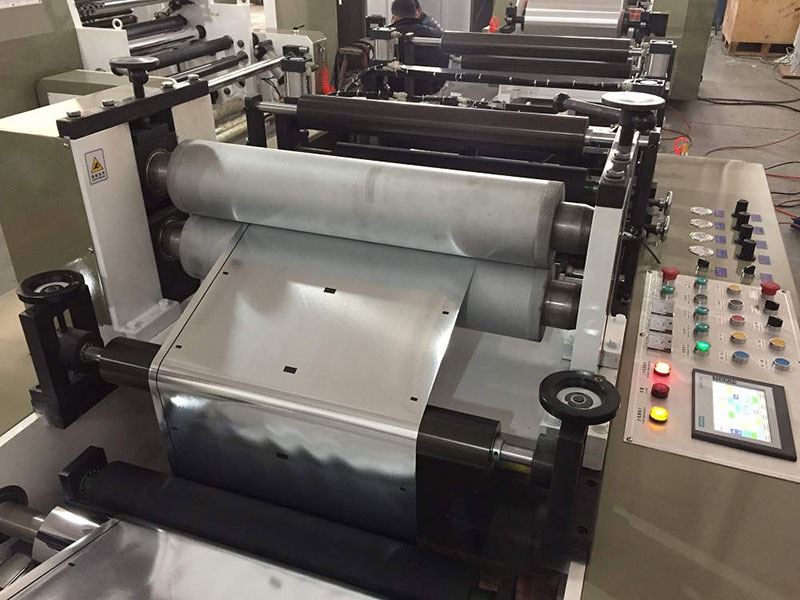

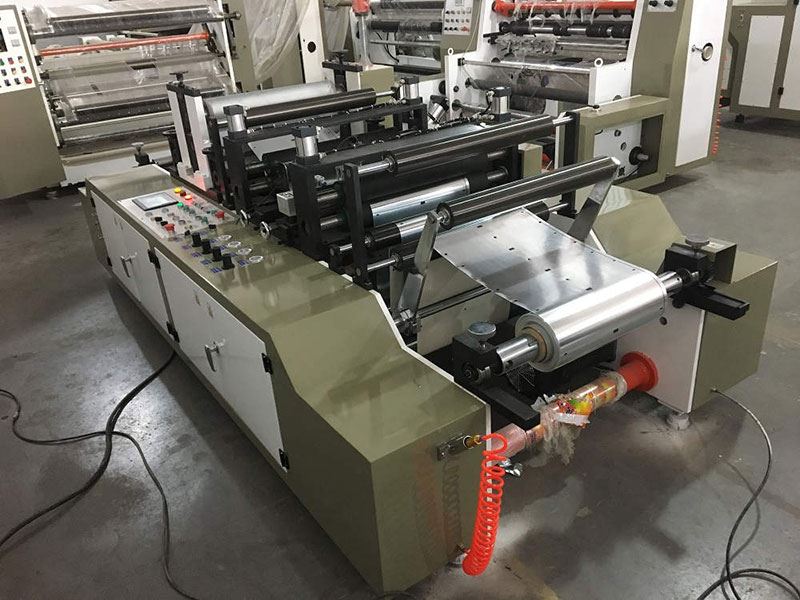

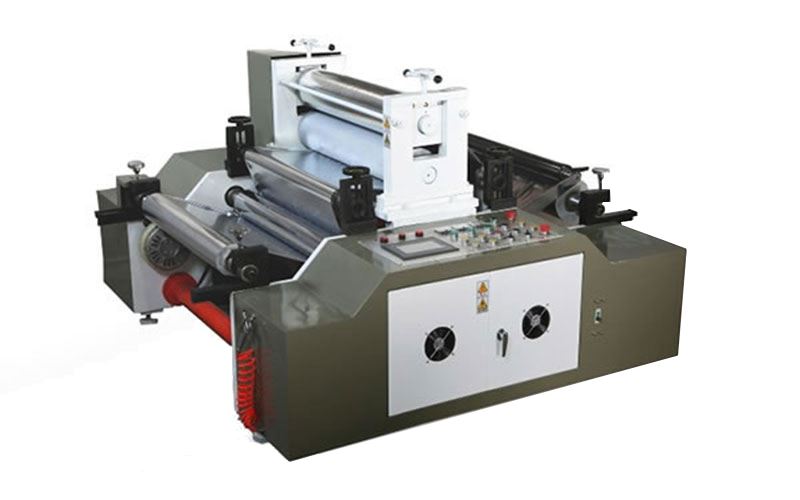

DYW High Speed Aluminum Foil Embossing Machine
Usage:
This embossing machine used to emboss reel type Metalized paper and aluminum foil at max speed 200m/min.
| Model | DYW600 | DYW800 |
| Embossing material | Aluminum foil | Aluminum foil |
| Embossing width | 50mm-600 mm | 50mm-800 mm |
| Mechanical speed | 250m/min | 250m/min |
| Max speed | 200m/min | 200m/min |
| Unwinding diameter | ￠600mm (3 inch air shaft) | ￠600mm (3 inch air shaft) |
| Rewinding diameter | ￠600mm (3 inch air shaft) | ￠600mm (3 inch air shaft) |
| Traction motor | 3.7kw frequency convention motor | 3.7kw frequency convention motor |
| Rewinding motor | 3.7kw frequency convention motor | 3.7kw frequency convention motor |
| Driven style | synchronous belt | synchronous belt |
| Guiding roller | ￠80x850mm hard AL alloy HV700 | ￠80x850mm hard AL alloy HV700 |
| Mechanical structure | steel plate | steel plate |
| Working power | 380V/3P/50Hz 5 wires | 380V/3P/50Hz 5 wires |
| Total power | About 8kw | About 9kw |
| Machine weight | About 1000kg | About 1200kg |
| Overall dimension | 2000X1800X1200mm | 2000X2000X1100mm |
Equipments:
1) Main control: China INOVANC Brand PLC and MCGS brand touch screen, with function of meter counting and automatic stop when reach preset length, rest length detecting, linear speed regulation.
2) Rewinding tension: adopt 3.7kw motor, INOVANCE brand frequency converter and PLC control, with tension preset system, full automatic taper tension control.
3) Embossing tension: with 100N/M magnetic clutch PLC connection control.
4) Unwinding adopt 50N/M magnetic brake and PLC taper calculation control, and with Dynamic tension control function.
5) Main motor 3.7kw AC 3 phase frequency conversion motor control by INOVANCE frequency converter.
6) Unwinding and rewinding lock: Pneumatic style
7) Traction: with pneumatic pressing traction style
8) Rewinding pressing roller
9) Low voltage electric component Chinese best brand and imported.
10) Embossing system: steel roller to steel roller embossing unit
