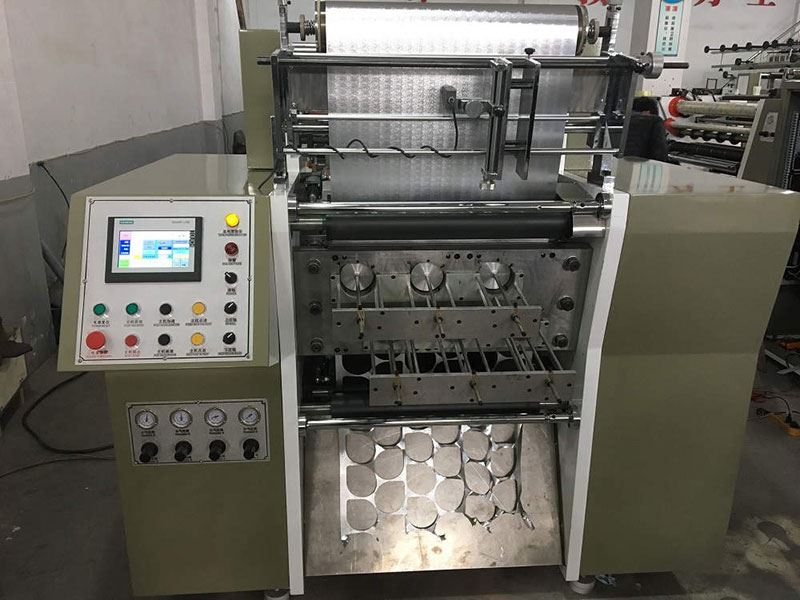

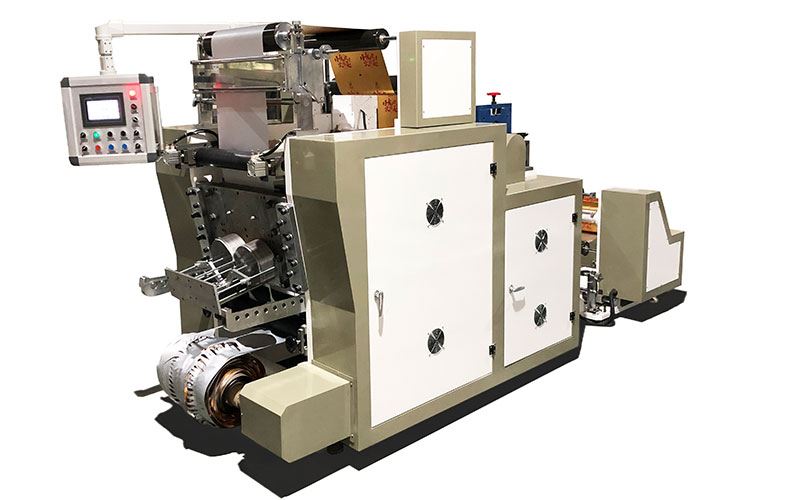

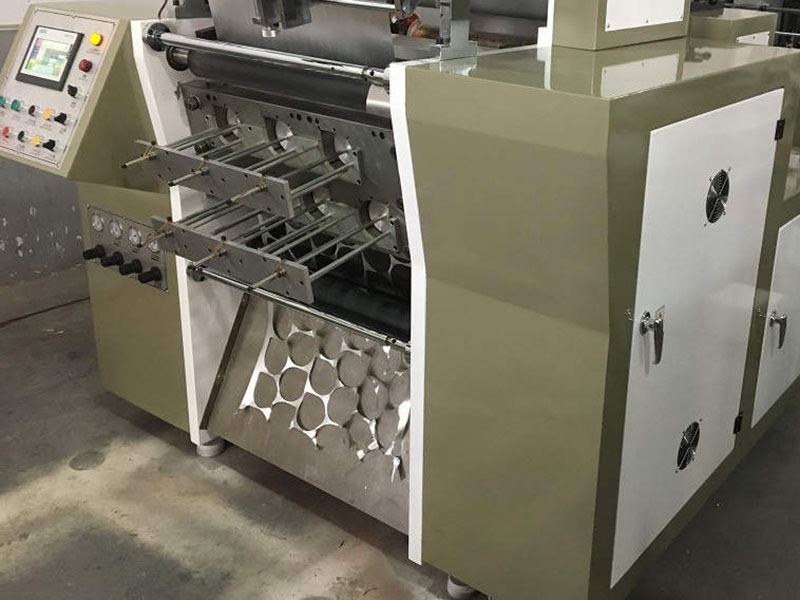

MQGB-A Aluminum Foil Lid Punching Machine

Description:
This Punching machine can punch not only aluminum foil but also PE, PP, PET laminated aluminum foil. The punching mold is customized for minimizing the scrap and can be used for a long time.

Equipments:
1) Main control: China INOVANC Brand PLC and MCGS brand touch screen.
2) Traction motor: adopt 0.75kw independent motor INOVANCE frequency converter and PLC link control.
3) Mold driven motor: with 3.7kw independent motor INOVANCE frequency converter and PLC link control.
4) Length control motor: 3kw servo motor,INOVANCE PLC Link control.
5) Unwinding with 50NM magnetic brake tension control.
6) Main motor 3.7kw AC 3 phase frequency conversion motor control by INOVANCE frequency converter.
7) Unwinding lock: Pneumatic style
8) Traction: with pneumatic pressing traction style

Specification:
Model MQGB-320A MQGB-620A
Cutting material Aluminum foil, plastic film,paper (0.035~0.2mm)
Cutting effective size 350*300mm 580*320mm
Mechanical speed 120times/min
Max speed 100times/min
Unwinding diameter ¢600mm (3 inch air shaft)
Traction motor 0.75kw frequency convention motor
Mold driven motor 3.7kw frequency convention motor
Length control motor 3kw servo motor
Driven style synchronous belt
Precision ± 0.5mm
Web-guiding accuracy ± 0.5mm 120mm
Guiding roller ¢ 100x350mm hard AL alloy HV700 ¢ 100x620mm hard AL alloy HV700
Mechanical structure 40mm thickness steel plate
Working power 380V/3P/50Hz 5 wires
Total power About 6kw About 8kw
Machine weight About 1500kg About 2000kg
Overall dimension 2000X1400X1700mm 2400X1700X1700mm
