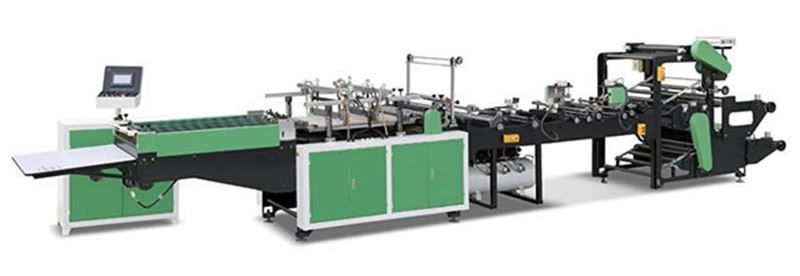

DRQ-F Flower Shaped Bag Making Machine

Application:
This machine is suitable for various kind of material such as BOPP,CPP , LDPE, HDPE,etc. It is the professional equipment which is used for making such special-shaped bags as flower bags,umbrella bags,tie bags,sandwich bags and so on.

Features:
Touch screen operation,Panasonic brand PLC control,with the function of photocell tracking, fixed-length ,automatic counting, automatic stop of material breaking off,alarming when the color-mark is lost , automatic stop until the sealing in the highest position.
Adopt YASKAWA brand servo motor driving
Driving system adopts 5 sets of YASKAWA brand frequency inverter and Taiwan brand three-phase motor
Printed bags tracking use Taiwan brand photocell switch

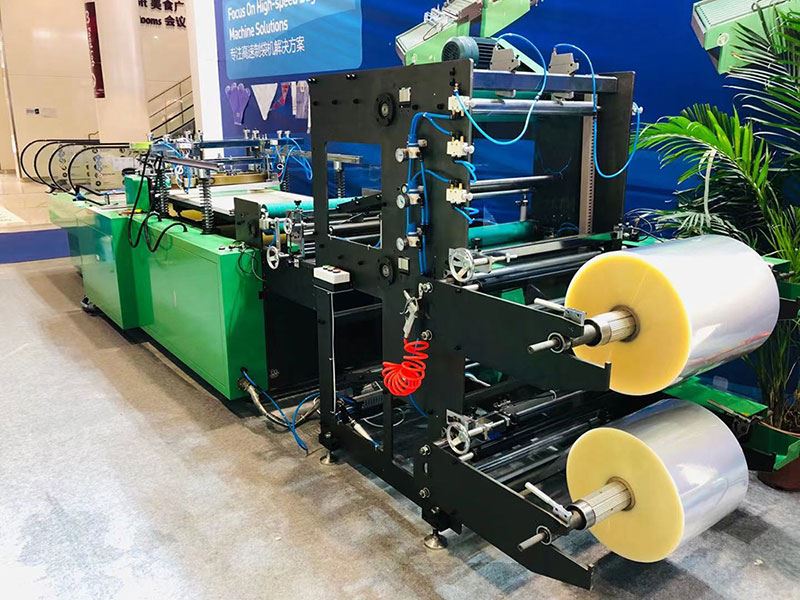

Unwinding adopts air shaft, magnetic power brake control,with EPC control system.
Equipped with punching device, water-cooling device, dotted line spots breaking device, bottom sealing device, can meet the various shaped bags production
Adopt imported silica gel plate conveying

Parameters:
