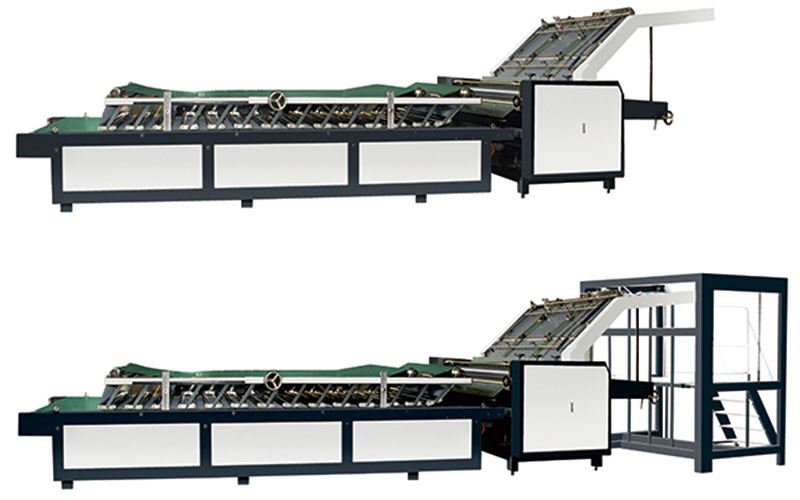

Semi-automatic Carton Laminating Machine

Semi-automatic Carton Laminating Machine
Inquiry Form
Features of Semi-automatic Carton Laminating Machine:
1. Adopt imported transducer to realize stepless speed change

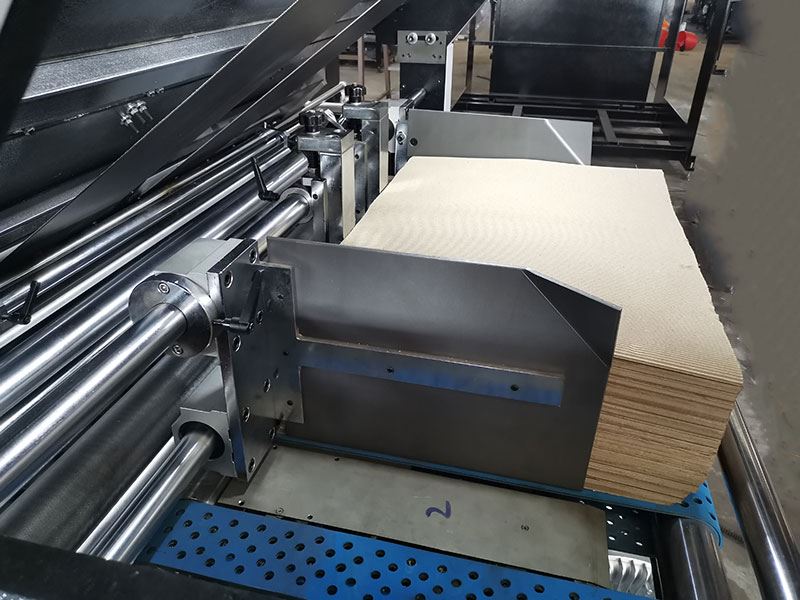

2. Bottom paper can be automatically sucked and fed.
3. If the face paper pulls ahead, it can be adjusted.
4. Automatic glue supplying

Main Process: Gluing, Pasting, Prepressing, Forming

Application of Semi-automatic Carton Laminating Machine:
This carton laminator is mainly used for accurately and efficiently laminating color printing face paper and bottom paper (paperboard or corrugated paper). And the bottom paper will never pull ahead.

Technical Specification of Semi-automatic Carton Laminating Machine:
Model FMT-1300 FMT-1450
Max. sheet size 1200×1100mm 1350×1100mm
Min. sheet size 320×320mm 320×320mm
Machine speed 0-60m/min 0-60m/min
Total power 7kW 7.8kW
Overall dimension 7470×1970×1420mm 7470×2020×1420mm
Weight 4200kg 5200kg
