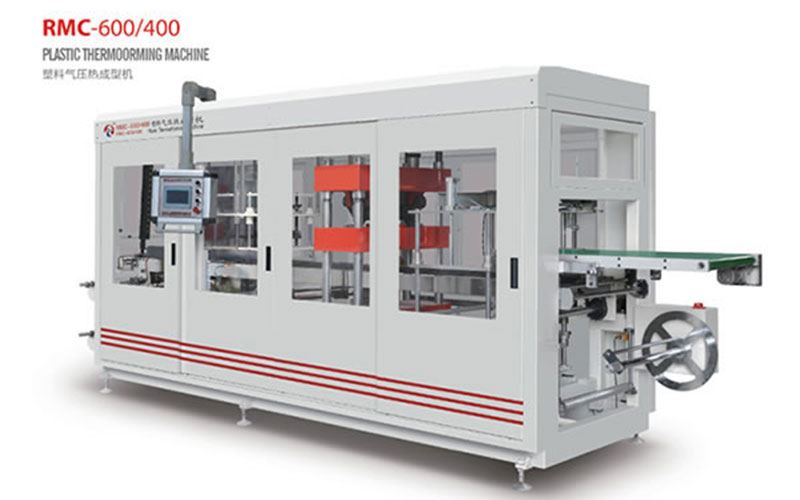

RMC-600/400 Plastic Thermoforming Machine
This product has been discontinued and removed from our shelves.
Features:
RMC-600/400 plastic thermoforming machine adopts the most advanced plastic thermoforming technology and was developed to be a forming machine of high production efficiency. It is a combination of mechanical, electrical and pneumatic components and the whole was controlled by micro PLC. The machine has man-interface operation. Combines heating, forming, cutting & stacking into one process.
Application Area:
It is suitable for forming HIPS, PS, PVC, PET, PP sheet that can produce boxes, trays, fast food boxes, dishes, lids, cookies tray, mobile phone tray & other blister tray.
Specification
| Model | RMC-600/400 (3 Stations) |
| Max. Forming Area | 620*420mm |
| Max. Forming Depth | 90mm |
| Sheet Thickness Range | 0.15-1mm |
| Max. Sheet Width | 660mm |
| Air Pressure | 0.6~0.8Mpa |
| Speed | 360-900 cycles/h |
| Heater Power | 14kw (Upper Heater) |
| Cutting Pressure | 40tons |
| Upper Mold Table Stroke | 110mm |
| Lower Mold Table Stroke | 130mm |
| Max. Mold Depth | 90mm |
| Power | 3 Phases 380V/50HZ |
| Max. Cutting Length | 6000mm |
| Machine Total Power | 20kw |
| Overall Dimensions | 5050*1500*2200mm |
| Weight | 3500kg |
-
