RHC Series Plastic Thermoforming Machine
This product has been discontinued and removed from our shelves.

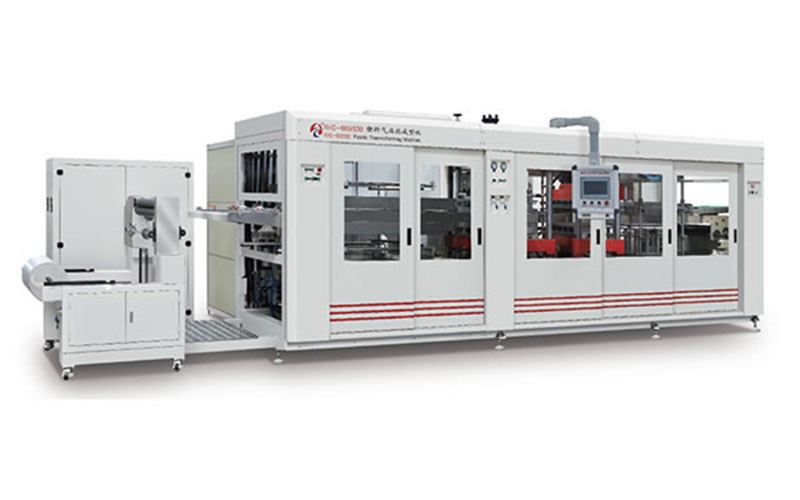

RHC-600/500 Plastic Thermoforming Machine
Forming & Punching Station
RHC-600/500 plastic thermoforming machine adopts the most advanced plastic thermoforming technology and was developed to be a forming machine of high production efficiency.It is a combination of mechanical, electrical and pneumatic components and the whole was controlled by micro PLC. The machine has man-interface operation. Combines heating, forming, cutting into one process.
Application Area:
It is suitable for forming HIPS, PS, PVC, PET, PP sheet that can produce boxes, trays, fast food boxes, dishes, lids, cookies tray, mobile phone tray & other blister tray.
Specification
| Max. Forming Area | 680*550mm |
| Max. Forming Depth | 100mm |
| Sheet Thickness Range | 0.15-1.5mm |
| Max. Sheet Width | 7200mm |
| Air Pressure | 0.8Mpa |
| Speed | 360-1200 cycles/h |
| Heater Power | 38kw (Upper Heater) 29kw (Lower Heater) |
| Punch Pressure | 80tons |
| Upper Mold Table Stroke | 140mm |
| Lower Mold Table Stroke | 140mm |
| Max. Mold Depth | 140mm |
| Power | 3 Phases 380V |
| Max. Hydraulic Pump Pressure | 16Mpa |
| Max. Cutting Length | 9550mm |
| Machine Total Power | 88kw |
| Overall Dimensions | 9500*2600*2700mm |
| Weight | 7500kg |
-
