Automatic High Speed Vacuum Forming Machine A Series
This product has been discontinued and removed from our shelves.

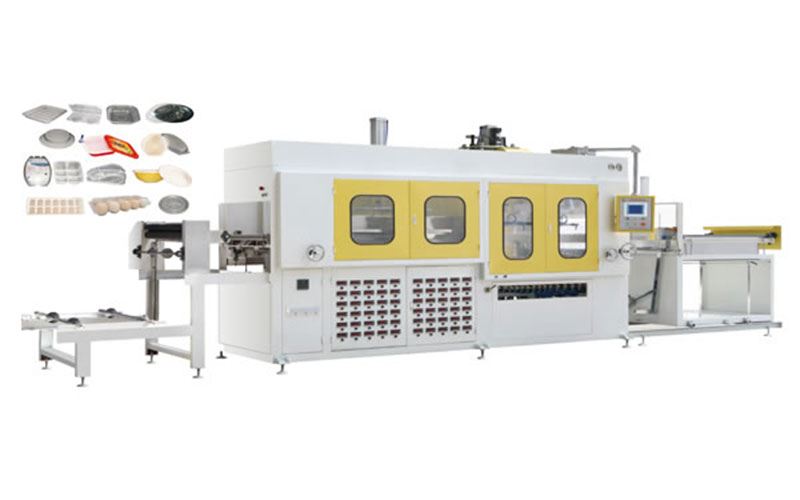

A Series Automatic High Speed Vacuum Forming Machine
Description of Automatic High Speed Vacuum Forming Machine:
1. Adopt PLC with touch screen control system
2. Adopt digital voltmeter
3. Perform the processes of feeding, heating, forming, cooling, mold ejecting and cutting at one stroke
Application of Automatic High Speed Vacuum Forming Machine:
1. This kind of plastic machine is mainly suitable for thermoforming PS, HIPS, PVC, PET, PP, flocking sheet
2. It is widely used for producing various trays and inside linings, for example, curatorial injection tray, oral liquid tray, inner lining of mobile, one-off tableware, egg tray etc.
Specification
| Model | DXS-700/1200A-1 | DXS-700/1200A-2 |
| Length of forming (mm): | 760-1200mm | 760-1200mm |
| Width of forming (mm): | 500-700mm | 500-700mm |
| Height of molding (mm): | ≤165mm | ≤ 165mm |
| Production speed(cycles/h): | 60-720cycle/h | 60-720cycle/h |
| Power consumption of oven: | 24 KW | 24 KW(Upper) 18 KW(Lower) |
| Power consumption of vacuum pump motor: | 3 KW | 3 KW |
| Vacuum pump capacity: | 100m3/h | 100m3/h |
| Power consumption of air compressor(kw): | 7.5 KW | 7.5 KW |
| Air displacement of air compressor (m3/min): | 0.8 m3/min | 0.8 m3/min |
| Voltage(V/HZ): | 380/220V 50HZ | 380/220V 50HZ |
| Overall dimensions (mm): | 7950*1450*2550mm | 7950*1450*2550mm |
| Weight (kg): | 3000Kg | 3500Kg |
-
