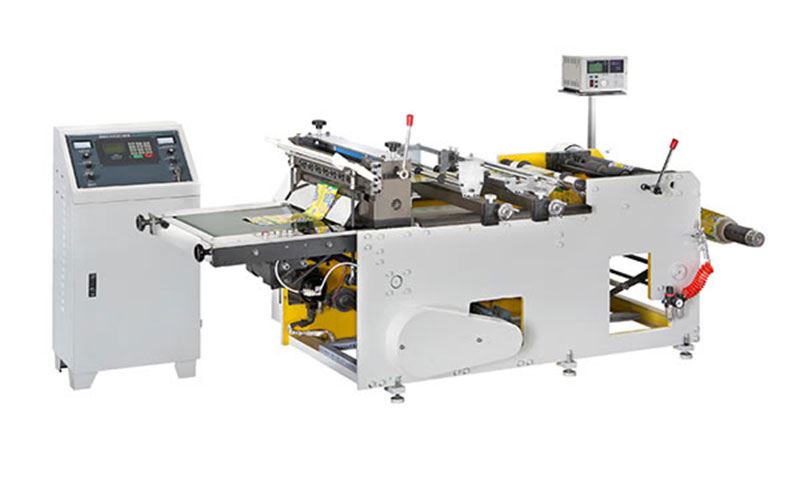

QD-300 High-speed Shrink Label Cutting Machine
The high speed shrink label cutting machine is utilized for plastic film and paper sheet cutting operations. It is especially suited for the cutting of PVC/PET label cutting.
1. Thick frame plate to ensure the stable running at high speeds.
2. Employs a photocell controller for quantity and position control.
3. The AC motor and inverter allows for variable machine speed.
4. 3 inch air shaft unwinding
1. Servo driving system, timing belt transmission for material feeding.
2. Crossway perforating and lengthwise perforating.
3. Conveyor belt collection table.
4. Magnetic brake tension control, automatic constant control tension
|Max Effective width||350mm|
|Working speed||100~480 time/min|
