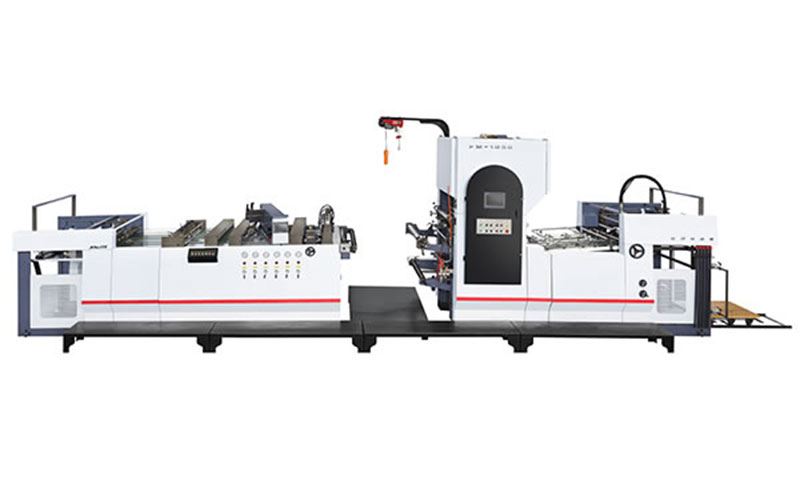

FM1050D Automatic Thermo Film Laminating Machine
This product has been discontinued and removed from our shelves.
Main Features:
1) High speed feeder ensures a stable and precise sheet flow.
2) Non-stop feeding and stacking significantly reduces preparation time.
3) Servo controlled overlap unit ensures accuracy.
4) Efficient oil heating system keeps the temperature of the pressing roller uniform and stable.
5) Chrome high brightness coupling rollers to coat evenly and efficiently.
6) Strong heated air drying system for rapid, efficient drying.
7) Anti-curl unit suitable for thin paper lamination.
8) Touch screen control for simple, convenient operation.
9) Elegant and unique appearance designed by a professional industrial design company.
Model | FM-1050D |
Max.sheet size | 1050×820mm |
Min.sheet size | 390×320㎜ |
Paper weight | 100-500g/㎡ |
Speed | 10-80m/min(according to the material, printing color and printing area) |
Total power | 75kw |
Machine dimension | 11000*2200*2600mm |
Machine weight | 9800kg |
