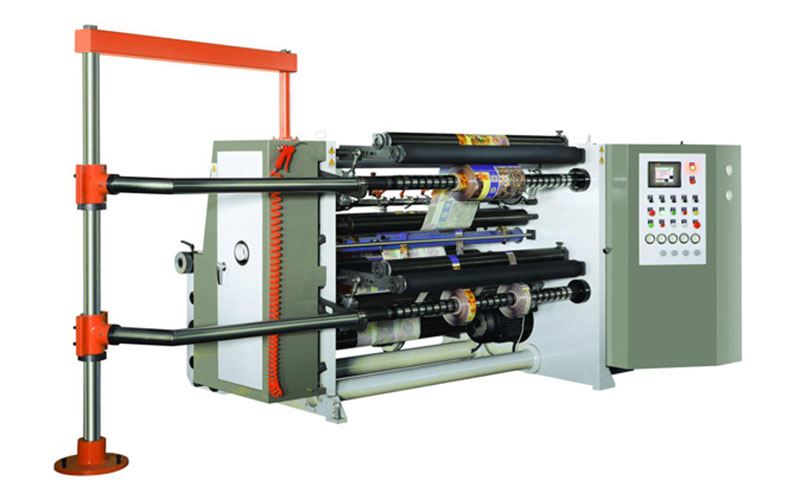

High Speed Horizontal Automatic Slitting Machine
This product has been discontinued and removed from our shelves.
The DFQ-C automatic slitting machine is economical, high speed and versatile converting equipment. It can be used to slit a variety of materials such as reeled films, paper, adhesive sticker, aluminum foils, and more.
Features
1. This automatic slitter comes with high level of automation and flexibility due to an integration of control system and the machine body.
2. Its raw material holder is designed with LPC or EPC deviation control system.
3. The slitting machine applies straight slitting knife. Round knife is optional as per user's demands.
4. Designed with a constant pressure press roll for the rewinding roll, this slitter rewinder features more stable rewinding.
5. Unwinding device adopts cantilevered structure. A discharging tower structure can also be equipped according to user's requirements.
6. The unwinding device of this slitting machine comes with doffing type loading function.
Specification
| Model | DFQ-C1-3 | DFQ-C2-3 | DFQ-C3-3 |
| Max. unwinding diameter | ￠1200mm | ￠1200mm | ￠1200mm |
| Max. rewinding diameter | ￠600mm | ￠600mm | ￠600mm |
| Max. width | 700mm | 700mm | 700mm |
| Min. slitting width | 50mm | 50mm | 50mm |
| Web guiding control | Photocell or Ultrasonic | ||
| Precision | ≤±0.5mm | ≤±0.5mm | ≤±0.5mm |
| Main driven system | Single motor | Double motor | Three motor |
| Control style | PLC + touch screen | PLC + touch screen | PLC + touch screen |
| Tension control style | Taper automatic regulation | ||
| Mechanical speed | 0-250m/min | 0-350m/min | 0-350m/min |
| Unwinding shaft | Air shaft | Air shaft | Air shaft |
| Rewinding shaft | Air shaft | Differential slip shaft | Air shaft or Differential slip shaft |
| Machine weight | About3500kg | About3500kg | About 3500kg |
-
