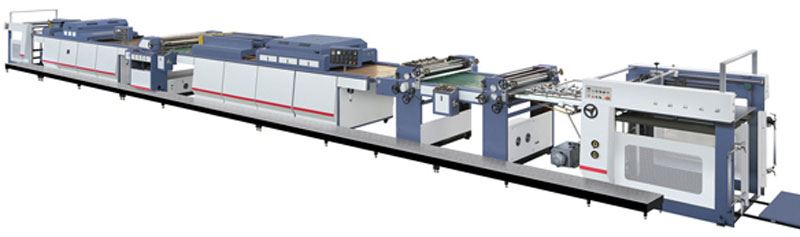

Automatic UV Coating Machine, SGZ-III-1200
This product has been discontinued and removed from our shelves.
1. This type of UV varnishing machine is widely used for varnishing on the surface of various thick and light paper (80~500gsm).
2. The paper processed has improved brightness, better damp-proof and abrasion-resistance capacities, thus protecting colors on the surface of paper.
3. This kind of converting machinery is widely applied to surface treatment of various cards, package boxes, etc., as the ideal post-printing equipment for improving printing quality.
Working Process:
Automatic feeding, brush wheel and electric powder-pressing, water-wash dust-cleaning, paper surface oil coating, IR drying, UV oil coating, UV drying, fan cooling, automatic collecting.
Standard Equipment of Automatic UV Coating Machine
- Auto paper feeder,
- Brush and electric heating dust cleaner
- Water wash dust cleaner
- Oil coating system
- IR drying system
- UV coating system with air scraper (air knife) device
- UV drying system
- Automatic paper collector
- Air compressor (12HP)
Specification
| Model | SGZ-III-1200 |
| Roller length | 1200mm |
| Paper thickness | 80-500gsm |
| Max. paper width | 1150mm |
| Power supply | 380V/3-phase/50Hz |
| Total power | 80kW |
| IR heating power | 22kW |
| UV heating power | 3×8kW or 2×8kW |
| Overall dimension | 22000×2270×1700mm |
| Weight | 7700kg |
- Without air scraper device, particular for thick paper (250-500gsm)
- Oil coating system, special for thick paper (250-500gsm)
- UV coating system with air scraper device, used for both thick and thin paper (80-500gsm)
-
